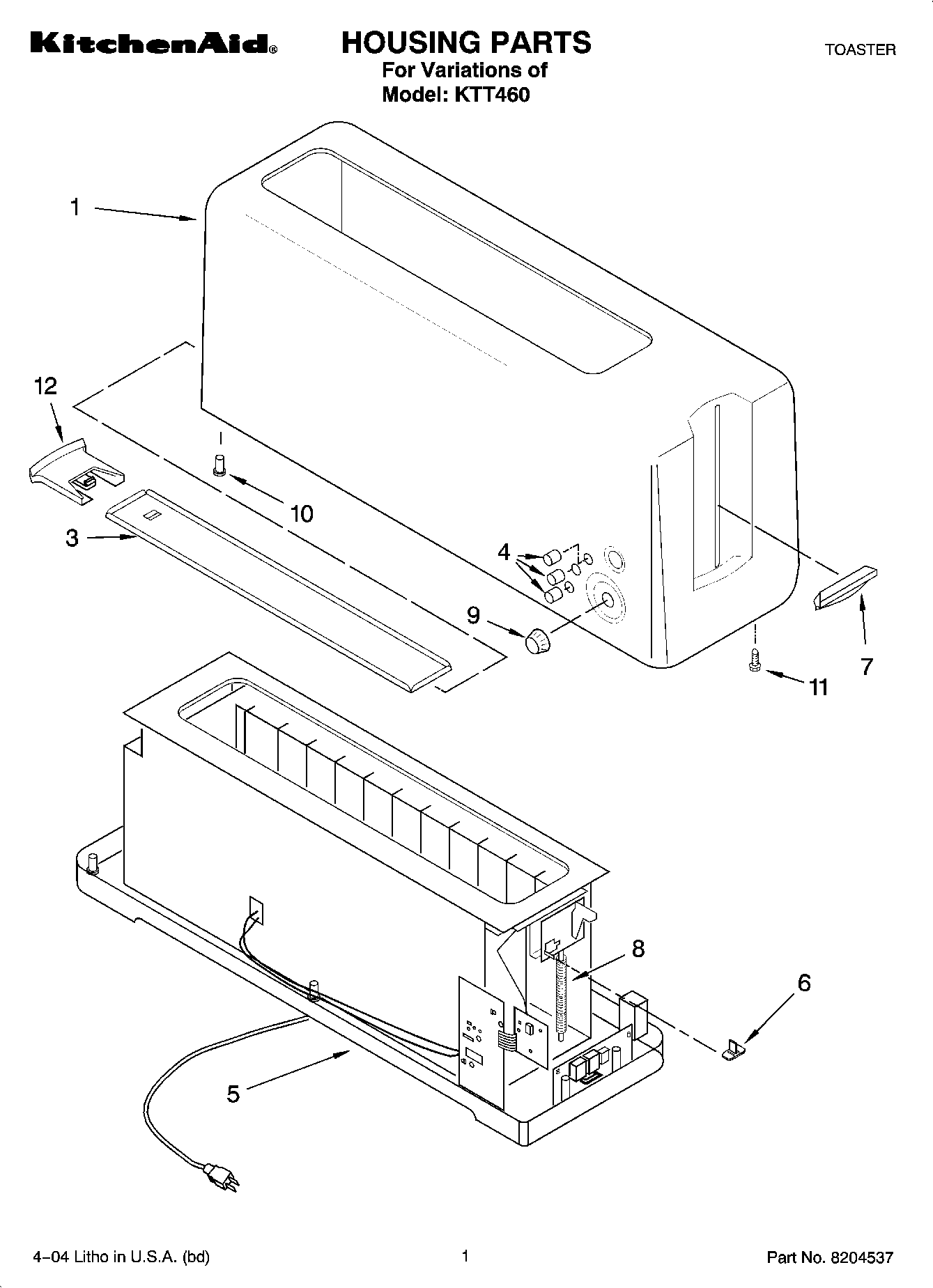

KTT460 01 – HOUSING PARTS

Products

PositionProduct
1Housing, Upper Assembly (Includes Item 4) (Cobalt Blue)
1Housing, Upper Assembly (Includes Item 4) (White)
1Housing, Upper Assembly (Includes Item 4) (Onyx Black)
1Housing, Upper Assembly (Includes Item 4) (Empire Red)
3Tray, Crumb
4Button, Function (Top)
4Button, Function (Bottom)
4Button, Function (Center)
5Base-Core Assembly (Not Serviced)
6Holder, Magnet
7Knob, Toast (Cobalt Blue)
7Knob, Toast (Empire Red)
7Knob, Toast (Onyx Black)
7Knob, Toast (White)
8Spring, Compression
9Knob, Darkness (Cobalt Blue)
9Knob, Darkness (White)
9Knob, Darkness (Onyx Black)
9Knob, Darkness (Empire Red)
10Foot, Rubber
11Screw, Housing
12Handle, Crumb Tray (White)
12Handle, Crumb Tray (Cobalt Blue)
12Handle, Crumb Tray (Onyx Black)
12Handle, Crumb Tray (Empire Red)
12LITERATURE PARTS
12Literature Parts (Guide, Use and Care)
12Literature Parts (List, Repair Parts)
