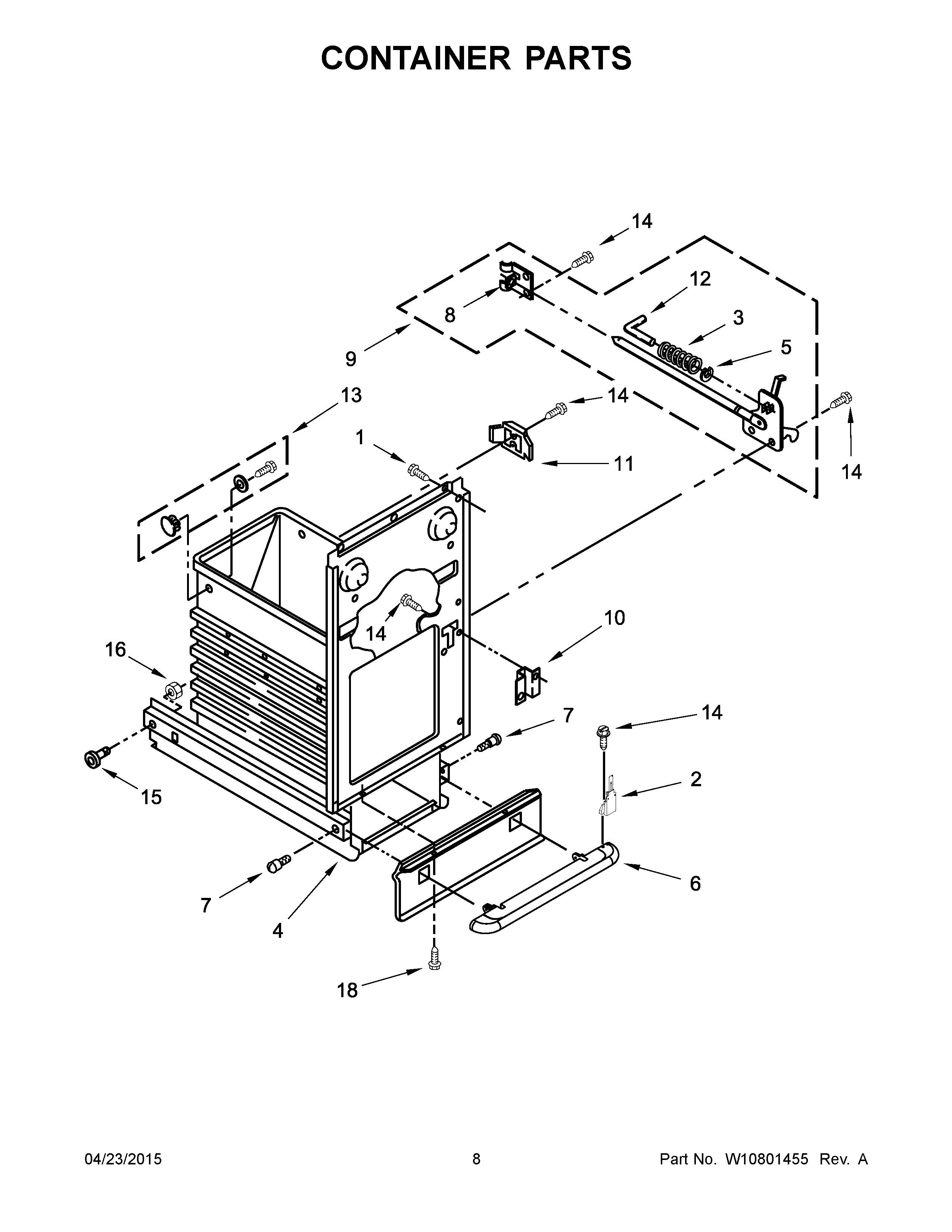

KTTS505EPA0 05 – CONTAINER PARTS

Products

PositionProduct
1WPW10139210 Whirlpool Screw
2WPW10451270 Whirlpool Compactor Actuator
3775736 Whirlpool Compactor Spring
4WPW10451276 Whirlpool Compactor Container
5Ring, “E“
6W11636605 Whirlpool Compactor Foot Pedal
7WP780263 Whirlpool Compactor Screw
8WP776395 Whirlpool Compactor Guide
9675379 Whirlpool Compactor Drawer Latch
10775665 Whirlpool Compactor Plate Latch
119871125 Whirlpool Compactor Actuator
12Pin
13RETAINER, BAG
14WP489478 Whirlpool Refrigerator Screw
15WP9871602 Whirlpool Compactor Bearing
16WP776356 Whirlpool Compactor Nut
17W11696574 Whirlpool Trash Compactor Guard
18WP3196175 Whirlpool Screw
