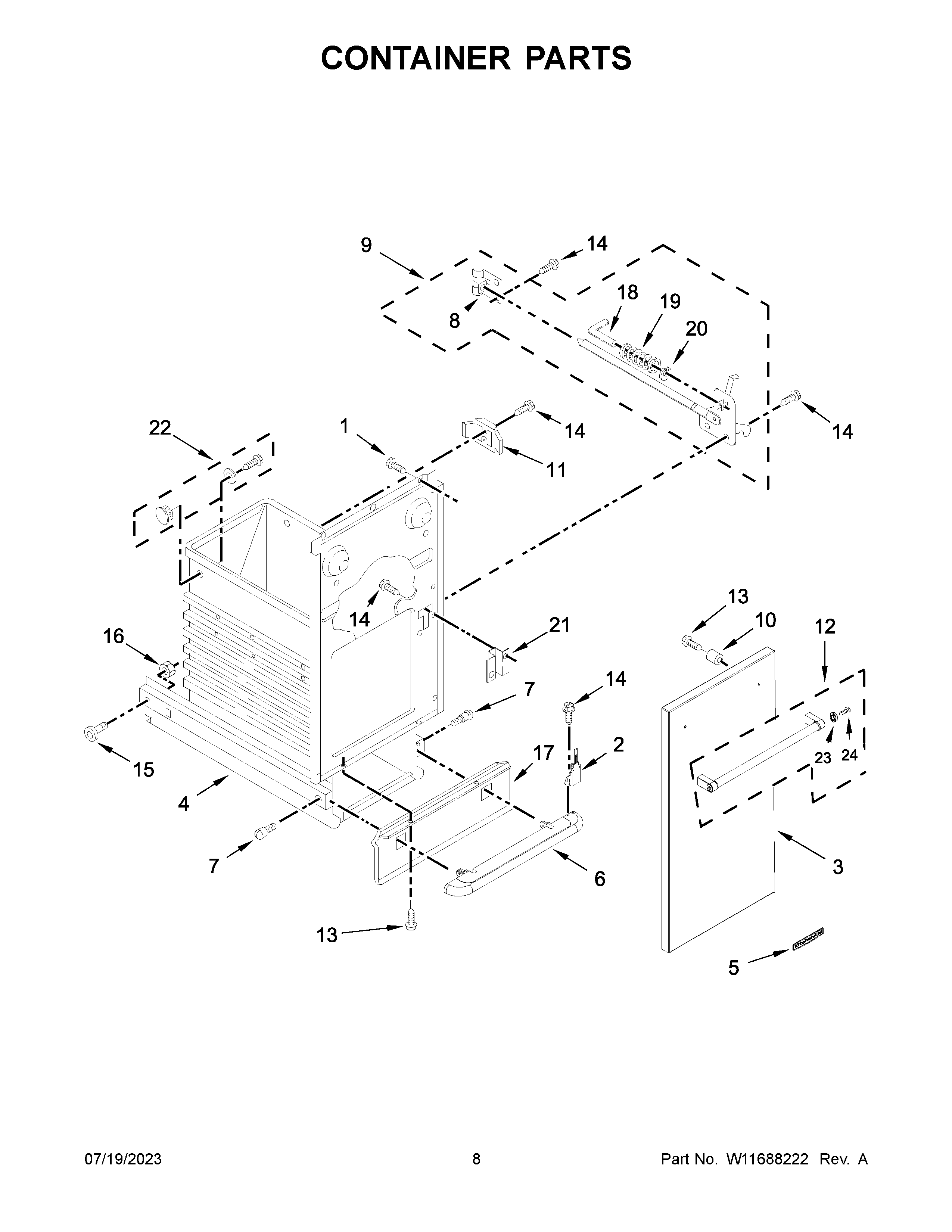

KTTS505ESS2 05 – CONTAINER PARTS

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	WPW10451270 Whirlpool Compactor Actuator
3	W10714558 Whirlpool Compactor Panel
4	WPW10451276 Whirlpool Compactor Container
5	W10909682 Whirlpool Nameplate Tag
6	W11636605 Whirlpool Compactor Foot Pedal
7	WP780263 Whirlpool Compactor Screw
8	WP776395 Whirlpool Compactor Guide
9	675379 Whirlpool Compactor Drawer Latch
10	WP9871563 Whirlpool Compactor Spacer
11	9871125 Whirlpool Compactor Actuator
12	W10896972 Whirlpool Compactor Handle
13	W10661526 Whirlpool Compactor Screw
14	WP489478 Whirlpool Refrigerator Screw
15	WP9871602 Whirlpool Compactor Bearing
16	WP776356 Whirlpool Compactor Nut
17	W11696574 Whirlpool Trash Compactor Guard
18	Pin
19	775736 Whirlpool Compactor Spring
20	Ring, ``E``
21	775665 Whirlpool Compactor Plate Latch
22	RETAINER, BAG
23	W10846207 Whirlpool KA Handle MEDALLIONS-RED
24	W10920281 Whirlpool Screw
