KU1550VP0 05 – PANEL AND CONTROL

KU1550VP0 05 – PANEL AND CONTROL

Written by

in

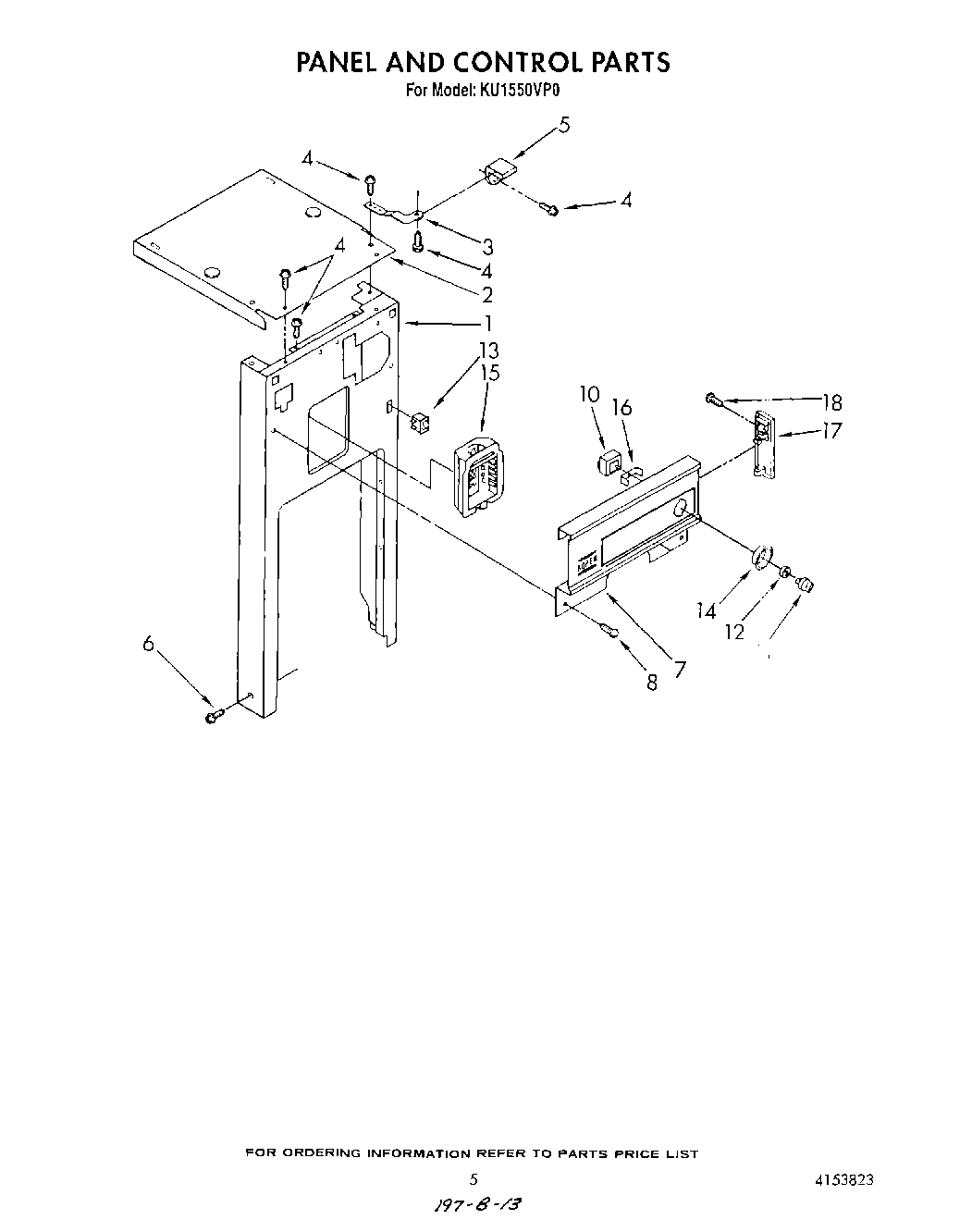

KU1550VP0 05 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14Bezel
15Holder, Deodorant Storage
16Bracket, Switch
17End Cap, L.H.
17End Cap, R.H.
