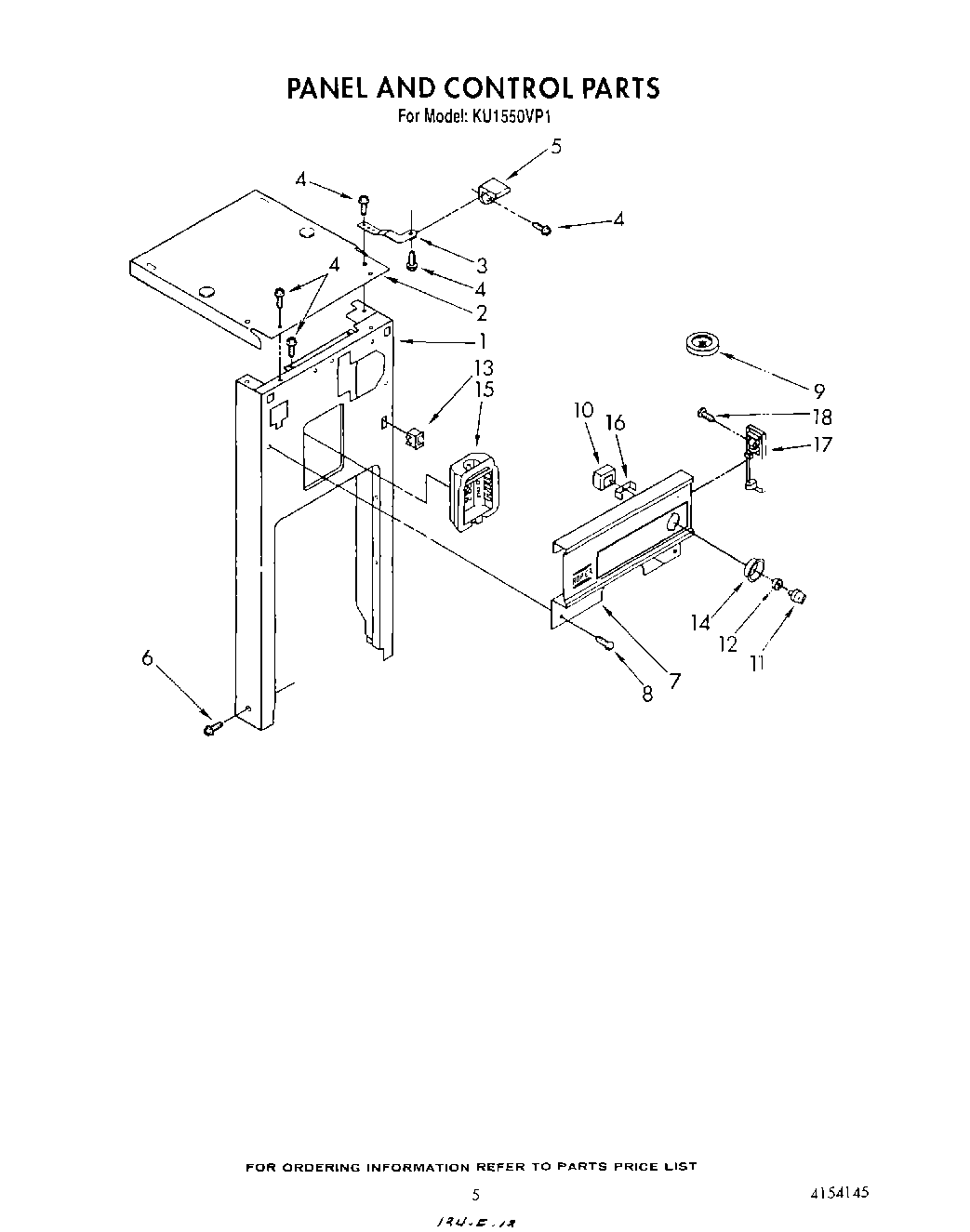

KU1550VP1 05 – PANEL AND CONTROL

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	WP302868 Whirlpool Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control
8	Screw, 6-20 x 3/8 (2)
9	Deodorizer, Solid Stick-Ups (2-Pack)
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	776594 Whirlpool Power Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	WP4387911 Whirlpool Refrigerator Switch
14	Bezel
15	Holder, Deodorant Storage
16	Bracket, Switch
17	End Cap, R.H.
17	End Cap, L.H.
