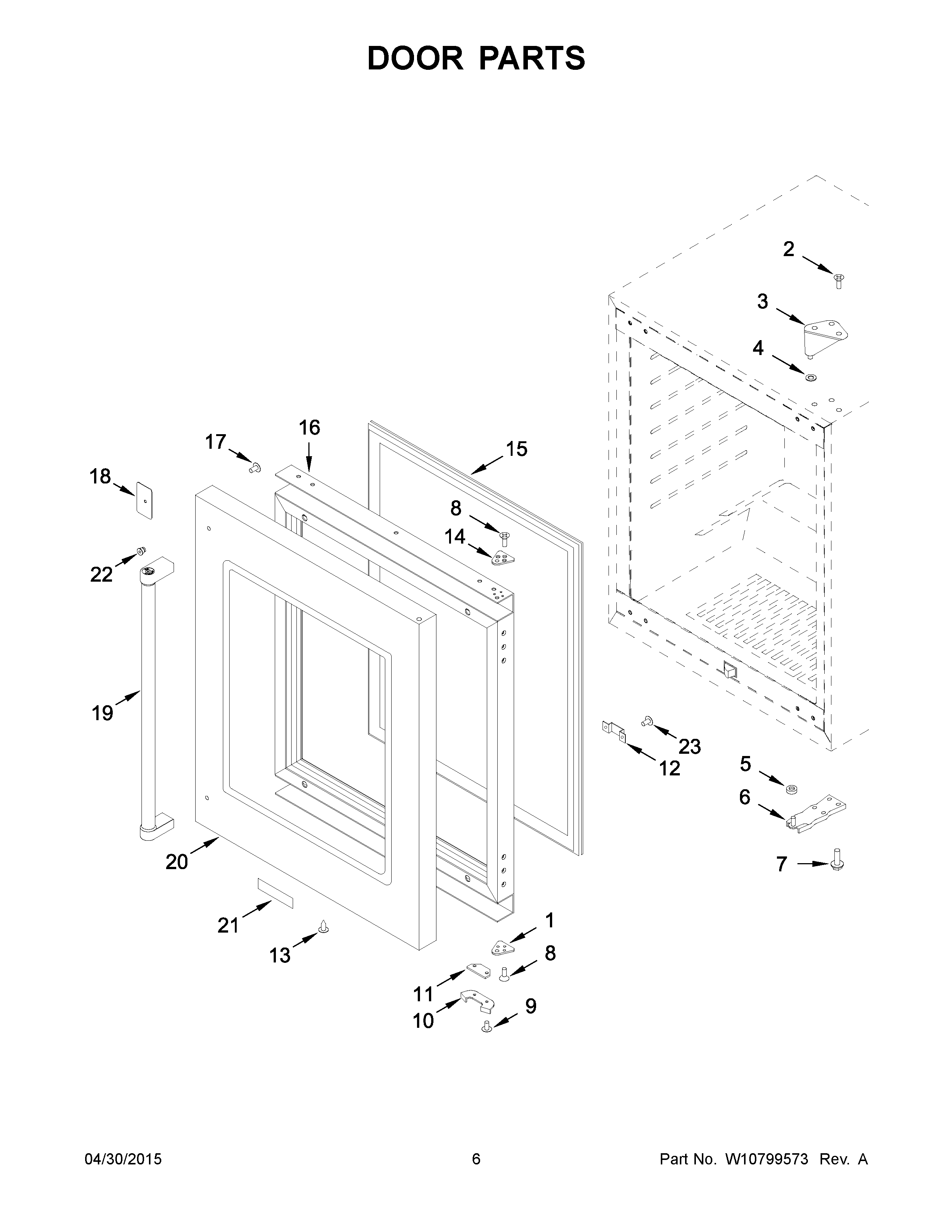

KUBL204ESB00 04 – DOOR PARTS
Written by
in
KUBL204ESB00 04 – DOOR PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
OVERLAY INSTALLATION PARTS
1
4344756 Whirlpool Refrigerator Spacer
2
4344796 Whirlpool Refrigerator Screw
3
4344754 Whirlpool Refrigerator Door Hinge
4
4344760 Whirlpool Refrigerator Washer
5
W11241702 Whirlpool Refrigerator Washer
6A
4344787 Whirlpool Refrigerator Door Hinge
6
W10239363 Whirlpool Refrigerator Door Hinge
7
W10780355 Whirlpool Refrigerator Screw
8
W10243123 Whirlpool Refrigerator Screw
9
4344801 Whirlpool Refrigerator Screw
10
4344758 Whirlpool Refrigerator Bracket
11
4344788 Whirlpool Refrigerator Spacer
12
SWITCH PLATE
13
W10837731 Whirlpool Screw Assembly
14
4344755 Whirlpool Refrigerator Spacer
15
W11625076 Whirlpool Refrigerator Gasket
16A
W11431828 Whirlpool Refrigerator Door
16
W11431200 Whirlpool Refrigerator Door
17
W10859467 Whirlpool Refrigerator Screw
18
W11263339 Whirlpool Refrigerator Plate
19
W11497229 Whirlpool Refrigerator Handle
20
W11164089 Whirlpool Refrigerator FRT Drawer
20A
W10797360 Whirlpool Refrigerator Front Drawer
21
W11179312 Whirlpool Refrigerator Nameplate
22
W11179356 Whirlpool Refrigerator Stud Handle
23
W10319187 Whirlpool Refrigerator Screw
←
