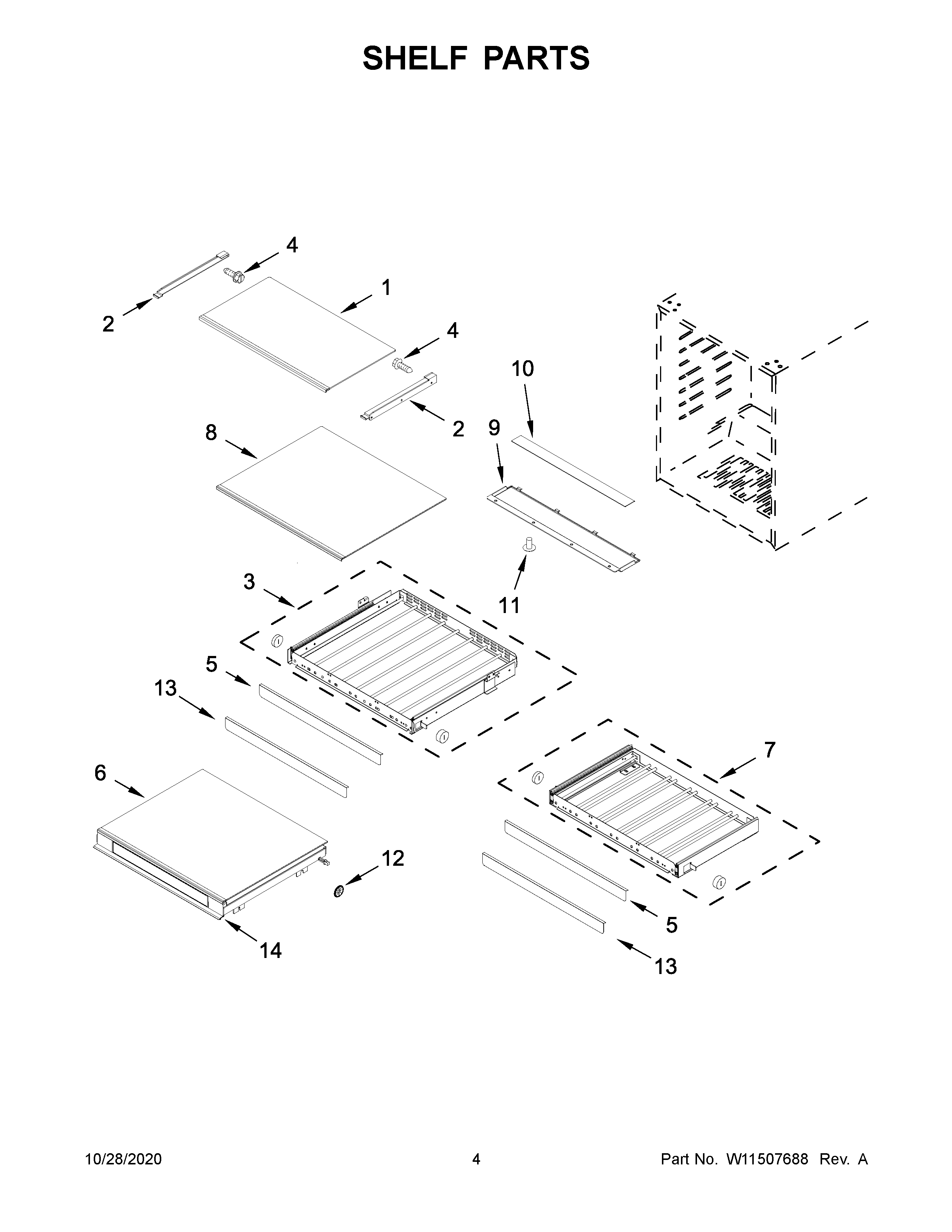

KUBL204ESB01 03 – SHELF PARTS

KUBL204ESB01 03 – SHELF PARTS

Written by

in

KUBL204ESB01 03 – SHELF PARTS

Products

PositionProduct
1W10807583 Whirlpool Refrigerator Glass Shelf
2AW10797332 Whirlpool Refrigerator Support
2W10797333 Whirlpool Refrigerator Support
3W10803969 Whirlpool Refrigerator Wine Shelf
3ATOP WINE RACK ASSEMBLY (RIGHT HINGE)
4W10319187 Whirlpool Refrigerator Screw
5W10803983 Whirlpool Refrigerator Shelf Trim
6W11522060 Whirlpool Refrigerator Electronic Control Board
7W10803971 Whirlpool Refrigerator Wine Shelf
8GLASS SHELF ASSEMBLY, BOTTOM
9W10622774 Whirlpool Refrigerator Light Lens
10W11441723 Whirlpool Refrigerator Light
11W10204808 Whirlpool Refrigerator Screw
12W10621514 Whirlpool Refrigerator Temperature Control Pad
13W11506482 Whirlpool Shelf Trim
14W11506424 Whirlpool Seal
