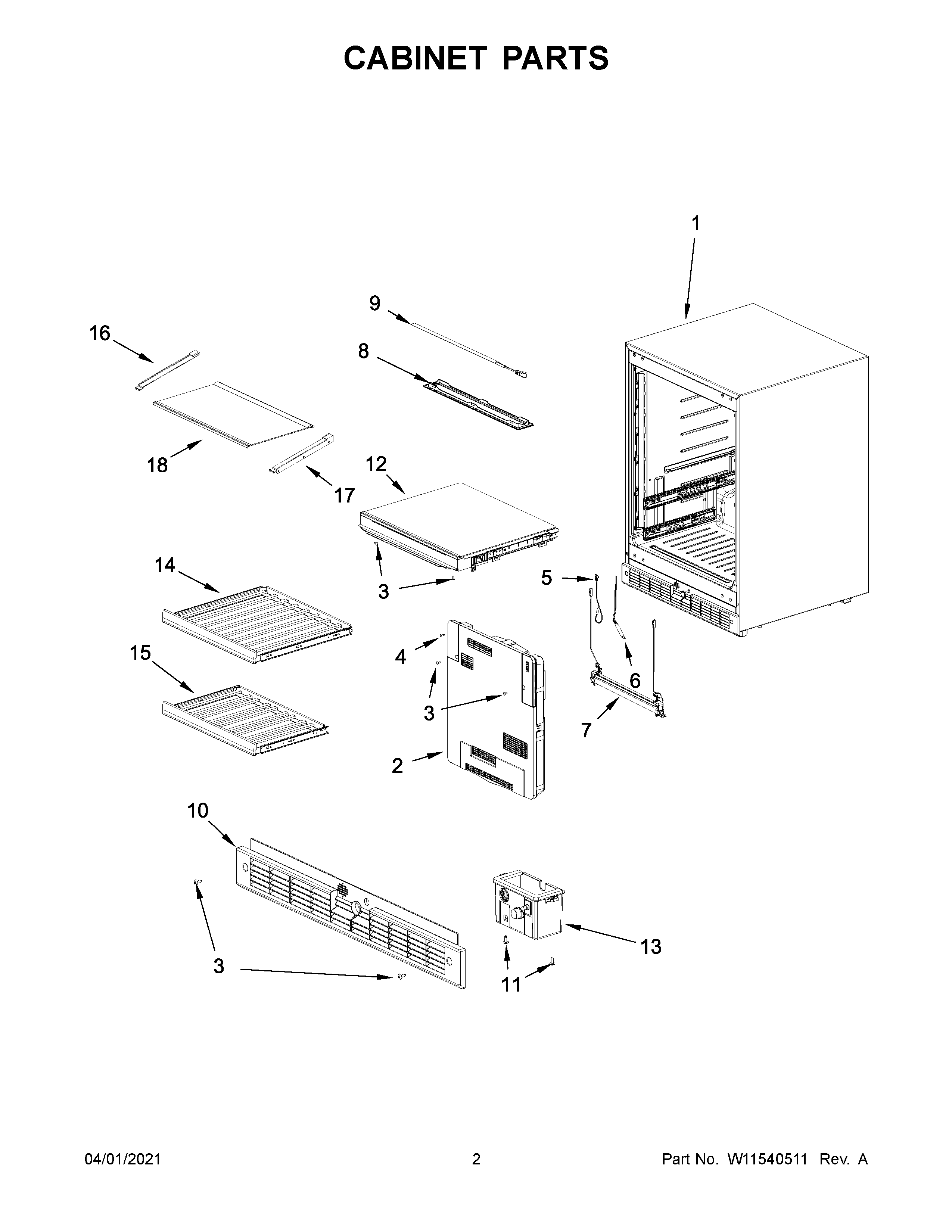

KUBL214KPA00 02 – CABINET PARTS

KUBL214KPA00 02 – CABINET PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11532990 Whirlpool Evaporator Cover
3W11675284 Whirlpool Screw
4W11375760 Whirlpool Refrigerator Screw
5W11266076 Whirlpool Thermistor
6W11359415 Whirlpool Bi-metal Defrost
7W11359416 Whirlpool Heater
8W11312450 Whirlpool Light Lens
9W11497301 Whirlpool Refrigerator Light Bulb
10W11360218 Whirlpool Grille
11W11371097 Whirlpool Screw
12W11537984 Whirlpool Ice Door
13W11359433 Whirlpool Cover
14W11532969 Whirlpool Wine Shelf
15LOWER, WINE RACK
16W10797332 Whirlpool Refrigerator Support
17W10797333 Whirlpool Refrigerator Support
18W11547158 Whirlpool Tray Assembly
