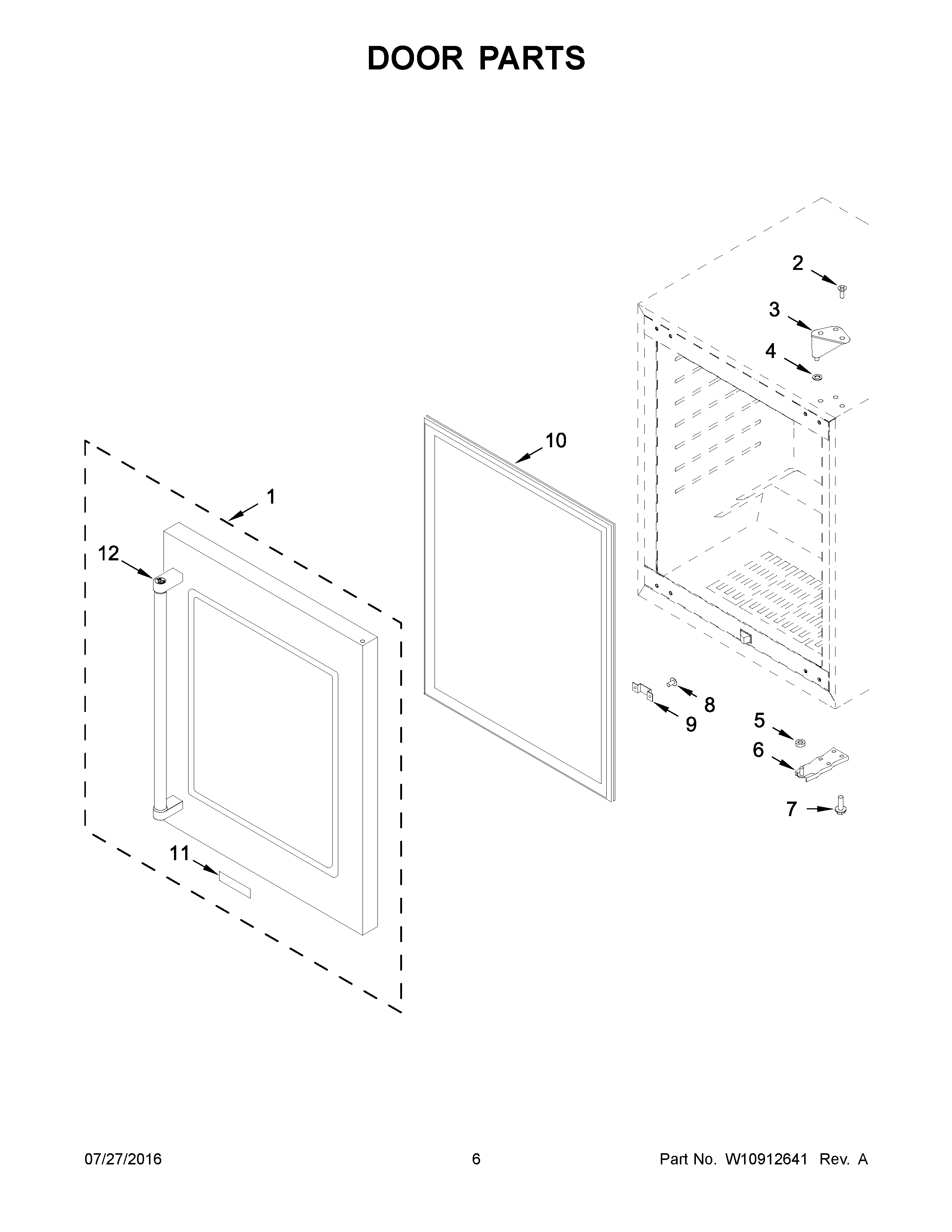

KUBL304EBS00 04 – DOOR PARTS

KUBL304EBS00 04 – DOOR PARTS

Written by

in

KUBL304EBS00 04 – DOOR PARTS

Products

PositionProduct
1AW10913038 Whirlpool Refrigerator Door
1W11632845 Whirlpool Refrigerator Door
2SCREW
3W10913035 Whirlpool Refrigerator Door Hinge
44344760 Whirlpool Refrigerator Washer
5W11241702 Whirlpool Refrigerator Washer
6W10239363 Whirlpool Refrigerator Door Hinge
6A4344787 Whirlpool Refrigerator Door Hinge
7W10780355 Whirlpool Refrigerator Screw
8W10319187 Whirlpool Refrigerator Screw
9SWITCH PLATE
10W11625076 Whirlpool Refrigerator Gasket
11W11179312 Whirlpool Refrigerator Nameplate
12CABINET (NOT A SERVICEABLE PART)
