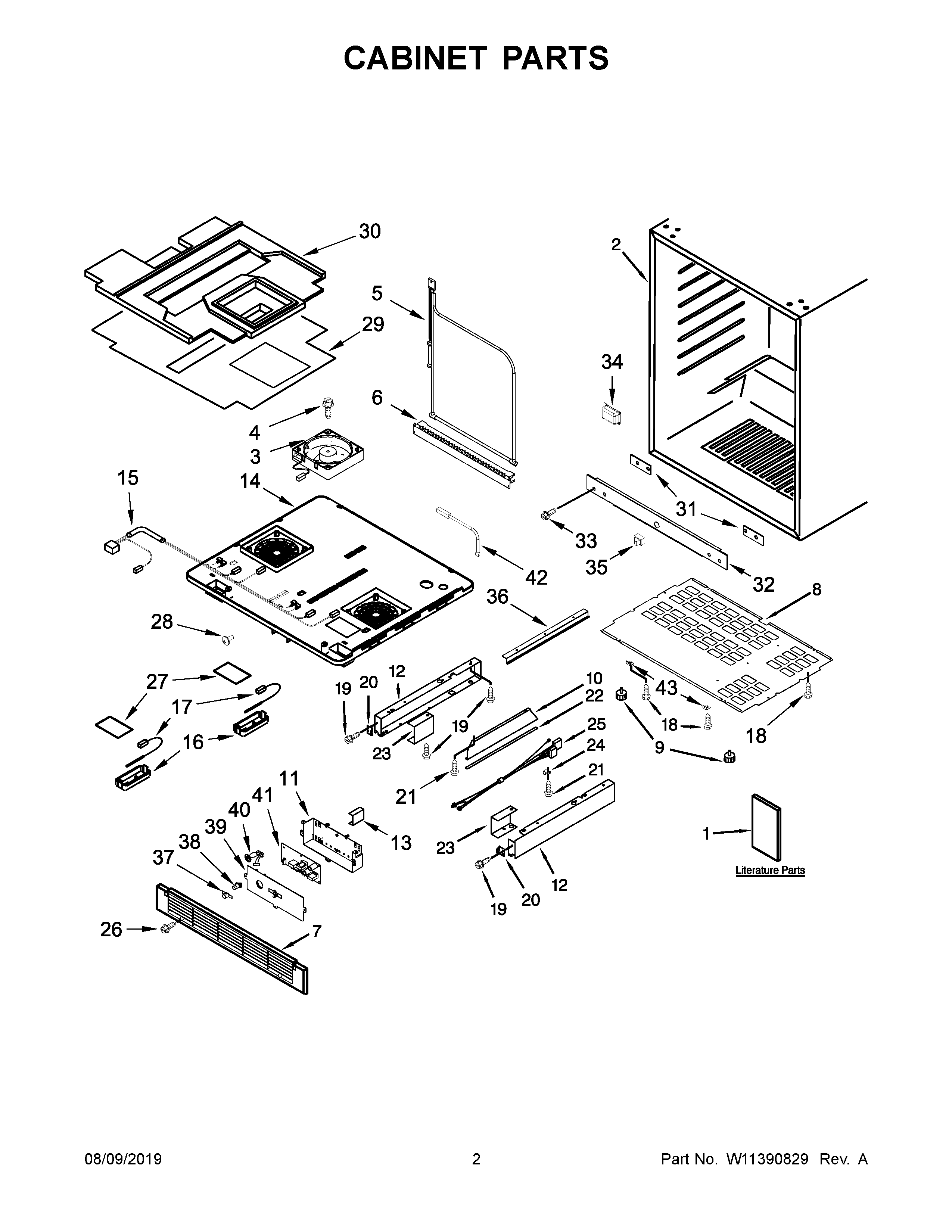

KUBL304EBS01 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	ENERGY GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	W10854409 Whirlpool Refrigerator Evaporator Motor
4	W10205061 Whirlpool Screw Assembly
5	W10292475 Whirlpool Refrigerator Defrost Bimetal
6	4344747 Whirlpool Refrigerator Shield
7	W10780351 Whirlpool Refrigerator Grille
8	W10772863 Whirlpool Refrigerator Cabinet Base
9	W11106296 Whirlpool Refrigerator Leveler
10	W10778959 Whirlpool Cabinet Base
11	W10772866 Whirlpool Refrigerator Control Box
12	W10797389 Whirlpool Refrigerator Support
12A	W10797388 Whirlpool Refrigerator Support
13	BRACKET, PCB
14	W10802010 Whirlpool Refrigerator Evaporator Cover
15	W10780364 Whirlpool Refrigerator Wire Harness
16	SENSOR CASE
17	W11238391 Whirlpool Refrigerator Thermistor
18	4344826 Whirlpool Refrigerator Screw
19	W10780355 Whirlpool Refrigerator Screw
20	W10204640 Whirlpool Refrigerator Clip
21	SCREW
22	4344823 Whirlpool Refrigerator Seal
23	4344821 Whirlpool Refrigerator Support
23A	4344820 Whirlpool Refrigerator Support
24	CLAMP, CORD
25	W10772870 Whirlpool Refrigerator Wire Harness
26	W10319184 Whirlpool Refrigerator Screw
27	W10204948 Whirlpool Refrigerator Control Box
28	SCREW
29	W10802014 Whirlpool Refrigerator Cabinet Base
30	W10802011 Whirlpool Refrigerator Sealer
31	SPACER, FRAME FRONT
32	FRAME FRONT, BOTTOM
33	W10780349 Whirlpool Refrigerator Screw
34	COVER
35	W10721454 Whirlpool Refrigerator Switch
36	W10204674 Whirlpool Refrigerator Baffle
37	W10797391 Whirlpool Refrigerator Cover
38	W10780359 Whirlpool Refrigerator Sensor
39	W10772869 Whirlpool Refrigerator Cover
40	W10780358 Whirlpool Refrigerator Speaker
41	W10807595-includeCORE Whirlpool W10807595 Refrigerator Electronic Control Board + Core
42	W11573590 Whirlpool Refrigerator Thermistor
43	W10239388 Whirlpool Brace
