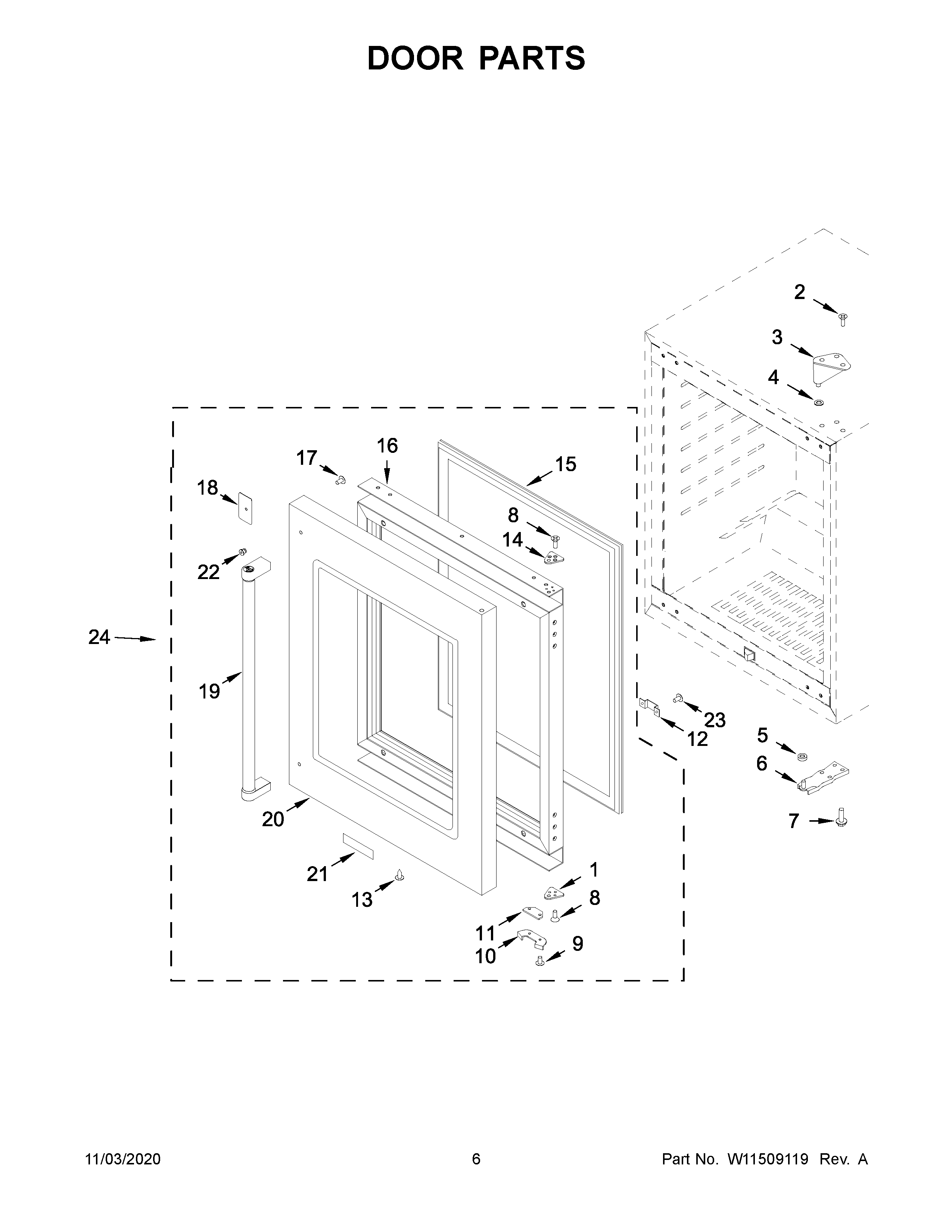

KUBL304EBS02 04 – DOOR PARTS

Products

Position	Product
1	4344756 Whirlpool Refrigerator Spacer
2	4344796 Whirlpool Refrigerator Screw
3	4344754 Whirlpool Refrigerator Door Hinge
4	4344760 Whirlpool Refrigerator Washer
5	W11241702 Whirlpool Refrigerator Washer
6A	4344787 Whirlpool Refrigerator Door Hinge
6	W10239363 Whirlpool Refrigerator Door Hinge
7	W10780355 Whirlpool Refrigerator Screw
8	W10243123 Whirlpool Refrigerator Screw
9	4344801 Whirlpool Refrigerator Screw
10	4344758 Whirlpool Refrigerator Bracket
11	4344788 Whirlpool Refrigerator Spacer
12	SWITCH PLATE
13	W10837731 Whirlpool Screw Assembly
14	SPACER, TOP HINGE
15	W11625076 Whirlpool Refrigerator Gasket
16	DOOR ASSEMBLY (RIGHT HAND)
16A	DOOR ASSEMBLY (LEFT HAND)
17	W10859467 Whirlpool Refrigerator Screw
18	W11263339 Whirlpool Refrigerator Plate
19	W11497229 Whirlpool Refrigerator Handle
20A	BLACK STAINLESS WRAP (LEFT HAND)
20	BLACK STAINLESS WRAP (RIGHT HAND)
21	W11179312 Whirlpool Refrigerator Nameplate
22	W11179356 Whirlpool Refrigerator Stud Handle
23	W10319187 Whirlpool Refrigerator Screw
24	W11632845 Whirlpool Refrigerator Door
24A	W10913038 Whirlpool Refrigerator Door
