KUBL304ESS01 03 – SHELF PARTS
Written by
in

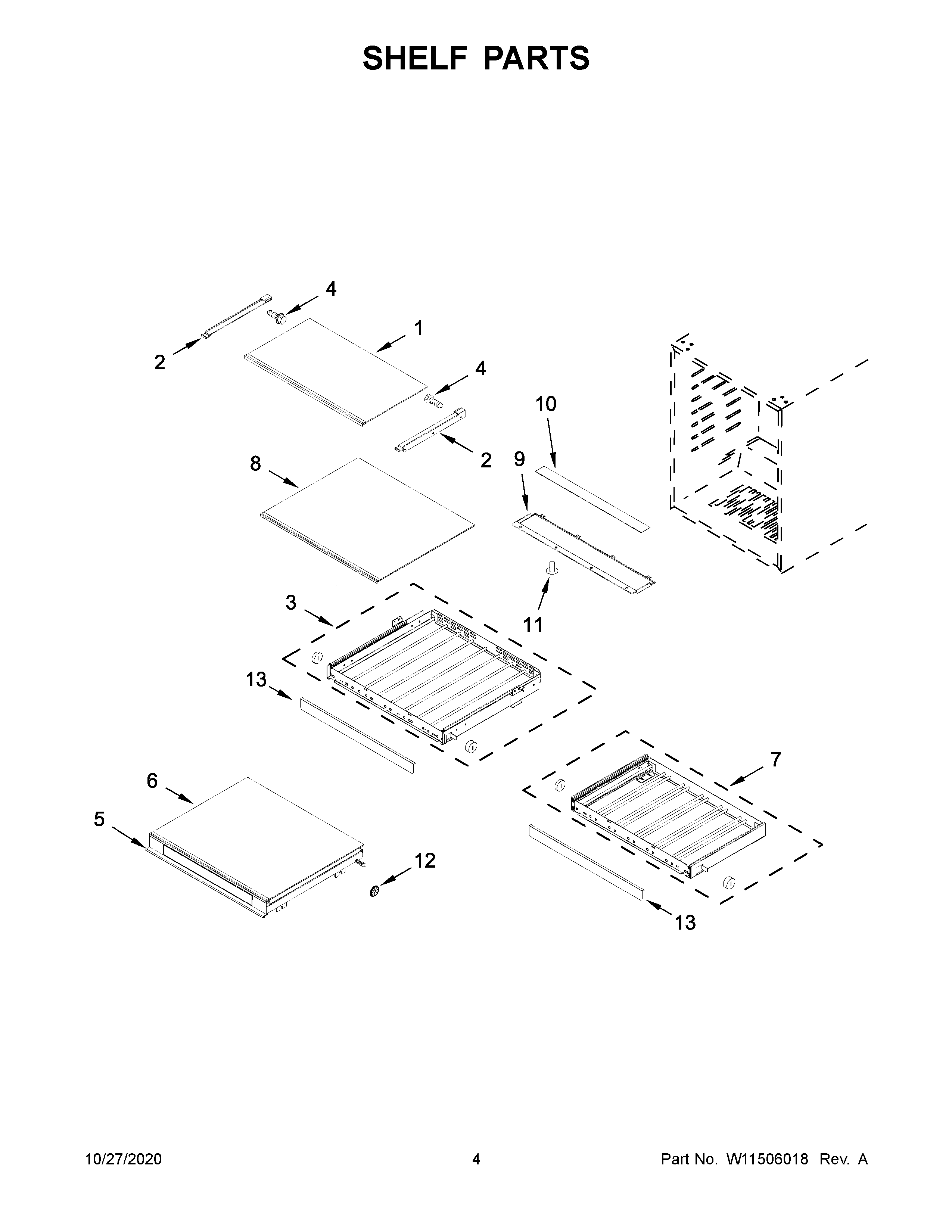

KUBL304ESS01 03 – SHELF PARTS
Products
Position
Product
1
W10808106 Whirlpool Refrigerator Glass Shelf
2A
W10797332 Whirlpool Refrigerator Support
2
W10797333 Whirlpool Refrigerator Support
3
W10803969 Whirlpool Refrigerator Wine Shelf
3A
TOP WINE RACK ASSEMBLY (RIGHT HINGE)
4
W10319187 Whirlpool Refrigerator Screw
5
W11506424 Whirlpool Seal
6
W11522060 Whirlpool Refrigerator Electronic Control Board
7
W10803971 Whirlpool Refrigerator Wine Shelf
8
W10808107 Whirlpool Refrigerator Glass Shelf
9
W10622774 Whirlpool Refrigerator Light Lens
10
W11441723 Whirlpool Refrigerator Light
11
W10204808 Whirlpool Refrigerator Screw
12
W10621514 Whirlpool Refrigerator Temperature Control Pad
13
W11506482 Whirlpool Shelf Trim
←
