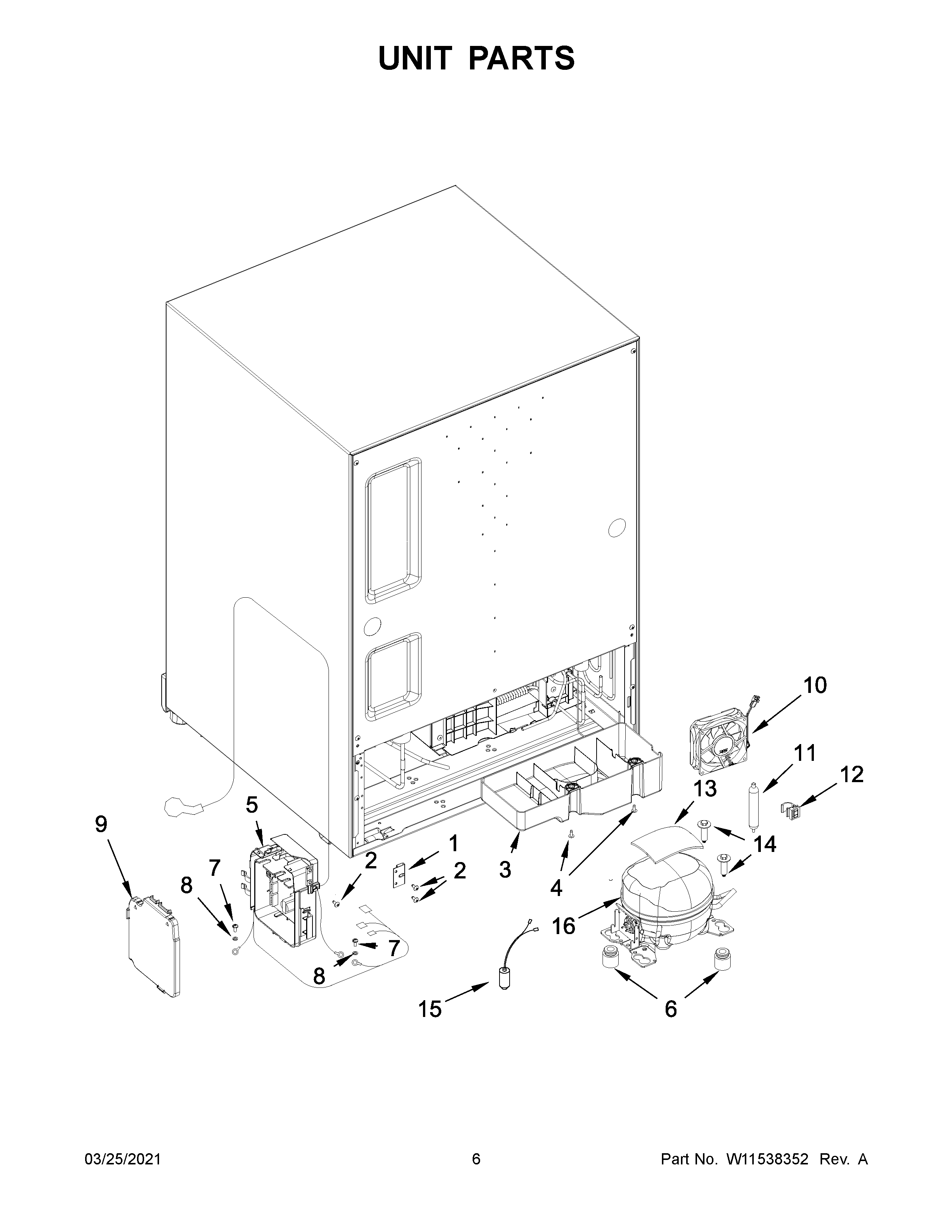

KUBR314KBS00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	CLAMP, CORD
2	W11371097 Whirlpool Screw
3	PAN, WATER
4	SCREW
5	BOX, PCB
6	WP4344779 Whirlpool Refrigerator Grommet
7	4344826 Whirlpool Refrigerator Screw
8	W11266077 Whirlpool Washer
9	W11313206 Whirlpool Refrigerator Cover
10	W11360536 Whirlpool Refrigerator Evaporator Motor
11	W10163273 Whirlpool Refrigerator Tube
12	CLAMP
13	COMPRESSOR, RUBBER
14	W10772873 Whirlpool Screw
15	CAPACITOR
16	COMPRESSOR
