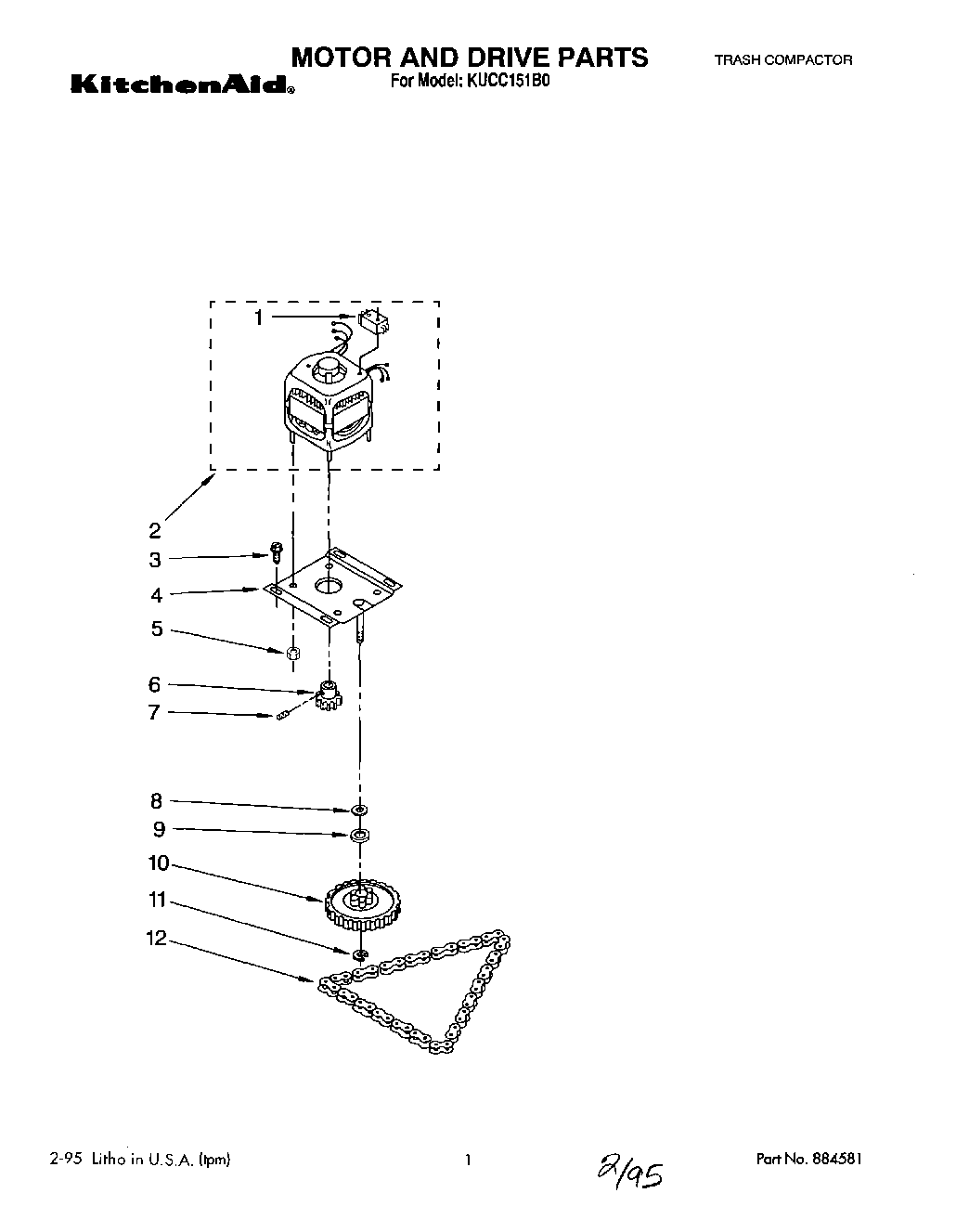

KUCC151B0 01 – MOTOR AND DRIVE, LITERATURE

KUCC151B0 01 – MOTOR AND DRIVE, LITERATURE

Written by

in

KUCC151B0 01 – MOTOR AND DRIVE, LITERATURE

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
Sheet, Tech
Wiring Diagram
1W10439651 Whirlpool Air Conditioner Motor Drive
3Screw. 1/4-20 x 1/2 (4)
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
129870118A Whirlpool Compactor Bracket Kit
12CHAIN-DRVE
12Harness, Wiring
