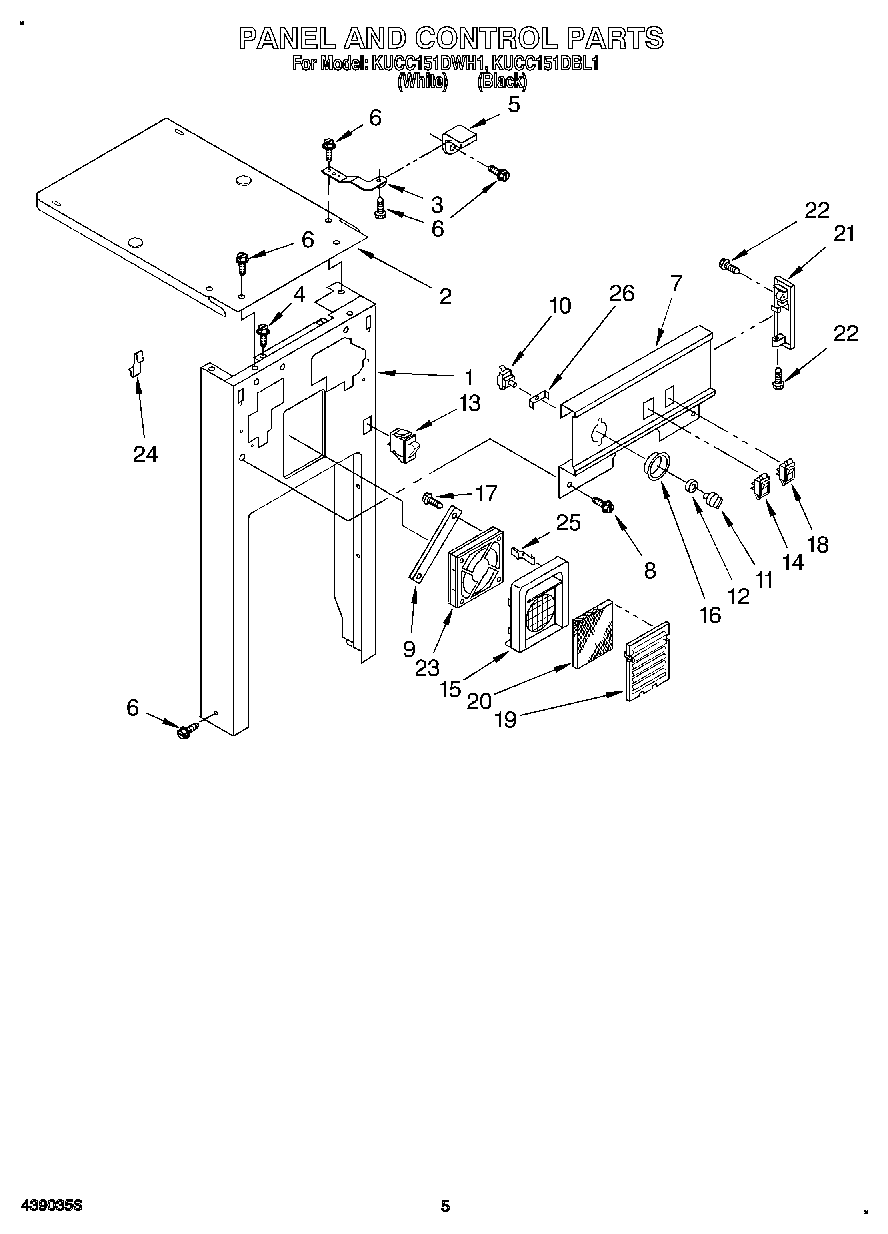

KUCC151DBL1 05 – PANEL AND CONTROL

Products

PositionProduct
19871073 Whirlpool Compactor Panel
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control (White)
7Escutcheon, Control (Black)
8Screw, 6-20 x 3/8 (2)
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11WP9871799 Whirlpool Compactor Switch Knob
11WP9871800 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14WP9872161 Whirlpool Compactor Switch Off
159871893 Whirlpool Compactor Fan Filter
16Bezel
16Bezel (White)
17WP3351614 Whirlpool Screw
18Switch, Air Freshener (Black)
18Switch, Air Freshener (White)
19WP9871099 Whirlpool Air Freshener Cover
19Cover, Air Freshener (White)
20WP4151750 Whirlpool Charcoal Air Filter
21End Cap (White, LH)
21End Cap, Left Hand (White)
21End Cap, Left Hand (Black Right Hand)
21End Cap, Left Hand (Black)
254151897 Whirlpool Compactor Clip
26Bracket, Switch
