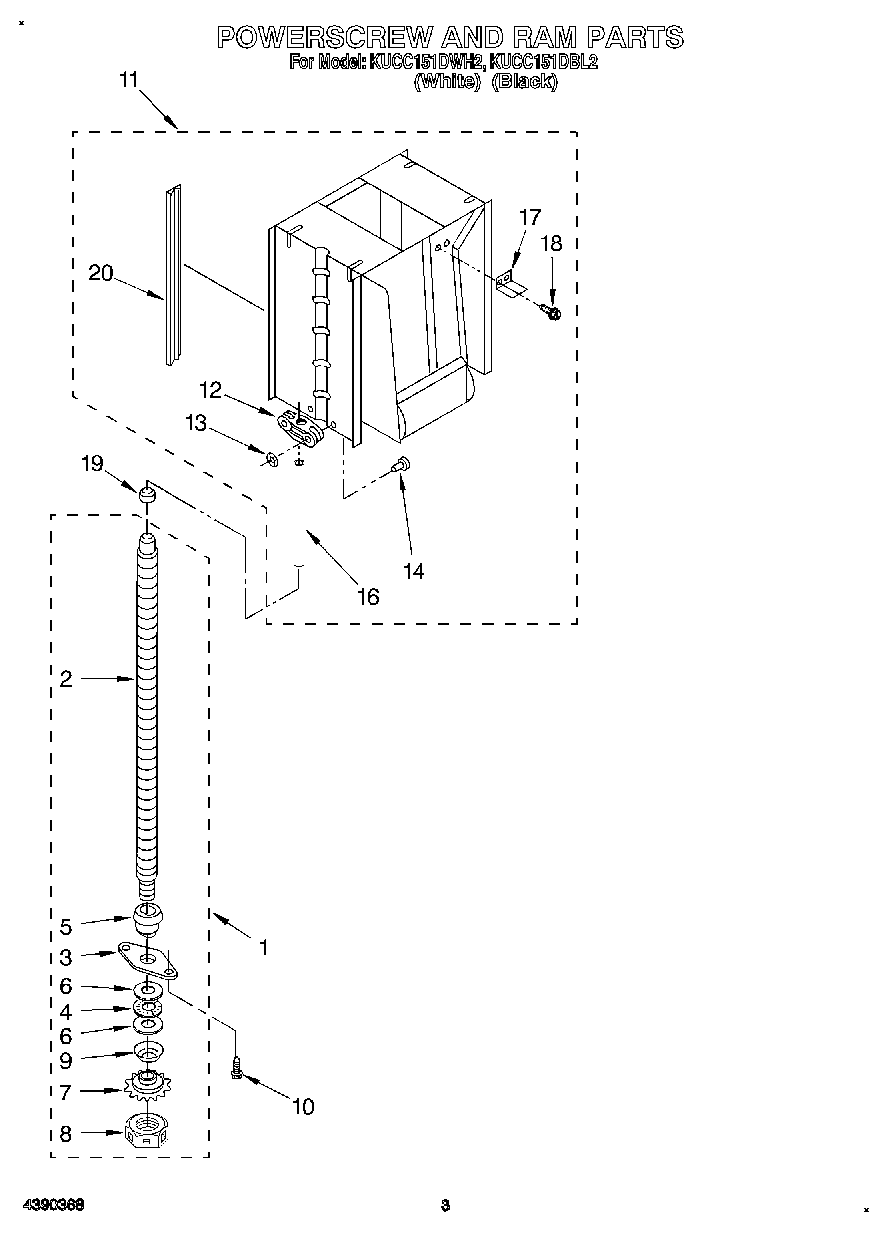

KUCC151DBL2 03 – POWERSCREW AND RAM

KUCC151DBL2 03 – POWERSCREW AND RAM

Written by

in

KUCC151DBL2 03 – POWERSCREW AND RAM

Products

PositionProduct
1WPW10451272 Whirlpool Trash Compactor Power Screw
2Screw, Power (Available Only As Complete Assembly)
3779121 Whirlpool Compactor Plate
4W10917043 Whirlpool Compactor Bearing
5776941 Whirlpool Compactor Power Crew Hub
6775481 Whirlpool Compactor Bearing
7SPROCKET
84154842 Whirlpool Compactor Nut
9WP777332 Whirlpool Compactor Washer
10Screw, 1/4-20 x 3/4 (4)
11W11696573 Whirlpool Ram
12WP9870163 Whirlpool Compactor Trunnion Nut
13WP90296 Whirlpool Clip
14882694 Whirlpool Compactor Stud
16WP9870037 Whirlpool Ram Stop
17Bracket, Top Limit Switch
18WP3351614 Whirlpool Screw
19WP9870775 Whirlpool Compactor Power Screw Cap
20W10917246 Whirlpool Compactor RAM Slide
