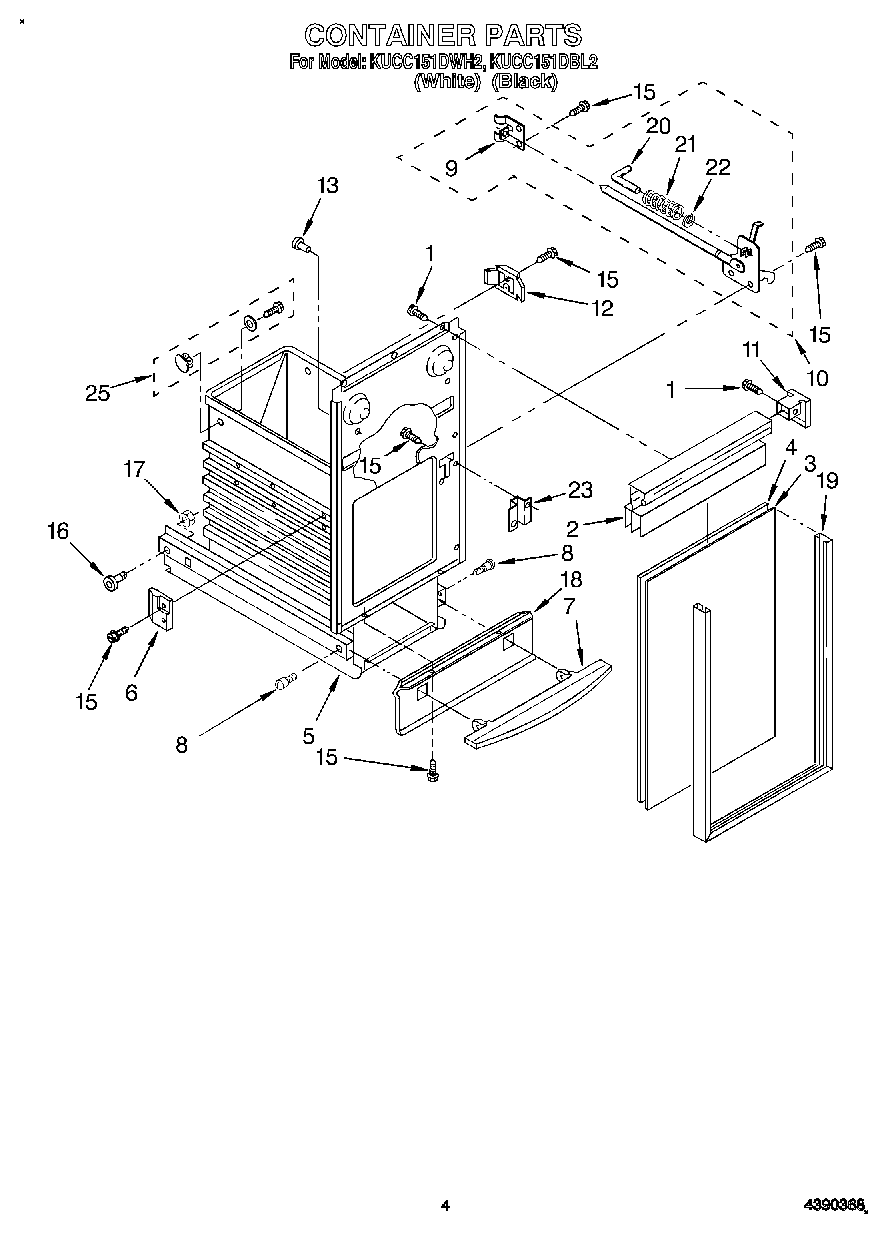

KUCC151DBL2 04 – CONTAINER

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	Handle, Container (Black)
2	Handle, Container (White)
3	Panel, Container (White & Black)
3	Panel, Container (Black And Almond)
4	Panel, Spacer
5	WPW10451276 Whirlpool Compactor Container
6	Guide, Container (2)
7	W11679165 Whirlpool Foot Pedal
7	WP9871031 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	End Cap, Handle Left Hand (White)
11	End Cap, Handle Left Hand (Black Right Hand)
11	End Cap, Handle (White, LH)
11	End Cap, Handle Left Hand (Black)
12	9871125 Whirlpool Compactor Actuator
13	Bumper, Container (2)
15	WP489069 Whirlpool Compactor Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	W10917704 Whirlpool Compactor Guard
18	WP777328 Whirlpool Compactor Guard
19	Trim, Container (Front) (White)
19	Trim, Container (Front) (Black)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
23	775665 Whirlpool Compactor Plate Latch
25	RETAINER, BAG
