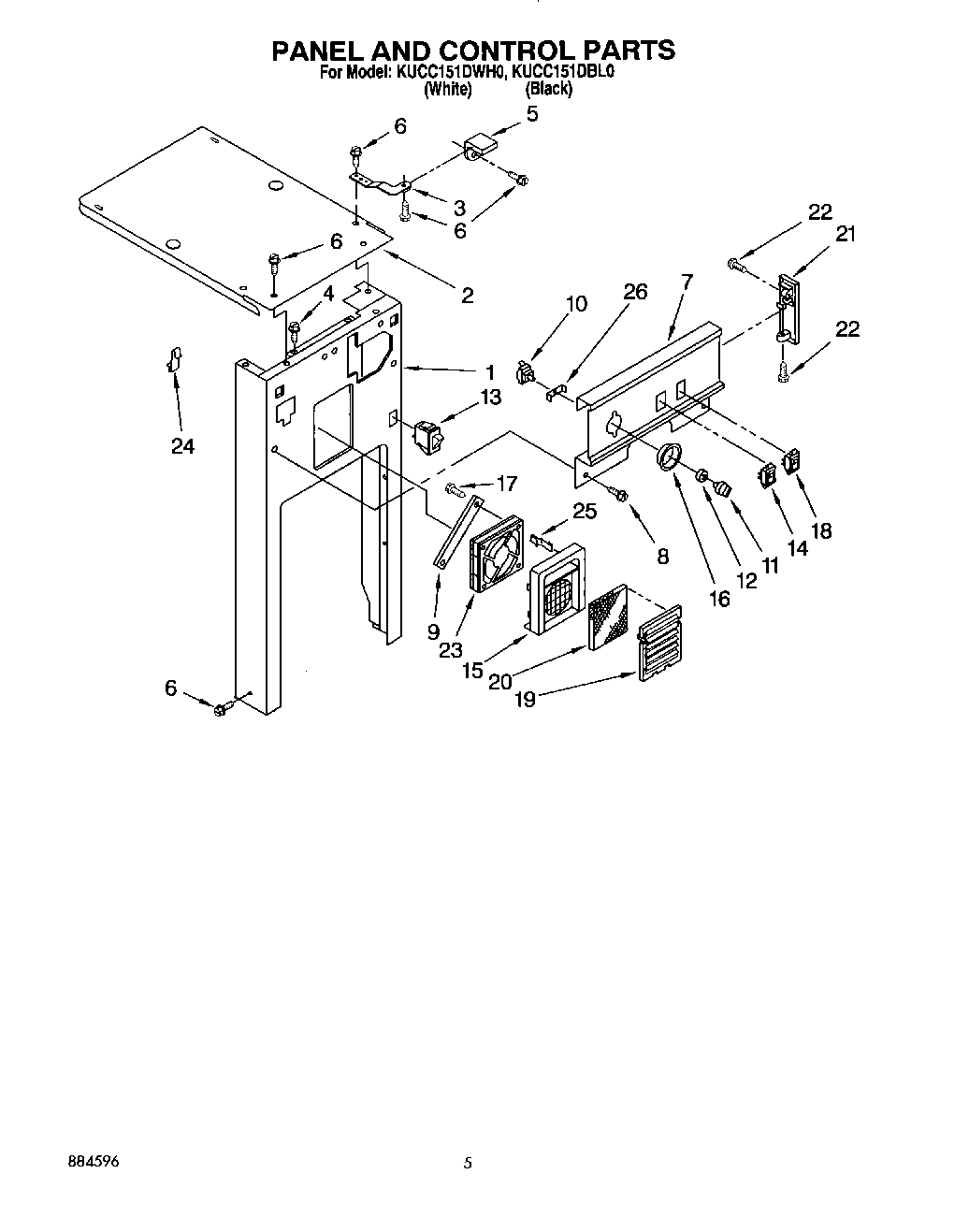

KUCC151DWH0 05 – PANEL AND CONTROL

Written by

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control (Black)
7	Escutcheon, Control (White)
8	Screw, 6-20 x 3/8 (2)
9	4152703 Whirlpool Fan Strap
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	WP9871800 Whirlpool Compactor Switch Knob
11	WP9871799 Whirlpool Compactor Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	WP4387911 Whirlpool Refrigerator Switch
14	WP9872161 Whirlpool Compactor Switch Off
15	9871893 Whirlpool Compactor Fan Filter
16	Bezel
16	Bezel (White)
17	WP3351614 Whirlpool Screw
18	Switch, Air Freshener (Black)
18	Switch, Air Freshener (White)
19	Cover, Air Freshener (White)
19	Cover, Air Freshener (Black)
20	WP4151750 Whirlpool Charcoal Air Filter
21	End Cap (White, LH)
21	End Cap, Left Hand (White)
21	End Cap, Left Hand (Black Right Hand)
21	End Cap, Left Hand (Black)
25	4151897 Whirlpool Compactor Clip
26	Bracket, Switch
