KUCC151EBL0 05 – PANEL AND CONTROL

KUCC151EBL0 05 – PANEL AND CONTROL

Written by

in

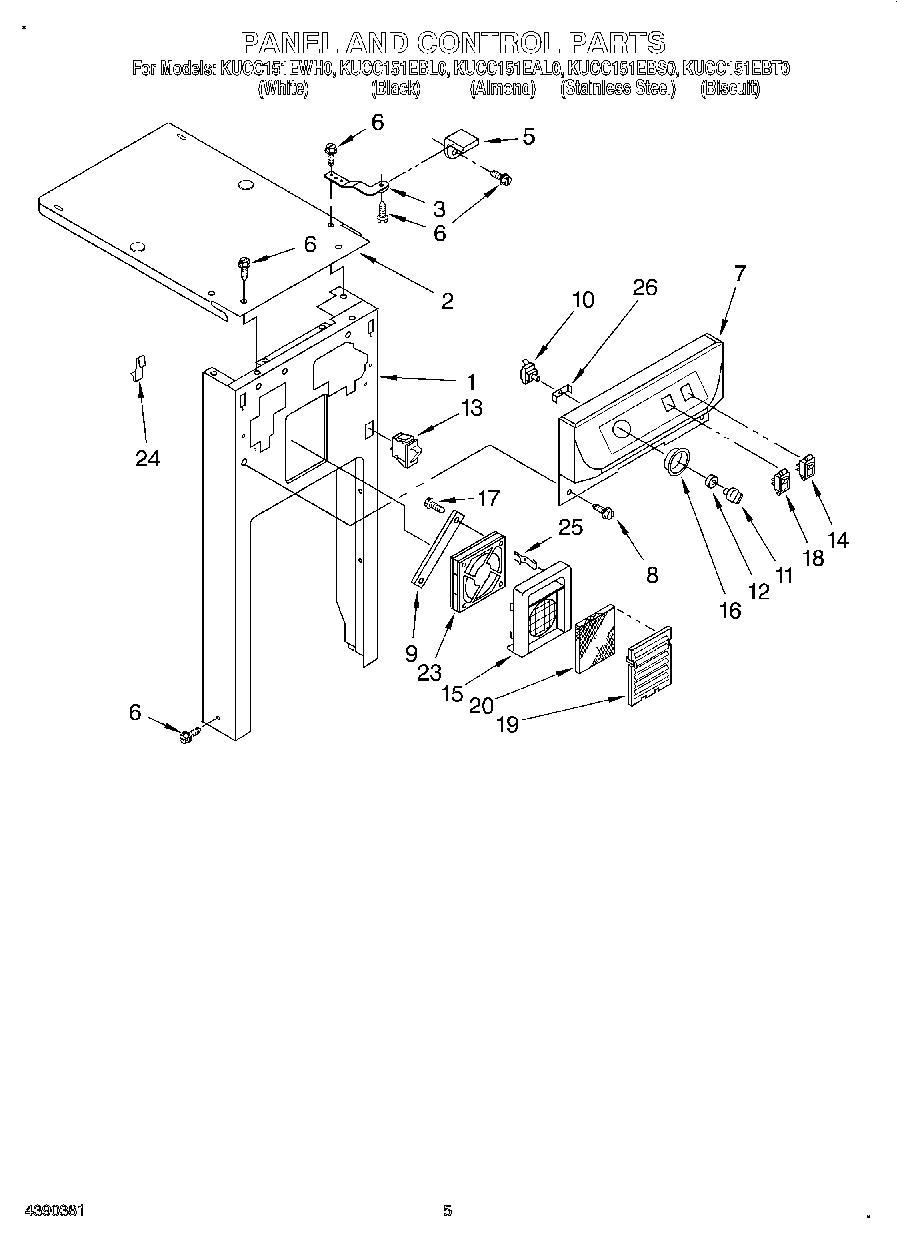

KUCC151EBL0 05 – PANEL AND CONTROL

Products

PositionProduct
19871073 Whirlpool Compactor Panel
19871575 Whirlpool Compactor Panel
1Panel, Front Frame (Almond)
1Panel, Front Frame (Black)
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489478 Whirlpool Refrigerator Screw
7Escutcheon, Control (Black)
7Escutcheon, Control (White)
7Escutcheon, Control (Almond)
7Escutcheon, Control (Biscuit)
8Screw
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11WP9871800 Whirlpool Compactor Switch Knob
11Knob, Rotary Switch (Biscuit)
119871801 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14WP9872161 Whirlpool Compactor Switch Off
159871893 Whirlpool Compactor Fan Filter
16Bezel (Biscuit)
16Bezel (Almond)
16Bezel (White)
16Bezel
17WP3351614 Whirlpool Screw
18Switch, Air Freshener (Biscuit)
18Switch, Air Freshener (Almond)
18Switch, Air Freshener (Black)
18Switch, Air Freshener (White)
19WP9871099 Whirlpool Air Freshener Cover
19Cover, Air Freshener (White)
19Cover, Air Freshen
19Cover, Air Freshener (Almond)
20WP4151750 Whirlpool Charcoal Air Filter
254151897 Whirlpool Compactor Clip
26Bracket, Switch
