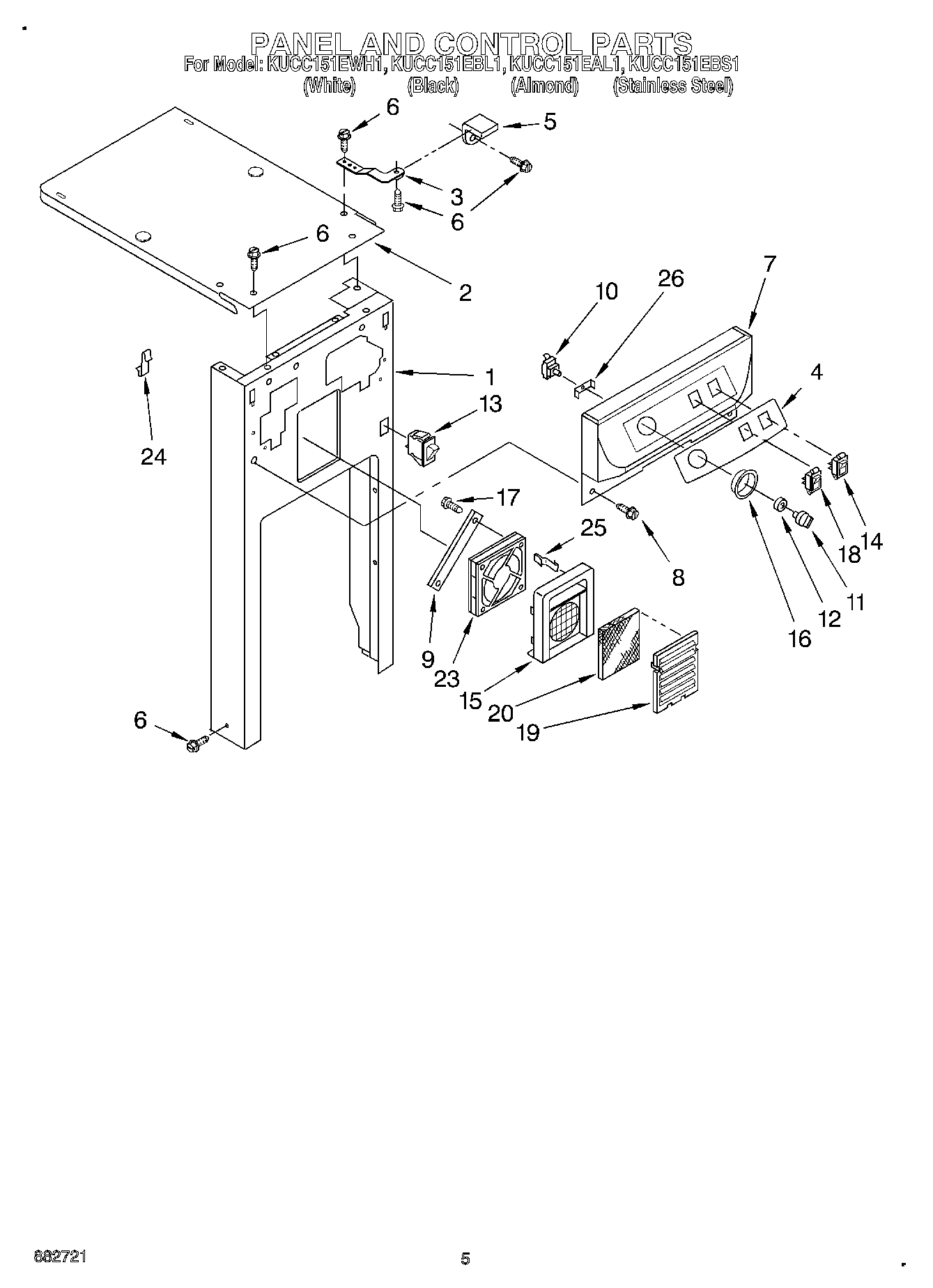

KUCC151EBS1 05 – PANEL AND CONTROL
Written by
in
KUCC151EBS1 05 – PANEL AND CONTROL
Products
Position
Product
1
Panel, Front Frame (Black)
1
9871073 Whirlpool Compactor Panel
1
Panel, Front Frame (Almond)
2
Cover, Top
3
W11729437 Whirlpool Retaining Bracket
4
Insert, Escutcheon (White)
4
Insert, Escutcheon (Black)
4
Insert, Escutcheon (Almond)
5
WP780239 Whirlpool Compactor Bracket Retainer
6
WP489478 Whirlpool Refrigerator Screw
7
Escutcheon, Control (Almond)
7
Escutcheon, Control (White)
7
Escutcheon, Control (Black)
8
Screw
9
4152703 Whirlpool Fan Strap
10
675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11
WP9871800 Whirlpool Compactor Switch Knob
11
9871801 Whirlpool Compactor Switch Knob
12
WP777383 Whirlpool Compactor Nut
13
WP4387911 Whirlpool Refrigerator Switch
14
WP9872161 Whirlpool Compactor Switch Off
15
9871893 Whirlpool Compactor Fan Filter
16
Bezel (Almond)
16
Bezel (White)
16
Bezel
17
WP3351614 Whirlpool Screw
18
Switch, Air Freshener (Black)
18
Switch, Air Freshener (White)
18
Switch, Air Freshener (Almond)
19
Cover, Air Freshener (Almond)
19
Cover, Air Freshener (White)
19
WP9871099 Whirlpool Air Freshener Cover
20
WP4151750 Whirlpool Charcoal Air Filter
25
4151897 Whirlpool Compactor Clip
26
Bracket, Switch
←
