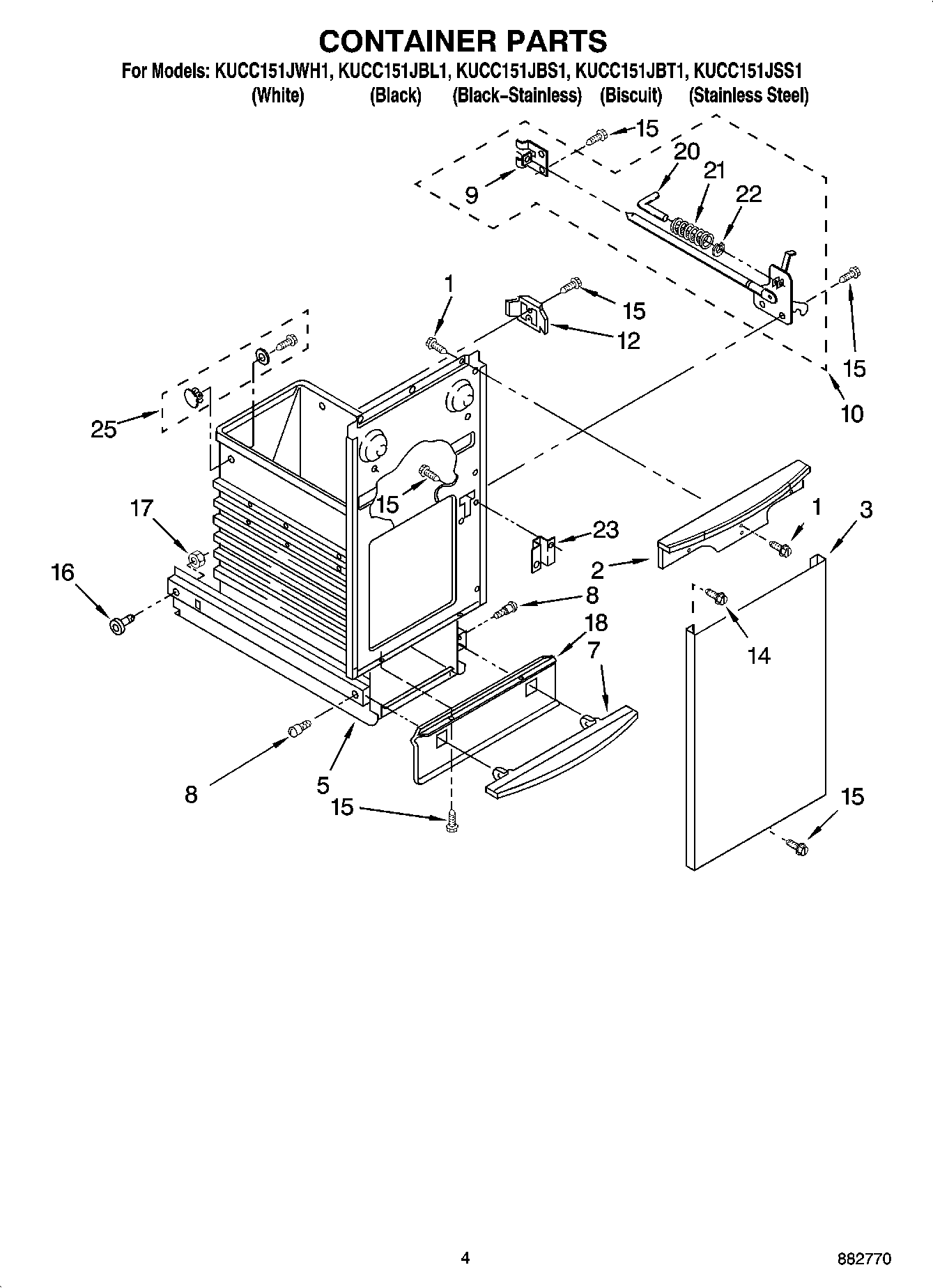

KUCC151JBS1 04 – CONTAINER PARTS

Products

Position	Product
1	WP3400888 Whirlpool Compactor Screw
2	HANDLE
2	Handle, Container (Biscuit)
3	WP9871309 Whirlpool Compactor Panel
3	WP9871311 Whirlpool Compactor Panel
3	9871574 Whirlpool Compactor Panel
3	W10813881 Whirlpool Stainless Drawer Front Panel Container
5	WPW10451276 Whirlpool Compactor Container
7	WP9871031 Whirlpool Compactor Foot Pedal
7	W11679165 Whirlpool Foot Pedal
7	9871577 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
12	9871125 Whirlpool Compactor Actuator
14	WP3196175 Whirlpool Screw
15	WP489478 Whirlpool Refrigerator Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	WP777328 Whirlpool Compactor Guard
18	W10917704 Whirlpool Compactor Guard
18	Plate, Toe Guard (Biscuit)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
23	775665 Whirlpool Compactor Plate Latch
25	RETAINER, BAG
