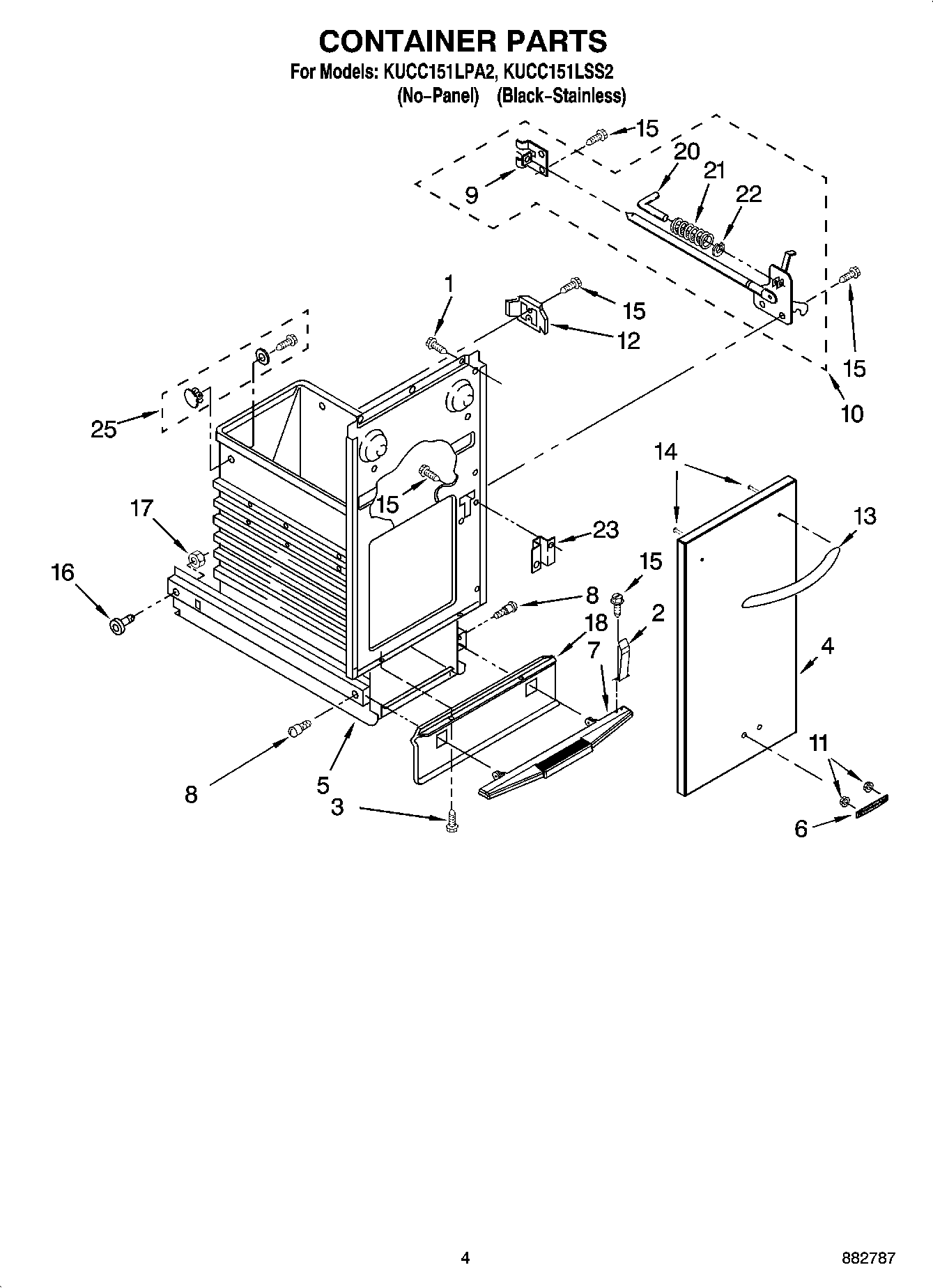

KUCC151LSS2 04 – CONTAINER PARTS

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	W10342596 Whirlpool Trash Compactor Actuator And Off Switch Kit
3	WP488488 Whirlpool Refrigerator Screw
4	Panel, Container Front
5	WPW10451276 Whirlpool Compactor Container
6	Nameplate (Black)
7	W11679165 Whirlpool Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	WP2004333 Whirlpool Refrigerator Nut
12	9871125 Whirlpool Compactor Actuator
13	Handle
14	WP3196175 Whirlpool Screw
15	WP489478 Whirlpool Refrigerator Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	WP777328 Whirlpool Compactor Guard
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
23	775665 Whirlpool Compactor Plate Latch
25	RETAINER, BAG
