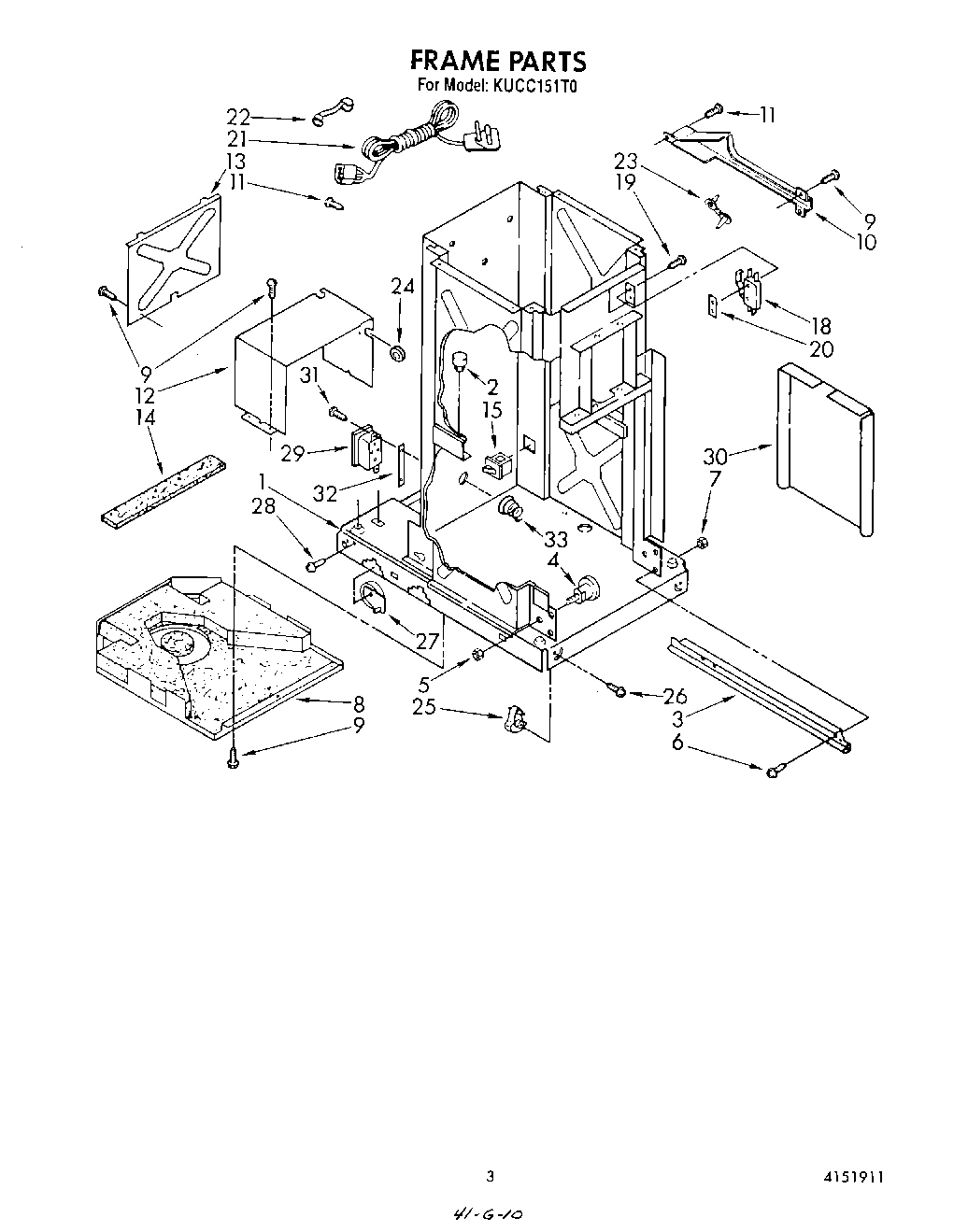

KUCC151T0 03 – FRAME

Products

PositionProduct
1Frame (Not a Serviceable Part)
2Bumper, Ram (4)
3SLIDE
3WP9870975 Whirlpool Compactor Slide
4882688 Whirlpool Compactor Bearing
5WP776356 Whirlpool Compactor Nut
6WP486754 Whirlpool Compactor Screw
7Nut, 6-32 (4)
8WP780437 Whirlpool Compactor Bottom Pan
9WP489069 Whirlpool Compactor Screw
104149659 Whirlpool Shield Assembly
11WP488234 Whirlpool Air Conditioner Screw
12Cover, Motor
13Plate, Motor Cover
14Barrier, Glass
15WP4387911 Whirlpool Refrigerator Switch
18WP777811 Whirlpool Compactor Directional Switch
19777849 Whirlpool Compactor Screw
20Plate, Nut
21Cord, Power
22Bushing, Cord
23Clamp, Wire
24Grommet, Motor Cover
25leveler (2)
26Screw & Washer Assembly (2)
27Wheel, Leveler (Right Side)
27W11023674 Whirlpool Compactor Leveling Wheel
28WP3351614 Whirlpool Screw
29Relay, Motor
30Insulation, Inner Panel (2)
31Screw, No. 6 x 3/8 (2)
32Plate, Nut
33WP777180 Whirlpool Compactor Spring
