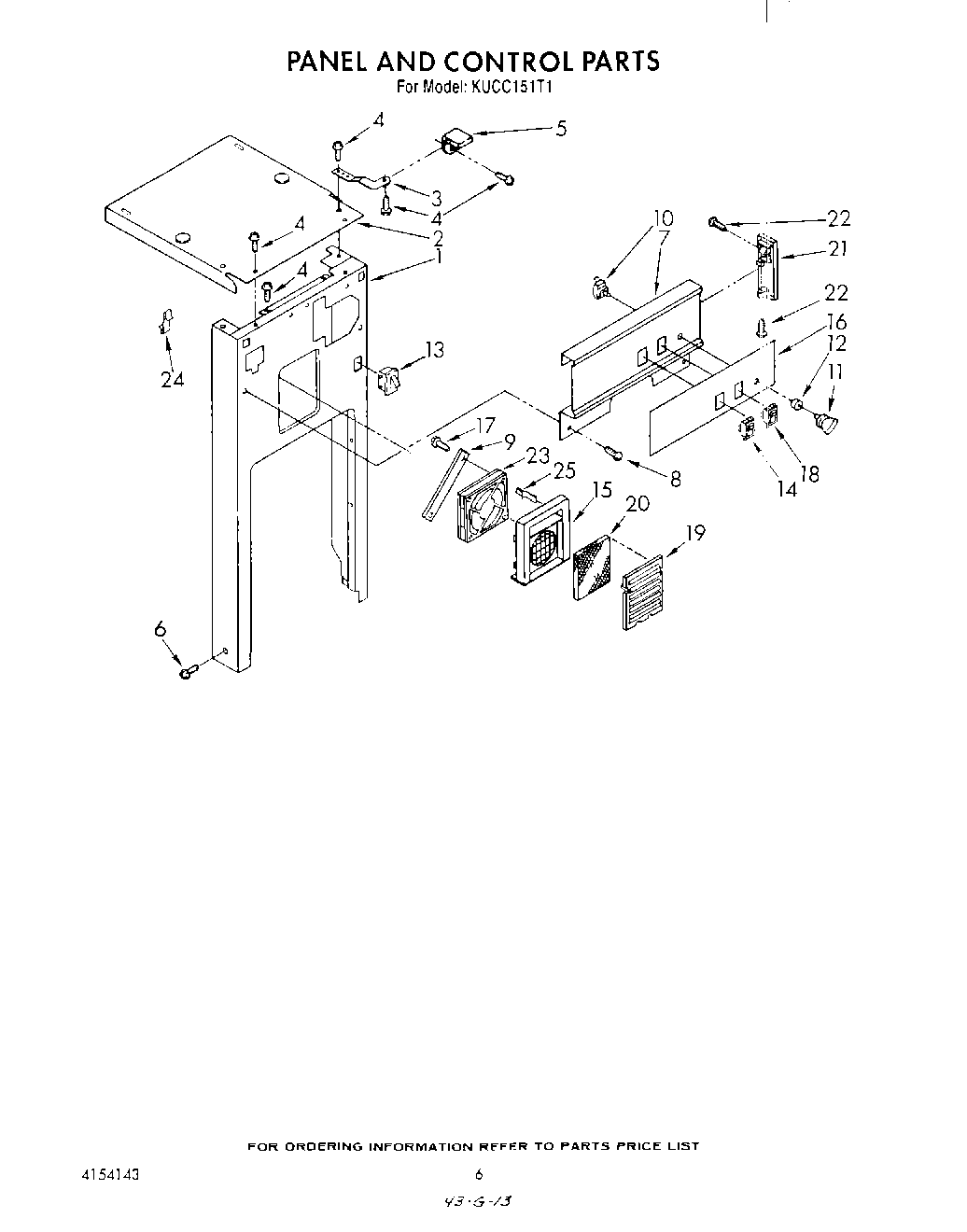

KUCC151T1 06 – PANEL AND CONTROL

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	WP302868 Whirlpool Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control
8	Screw, 6-20 x 3/8 (2)
9	4152703 Whirlpool Fan Strap
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	776594 Whirlpool Power Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	WP4387911 Whirlpool Refrigerator Switch
14	WP4314961 Whirlpool Lite Switch
15	9871893 Whirlpool Compactor Fan Filter
16	insert, escutcheon (optional) (white)
16	insert, escutcheon (optional) (almond)
17	WP3351614 Whirlpool Screw
19	Cover, Air Freshener (Black)
20	WP4151750 Whirlpool Charcoal Air Filter
21	End Cap, Escutcheon (R.H.)
21	End Cap, Escutcheon (L.H.)
25	4151897 Whirlpool Compactor Clip
