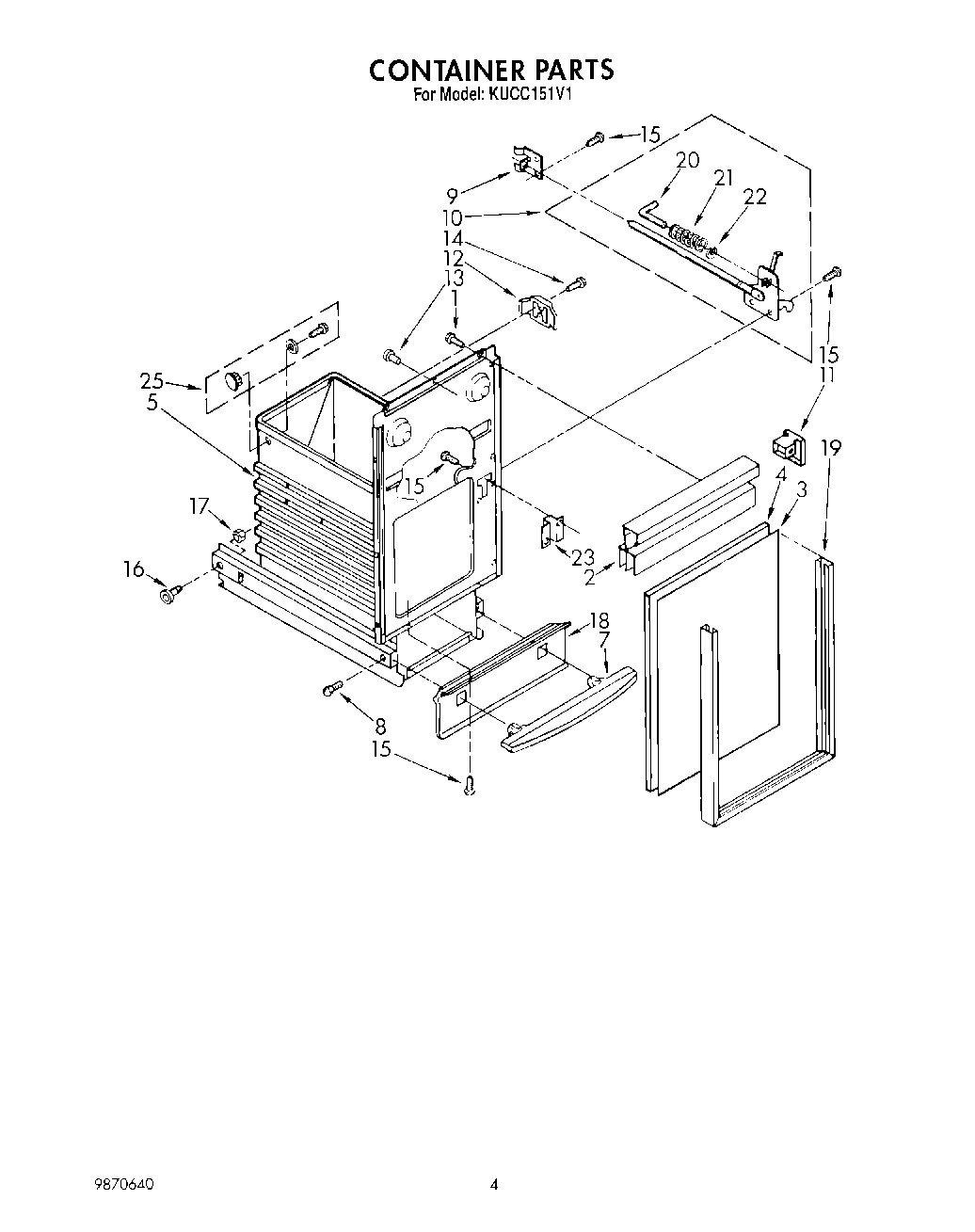

KUCC151V1 04 – CONTAINER

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	Handle, Container
3	Panel, Container Front (Almond & Harvest Gold)
3	Panel, Container (White & Black)
4	Panel, Spacer
5	Container Assembly
7	W11679165 Whirlpool Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	End Cap, Handle (R.H.)
11	End Cap, Handle (L.H.)
12	9871125 Whirlpool Compactor Actuator
13	Bumper, Container (2)
14	Screw (2)
15	WP489069 Whirlpool Compactor Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	WP777328 Whirlpool Compactor Guard
19	Trim, Container (Front)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
23	775665 Whirlpool Compactor Plate Latch
25	RETAINER, BAG
