KUCK03ITBL0 01 – MOTOR AND DRIVE PARTS
Written by
in

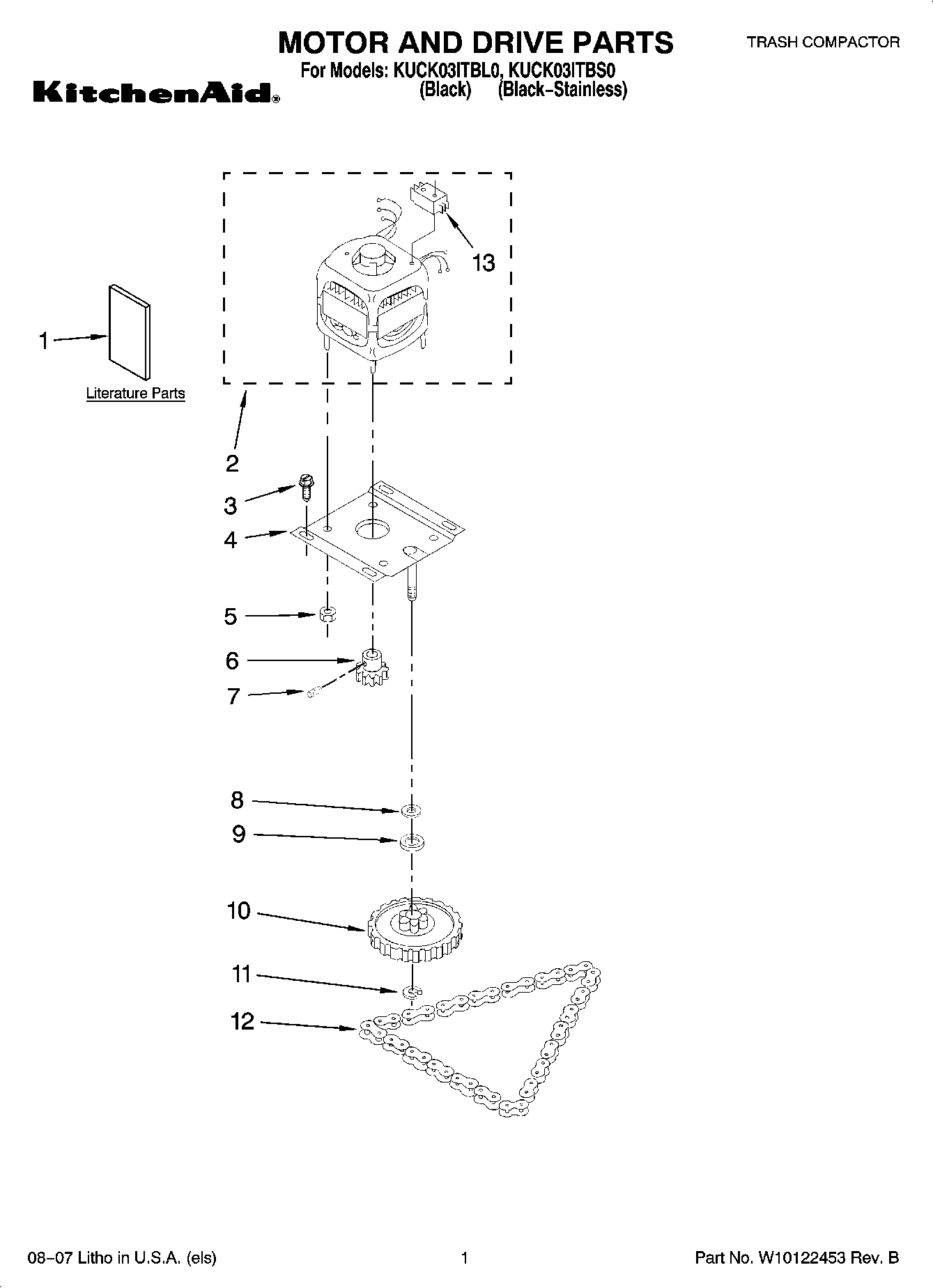

KUCK03ITBL0 01 – MOTOR AND DRIVE PARTS
Products
Position
Product
1
Guide, Use & Care
1
Tech Sheet
3
WP8204624 Whirlpool Bolt
4
776327 Whirlpool Compactor Motor Plate
5
WP776338 Whirlpool Compactor Nut
6
GEAR KIT COMPACTOR
7
WP454512 Whirlpool Compactor Spring Pin
8
776035 Whirlpool Compactor Washer
9
W11214485 Whirlpool Compactor Washer
11
WP776036 Whirlpool Compactor Clip
12
CHAIN-DRVE
13
9870118A Whirlpool Compactor Bracket Kit
13
W10439651 Whirlpool Air Conditioner Motor Drive
13
Parts Not Illustrated and Optional Parts (Not Included)
←
