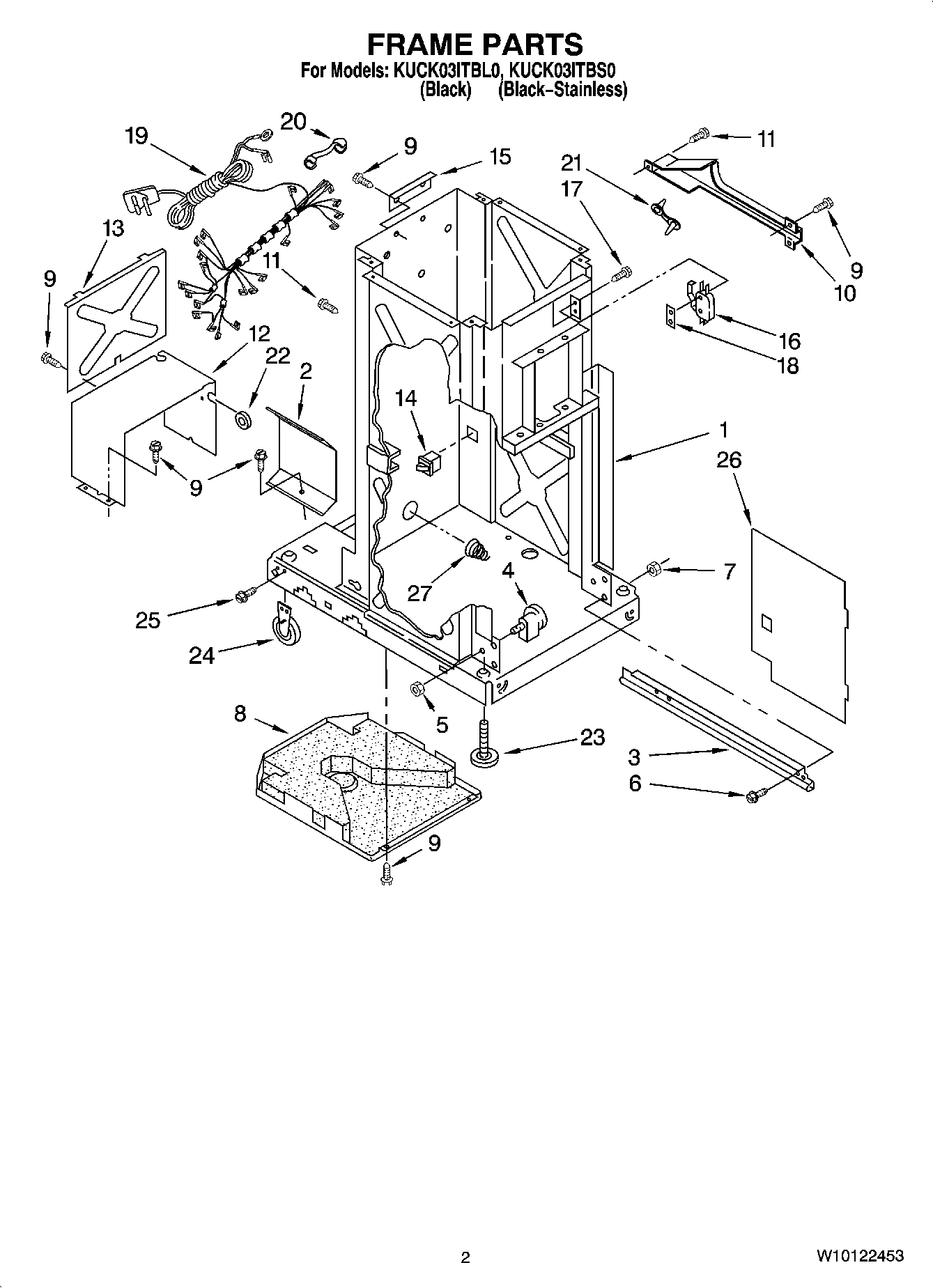

KUCK03ITBL0 02 – FRAME PARTS

Products

Position	Product
1	Frame (Not A Serviceable Part)
2	9870867 Whirlpool Shield
3	WP9870975 Whirlpool Compactor Slide
3	SLIDE
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	NUT
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489478 Whirlpool Refrigerator Screw
10	4149659 Whirlpool Shield Assembly
11	WP488234 Whirlpool Air Conditioner Screw
12	780434 Whirlpool Motor Cover
13	Plate, Motor Cover
14	WP4387911 Whirlpool Refrigerator Switch
15	Angle, Top Bracket
16	WP777811 Whirlpool Compactor Directional Switch
17	777849 Whirlpool Compactor Screw
18	Plate, Nut
19	9872117 Whirlpool Compactor Wire Harness
20	Bushing, Cord
21	Clamp, Wire
22	Grommet, Motor Cover
23	WPW10001130 Whirlpool Leveling Leg
24	W11023674 Whirlpool Compactor Leveling Wheel
25	WP3351614 Whirlpool Screw
26	WP9870444 Whirlpool Compactor Inner Panel
27	WP777180 Whirlpool Compactor Spring
