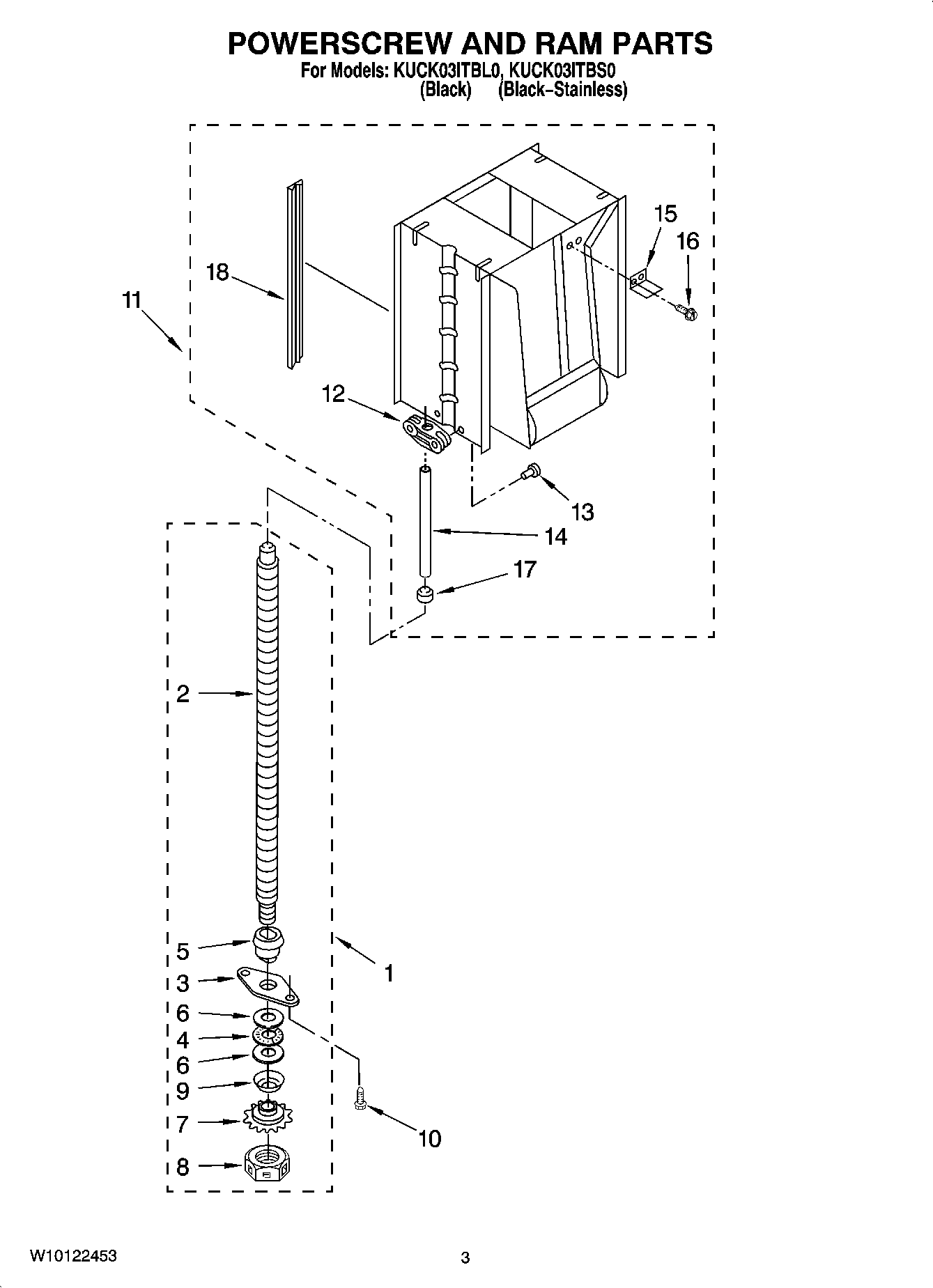

KUCK03ITBL0 03 – POWERSCREW AND RAM PARTS

KUCK03ITBL0 03 – POWERSCREW AND RAM PARTS

Written by

in

KUCK03ITBL0 03 – POWERSCREW AND RAM PARTS

Products

PositionProduct
1WPW10451272 Whirlpool Trash Compactor Power Screw
2Screw, Power (Available Only As Complete Assembly)
3779121 Whirlpool Compactor Plate
4W10917043 Whirlpool Compactor Bearing
5776941 Whirlpool Compactor Power Crew Hub
6775481 Whirlpool Compactor Bearing
7SPROCKET
84154842 Whirlpool Compactor Nut
9WP777332 Whirlpool Compactor Washer
10WP8204624 Whirlpool Bolt
11W11696573 Whirlpool Ram
12WP9870163 Whirlpool Compactor Trunnion Nut
13882694 Whirlpool Compactor Stud
14WP9870037 Whirlpool Ram Stop
15Bracket, Top Limit Switch
16WP489399 Whirlpool Refrigerator Screw
17WP9870775 Whirlpool Compactor Power Screw Cap
18W10917246 Whirlpool Compactor RAM Slide
