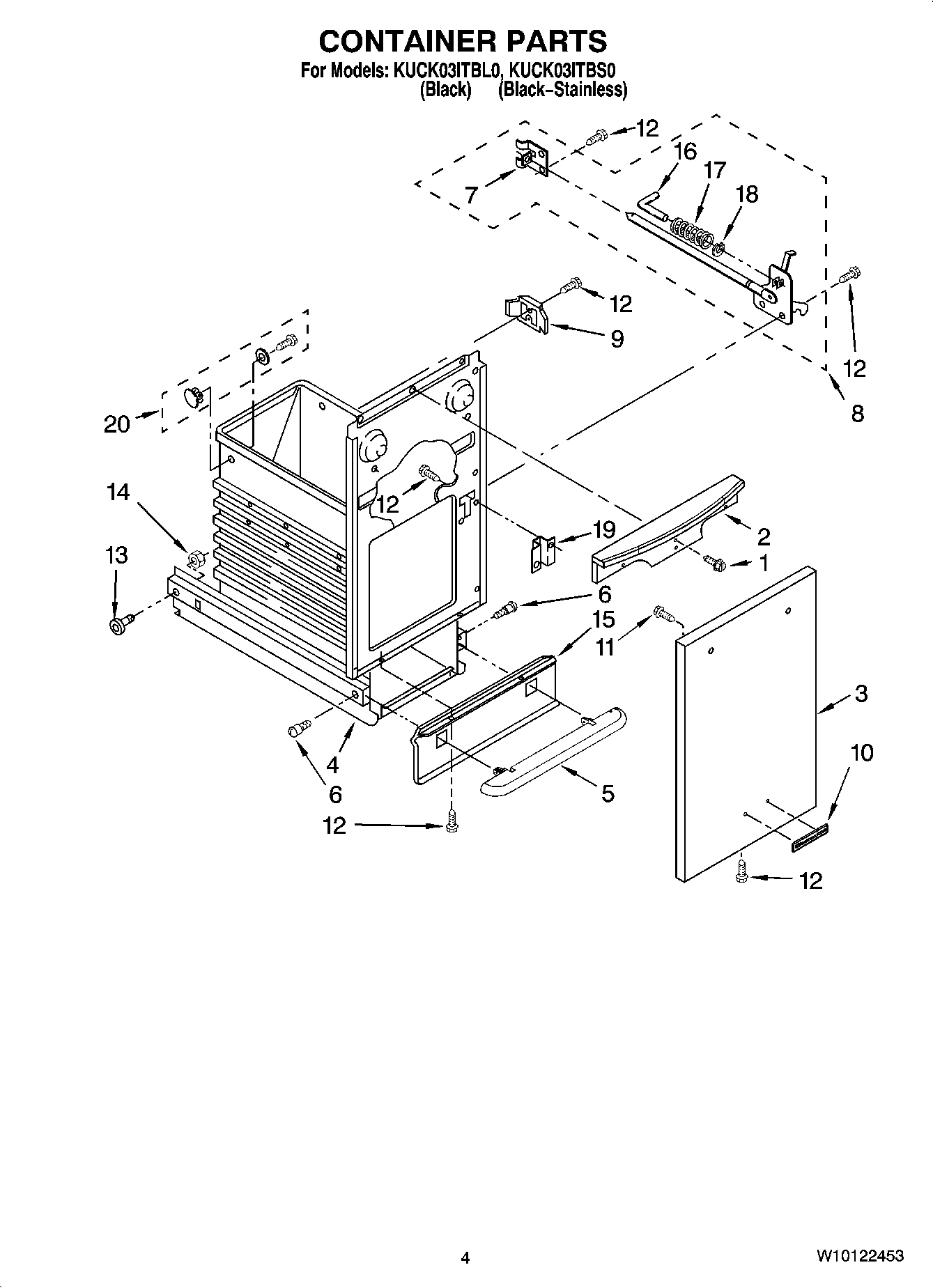

KUCK03ITBL0 04 – CONTAINER PARTS
Written by
in
KUCK03ITBL0 04 – CONTAINER PARTS
Products
Position
Product
1
WP3400888 Whirlpool Compactor Screw
2
HANDLE
3
Panel, Container (Stainless)
3
Panel, Container (Black)
4
WPW10451276 Whirlpool Compactor Container
5
W11636605 Whirlpool Compactor Foot Pedal
6
WP780263 Whirlpool Compactor Screw
7
WP776395 Whirlpool Compactor Guide
8
675379 Whirlpool Compactor Drawer Latch
9
9871125 Whirlpool Compactor Actuator
10
W10021870 Whirlpool Nameplate
10
W10021850 Whirlpool Dishwasher Nameplate
11
WP3196175 Whirlpool Screw
12
WP489478 Whirlpool Refrigerator Screw
13
WP9871602 Whirlpool Compactor Bearing
14
WP776356 Whirlpool Compactor Nut
15
WP777328 Whirlpool Compactor Guard
16
Pin
17
775736 Whirlpool Compactor Spring
18
Ring, “E“
19
775665 Whirlpool Compactor Plate Latch
20
RETAINER, BAG
←
