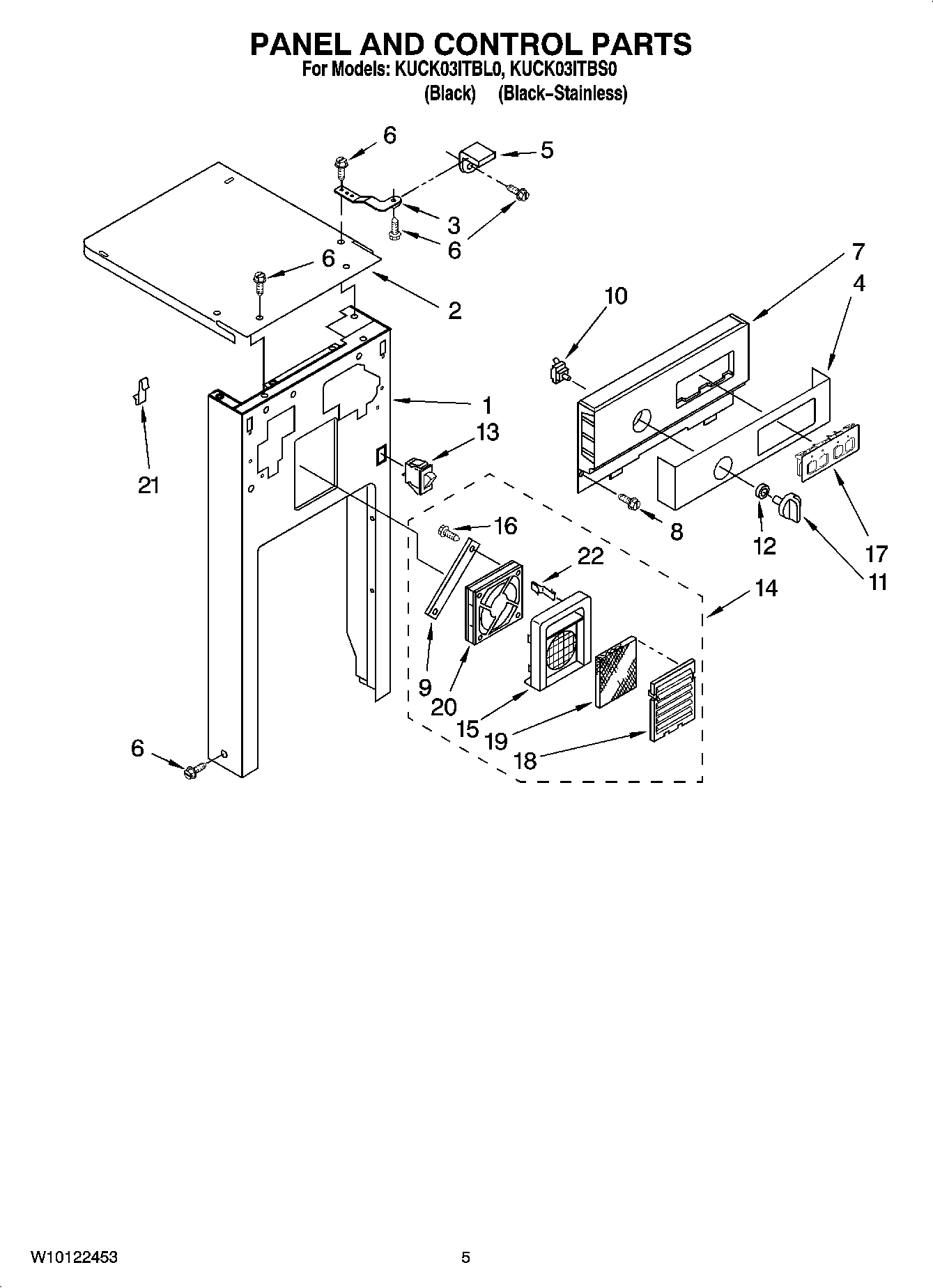

KUCK03ITBL0 05 – PANEL AND CONTROL PARTS
Written by
in
KUCK03ITBL0 05 – PANEL AND CONTROL PARTS
Products
Position
Product
1
Panel, Front Frame (Black)
2
Cover, Top
3
W11729437 Whirlpool Retaining Bracket
4
Insert, Escutcheon (Black)
5
WP780239 Whirlpool Compactor Bracket Retainer
6
WP489478 Whirlpool Refrigerator Screw
7
Escutcheon, Control (Black)
8
Screw
9
4152703 Whirlpool Fan Strap
10
675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11
WP9871800 Whirlpool Compactor Switch Knob
12
WP777383 Whirlpool Compactor Nut
13
9871829 Whirlpool Trash Compactor Door Switch
15
9871893 Whirlpool Compactor Fan Filter
16
WP3351614 Whirlpool Screw
17
9872326B Whirlpool Compactor OFF Switch
18
WP9871099 Whirlpool Air Freshener Cover
19
WP4151750 Whirlpool Charcoal Air Filter
22
4151897 Whirlpool Compactor Clip
←
