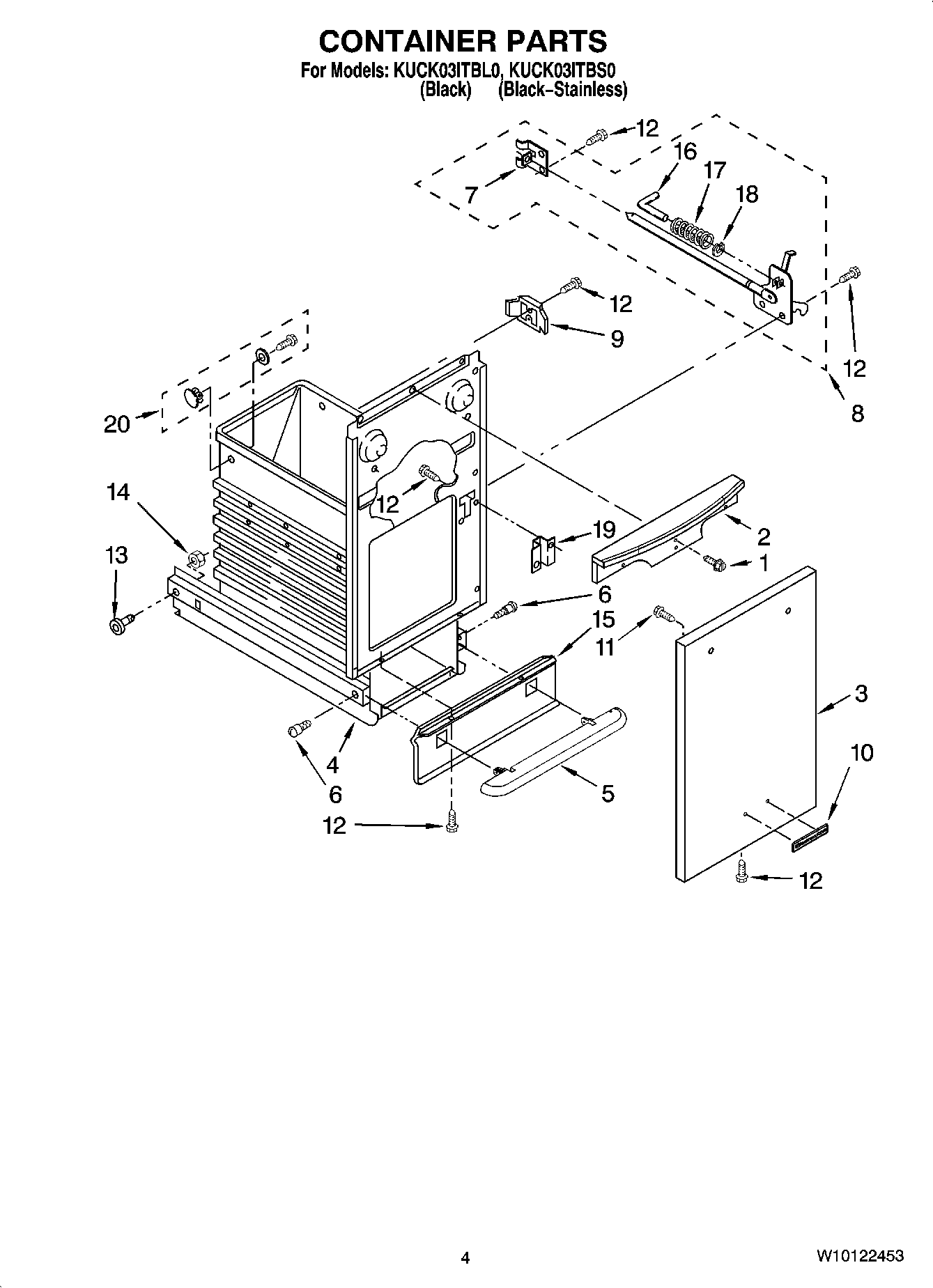

KUCK03ITBS0 04 – CONTAINER PARTS

Products

Position	Product
1	WP3400888 Whirlpool Compactor Screw
2	HANDLE
3	Panel, Container (Stainless)
3	Panel, Container (Black)
4	WPW10451276 Whirlpool Compactor Container
5	W11636605 Whirlpool Compactor Foot Pedal
6	WP780263 Whirlpool Compactor Screw
7	WP776395 Whirlpool Compactor Guide
8	675379 Whirlpool Compactor Drawer Latch
9	9871125 Whirlpool Compactor Actuator
10	W10021870 Whirlpool Nameplate
10	W10021850 Whirlpool Dishwasher Nameplate
11	WP3196175 Whirlpool Screw
12	WP489478 Whirlpool Refrigerator Screw
13	WP9871602 Whirlpool Compactor Bearing
14	WP776356 Whirlpool Compactor Nut
15	WP777328 Whirlpool Compactor Guard
16	Pin
17	775736 Whirlpool Compactor Spring
18	Ring, “E“
19	775665 Whirlpool Compactor Plate Latch
20	RETAINER, BAG
