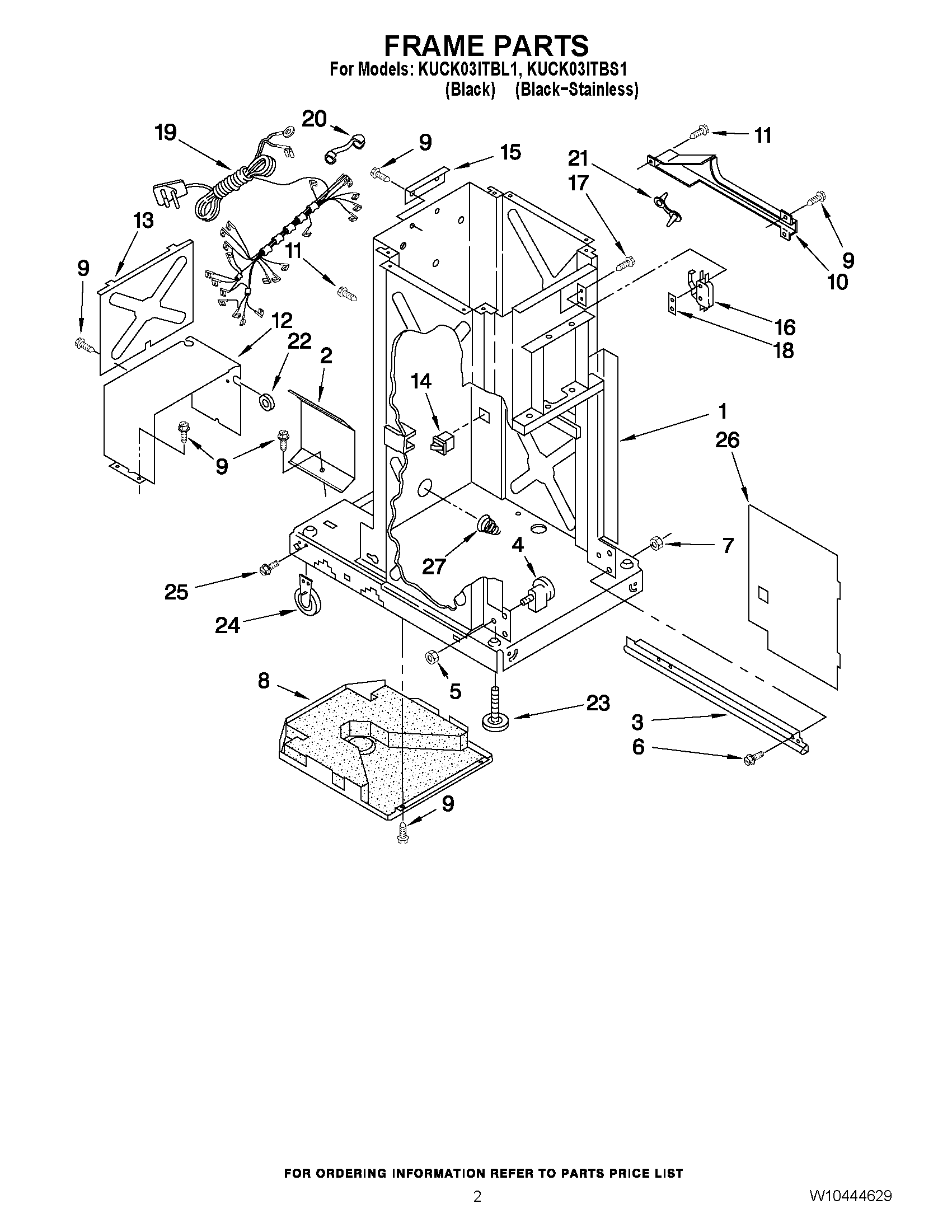

KUCK03ITBS1 02 – FRAME PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
29870867 Whirlpool Shield
3SLIDE
3WP9870975 Whirlpool Compactor Slide
4882688 Whirlpool Compactor Bearing
5WP776356 Whirlpool Compactor Nut
6WP486754 Whirlpool Compactor Screw
7NUT
8WP780437 Whirlpool Compactor Bottom Pan
9WP489478 Whirlpool Refrigerator Screw
104149659 Whirlpool Shield Assembly
11WPW10139210 Whirlpool Screw
12780434 Whirlpool Motor Cover
13Plate, Motor Cover
14WP4387911 Whirlpool Refrigerator Switch
15Angle, Top Bracket
16WP777811 Whirlpool Compactor Directional Switch
17777849 Whirlpool Compactor Screw
18Plate, Nut
19W10279446 Whirlpool Wire Harness
20Bushing, Cord
21Clamp, Wire
22Grommet, Motor Cover
23WPW10001130 Whirlpool Leveling Leg
24W11023674 Whirlpool Compactor Leveling Wheel
25WP3351614 Whirlpool Screw
26WP9870444 Whirlpool Compactor Inner Panel
27WP777180 Whirlpool Compactor Spring
