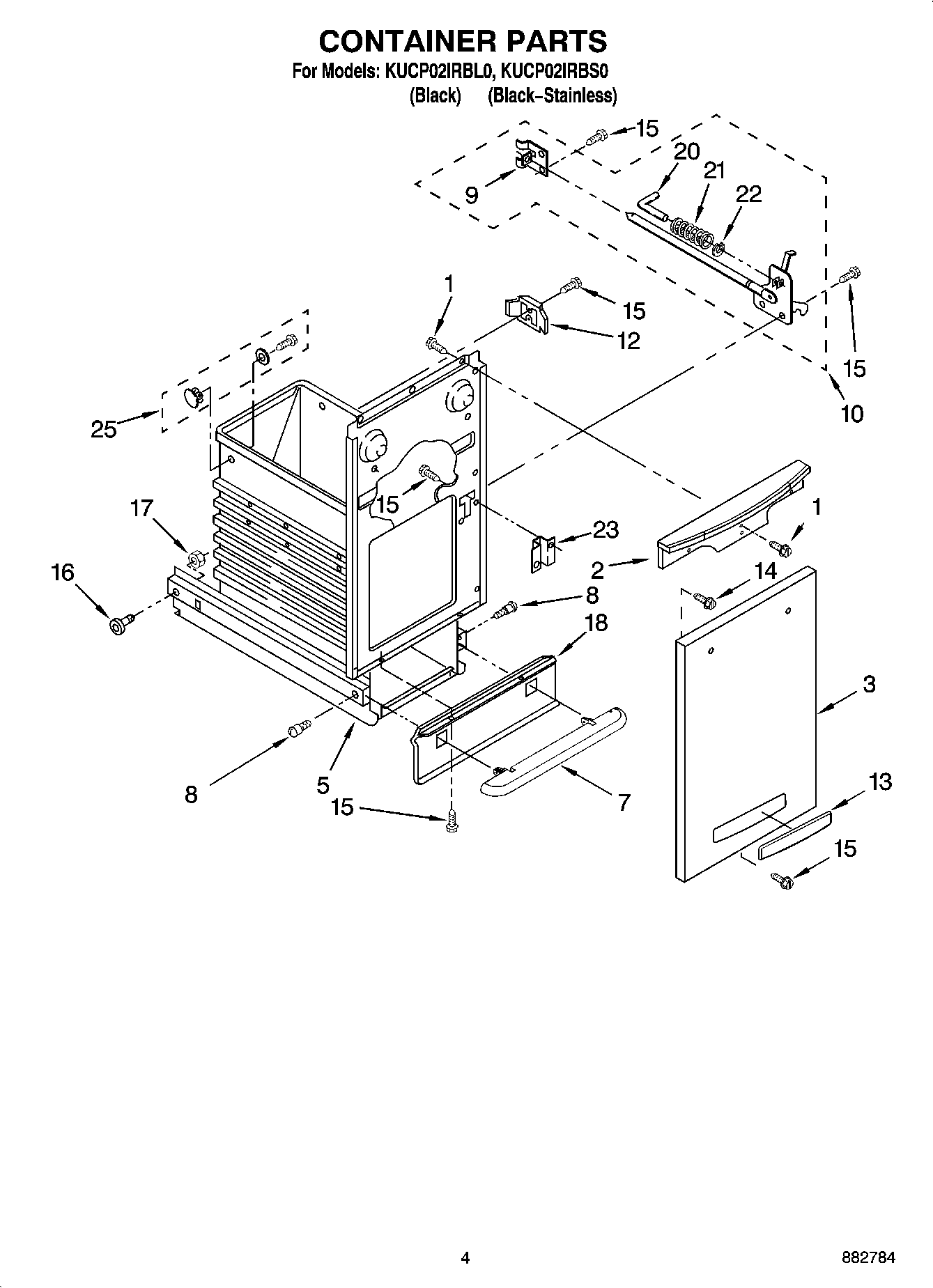

KUCP02IRBL0 04 – CONTAINER PARTS

Products

Position	Product
1	WP3400888 Whirlpool Compactor Screw
2	HANDLE
3	W10813881 Whirlpool Stainless Drawer Front Panel Container
3	WP9871311 Whirlpool Compactor Panel
5	WPW10451276 Whirlpool Compactor Container
7	W11636605 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
12	9871125 Whirlpool Compactor Actuator
13	Nameplate (Black)
14	WP3196175 Whirlpool Screw
15	WP489478 Whirlpool Refrigerator Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	WP777328 Whirlpool Compactor Guard
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
23	775665 Whirlpool Compactor Plate Latch
25	RETAINER, BAG
