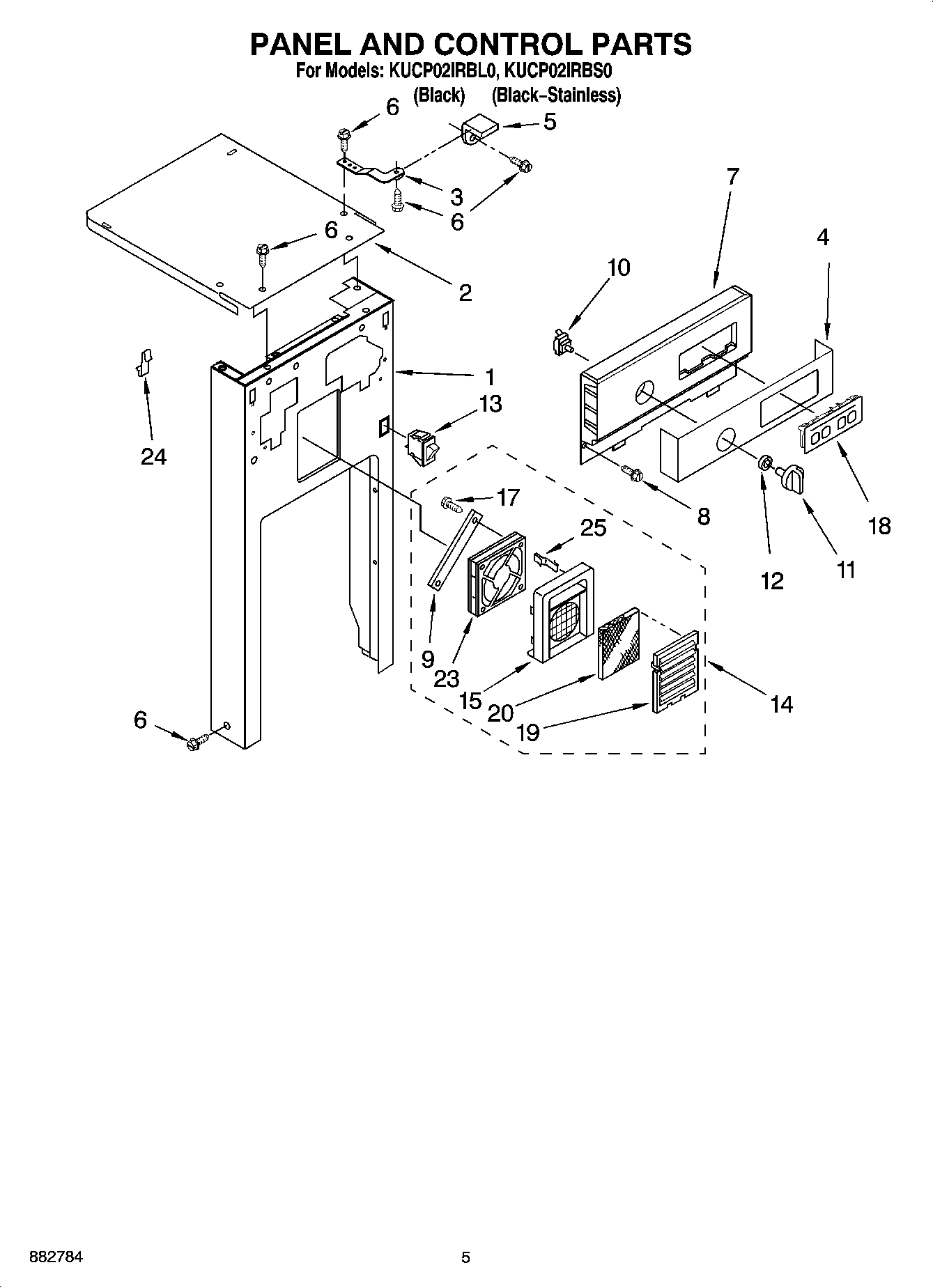

KUCP02IRBS0 05 – PANEL AND CONTROL PARTS

KUCP02IRBS0 05 – PANEL AND CONTROL PARTS

Written by

in

KUCP02IRBS0 05 – PANEL AND CONTROL PARTS

Products

PositionProduct
1Panel, Front Frame (Black)
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4Insert, Escutcheon (Black)
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489478 Whirlpool Refrigerator Screw
7Escutcheon, Control (Black)
8Screw
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11WP9871800 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
139871829 Whirlpool Trash Compactor Door Switch
159871893 Whirlpool Compactor Fan Filter
17WP3351614 Whirlpool Screw
18Switch Assembly (Black)
19WP9871099 Whirlpool Air Freshener Cover
20WP4151750 Whirlpool Charcoal Air Filter
254151897 Whirlpool Compactor Clip
