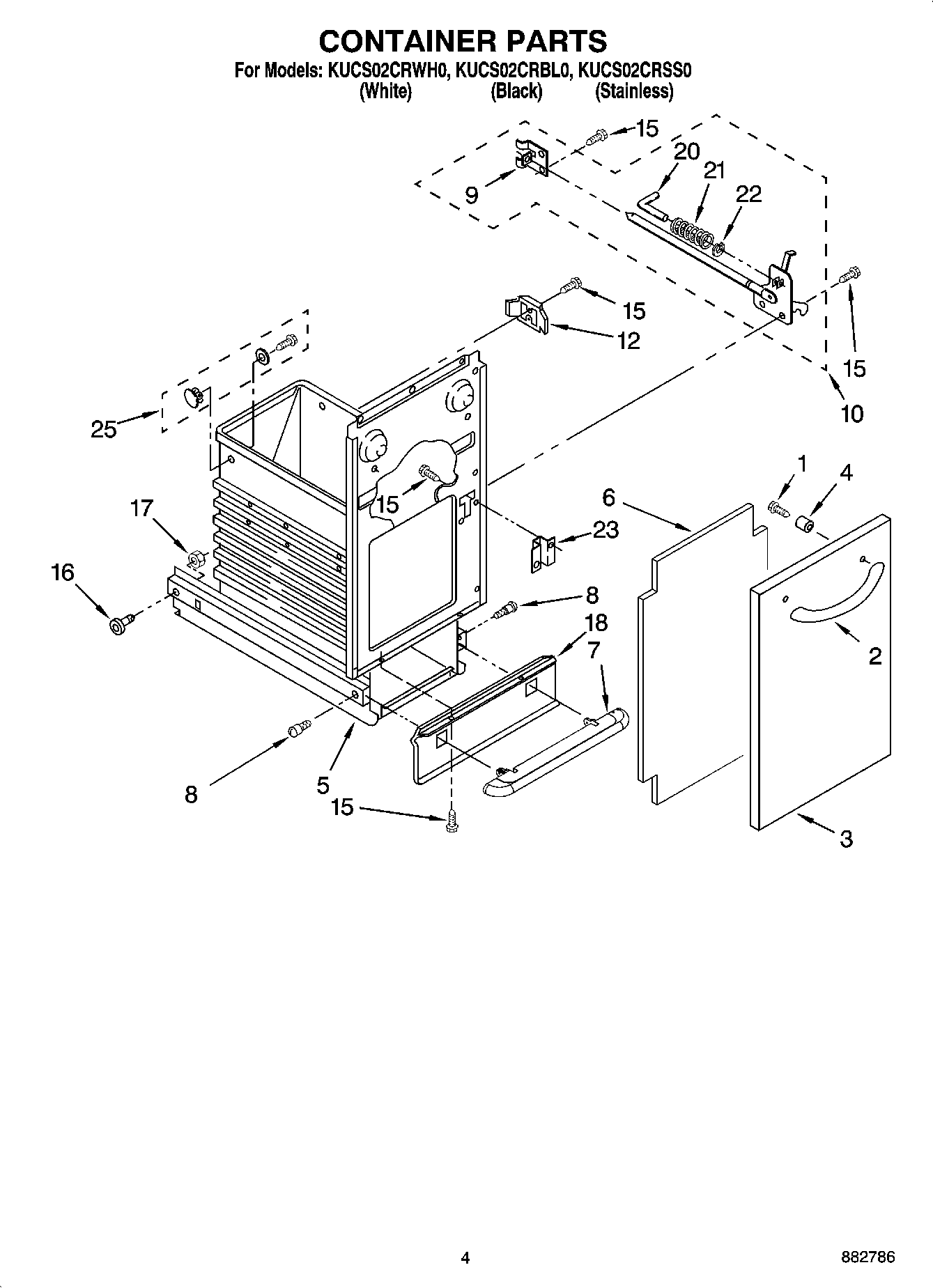

KUCS02CRBL0 04 – CONTAINER PARTS

Products

Position	Product
1	Screw
2	Handle, Container (White)
2	Handle
2	Handle, Container (Black)
3	Panel, Container (Black)
3	Panel, Container (White)
3	Panel, Container (Stainless)
4	WP9871563 Whirlpool Compactor Spacer
5	WPW10451276 Whirlpool Compactor Container
6	Insulation, Panel
7	9871989W Whirlpool Compactor Foot Pedal Assembly
7	W11636605 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
12	9871125 Whirlpool Compactor Actuator
15	WP489478 Whirlpool Refrigerator Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	W10917704 Whirlpool Compactor Guard
18	WP777328 Whirlpool Compactor Guard
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
23	775665 Whirlpool Compactor Plate Latch
25	RETAINER, BAG
