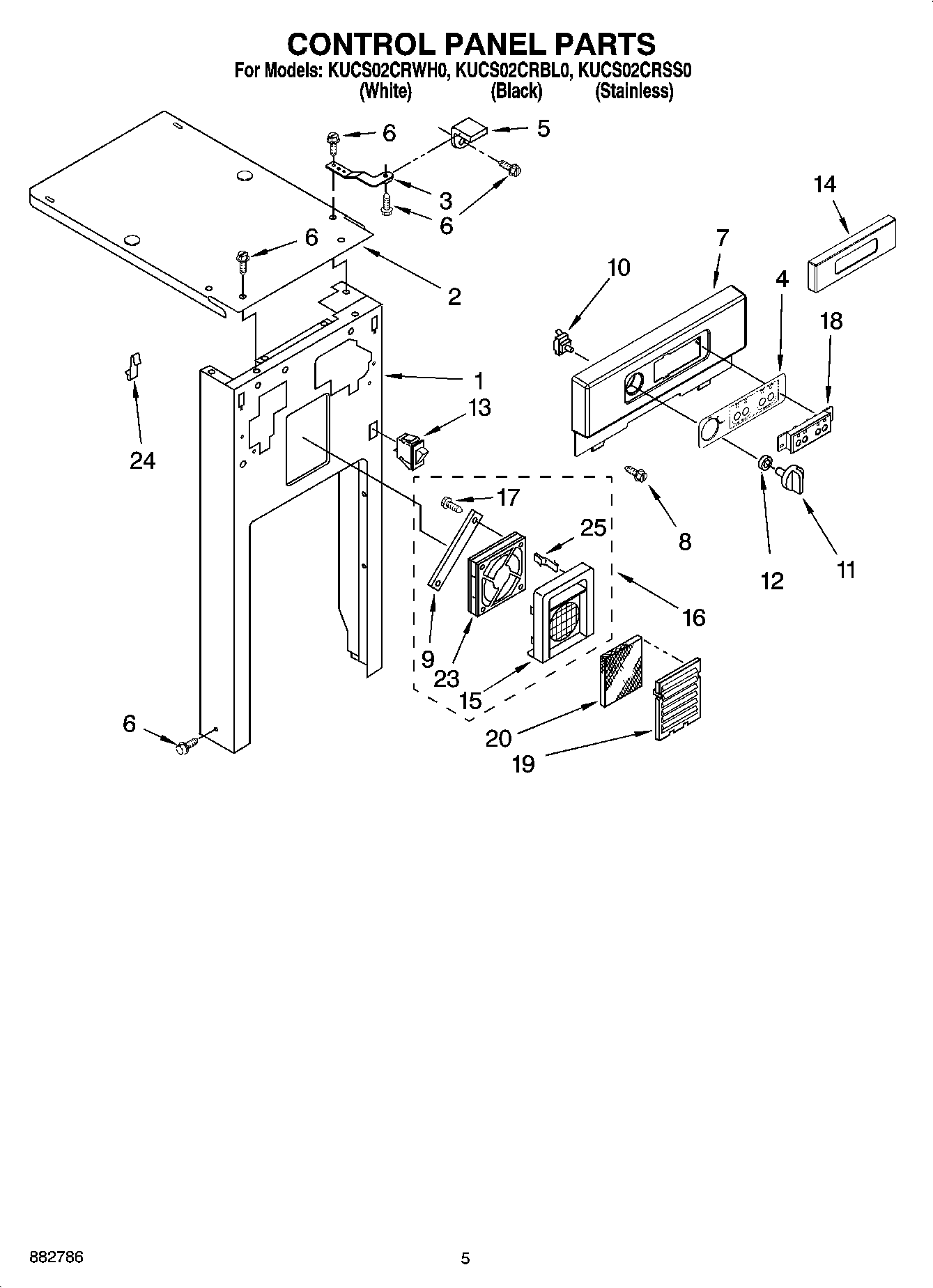

KUCS02CRSS0 05 – CONTROL PANEL PARTS

KUCS02CRSS0 05 – CONTROL PANEL PARTS

Written by

in

KUCS02CRSS0 05 – CONTROL PANEL PARTS

Products

PositionProduct
19871073 Whirlpool Compactor Panel
1Panel, Front Frame (Black)
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4Insert, Escutcheon (White)
4Insert, Escutcheon (Black)
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489478 Whirlpool Refrigerator Screw
79872144B Whirlpool Compactor Escutcheon
79872144W Whirlpool Compactor Escutcheon
8Screw
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11WP9871799 Whirlpool Compactor Switch Knob
11WP9871800 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14Cover, Console (Stainless Model Only)
159871893 Whirlpool Compactor Fan Filter
17WP3351614 Whirlpool Screw
189872148 Whirlpool Compactor Off Switch
19Cover, Air Freshener (White)
19WP9871099 Whirlpool Air Freshener Cover
20WP4151750 Whirlpool Charcoal Air Filter
254151897 Whirlpool Compactor Clip
