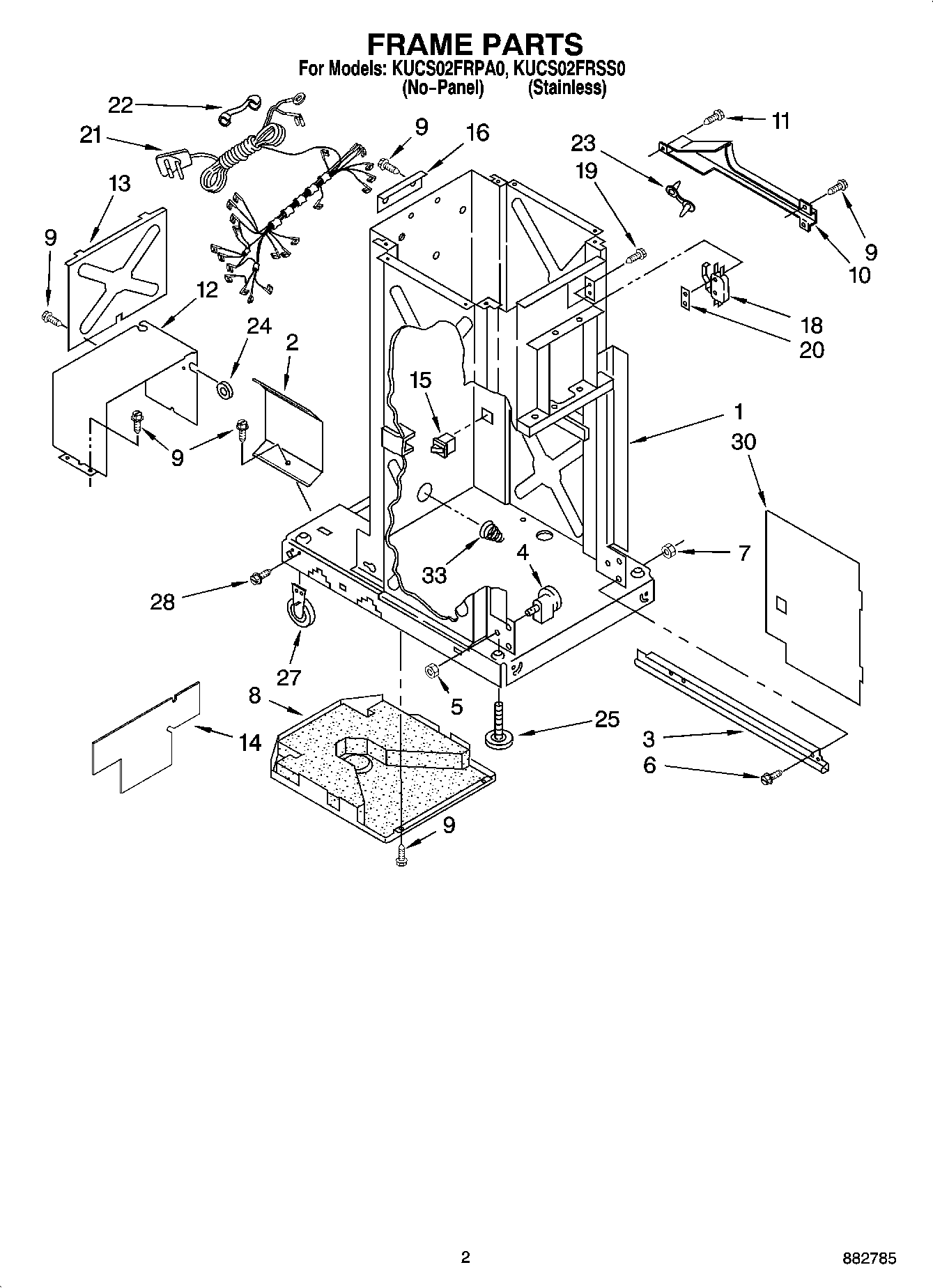

KUCS02FRPA0 02 – FRAME PARTS

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	9870867 Whirlpool Shield
3	WP9870975 Whirlpool Compactor Slide
3	SLIDE
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	WPW10139210 Whirlpool Screw
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489478 Whirlpool Refrigerator Screw
10	4149659 Whirlpool Shield Assembly
11	WP488234 Whirlpool Air Conditioner Screw
12	780434 Whirlpool Motor Cover
13	Plate, Motor Cover
14	W11688705 Whirlpool Insulation
15	WP4387911 Whirlpool Refrigerator Switch
16	Angle, Top Bracket
18	WP777811 Whirlpool Compactor Directional Switch
19	777849 Whirlpool Compactor Screw
20	Plate, Nut
21	9872118 Whirlpool Compactor Wire Harness
22	Bushing, Cord
23	Clamp, Wire
24	Grommet, Motor Cover
25	WPW10001130 Whirlpool Leveling Leg
27	W11023674 Whirlpool Compactor Leveling Wheel
28	WP3351614 Whirlpool Screw
30	WP9870444 Whirlpool Compactor Inner Panel
33	WP777180 Whirlpool Compactor Spring
