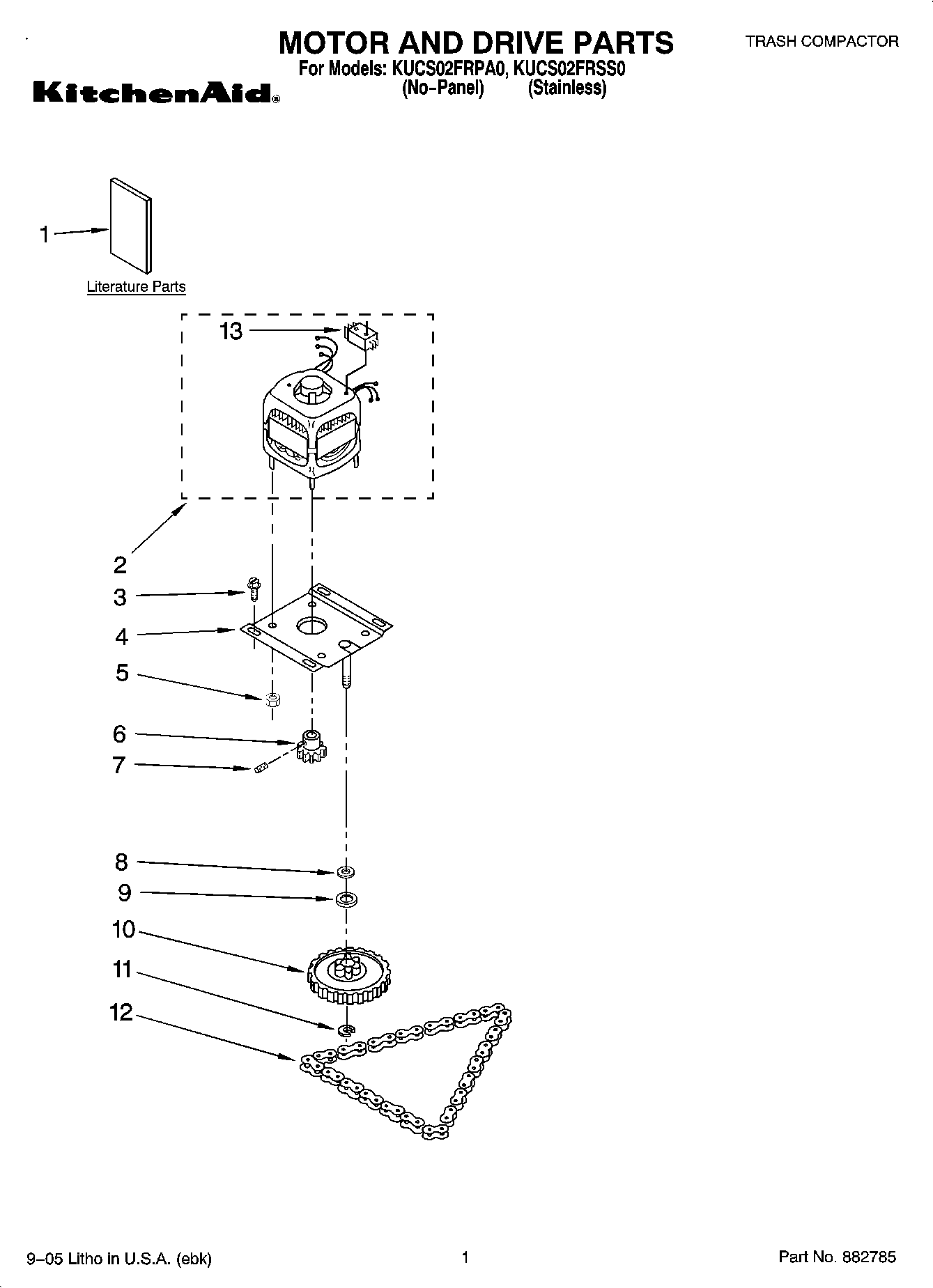

KUCS02FRSS0 01 – MOTOR AND DRIVE PARTS

KUCS02FRSS0 01 – MOTOR AND DRIVE PARTS

Written by

in

KUCS02FRSS0 01 – MOTOR AND DRIVE PARTS

Products

PositionProduct
1Guide, Use & Care
1Tech Sheet
3WP8204624 Whirlpool Bolt
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12CHAIN-DRVE
139870118A Whirlpool Compactor Bracket Kit
13W10439651 Whirlpool Air Conditioner Motor Drive
