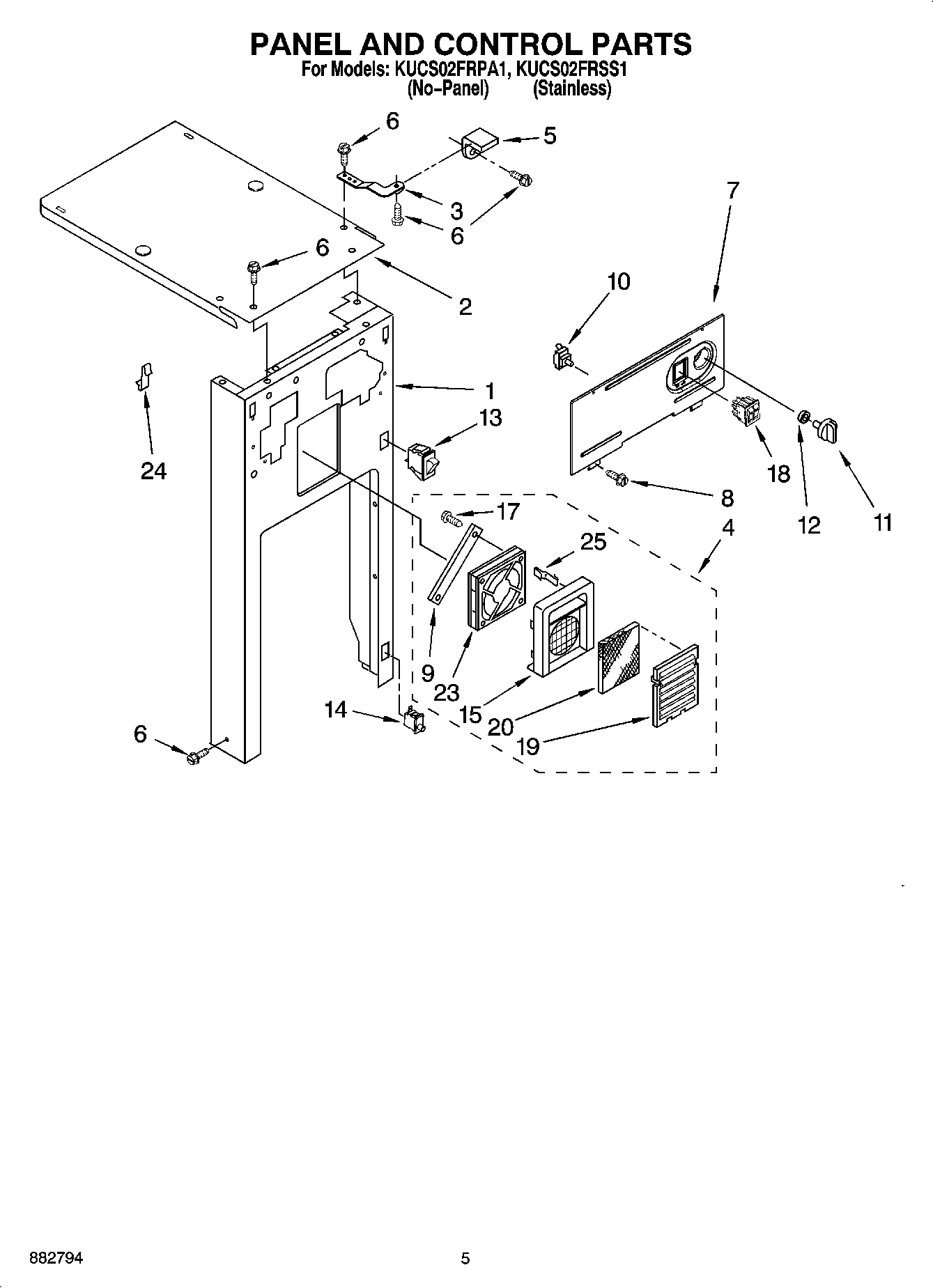

KUCS02FRSS1 05 – PANEL AND CONTROL PARTS

KUCS02FRSS1 05 – PANEL AND CONTROL PARTS

Written by

in

KUCS02FRSS1 05 – PANEL AND CONTROL PARTS

Products

PositionProduct
1W10342596 Whirlpool Trash Compactor Actuator And Off Switch Kit
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489478 Whirlpool Refrigerator Screw
7W11447162 Whirlpool Compactor Escutcheon
8Screw
94152703 Whirlpool Fan Strap
10WP9871971 Whirlpool Compactor Off Switch
11WP9871920 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
139871829 Whirlpool Trash Compactor Door Switch
159871893 Whirlpool Compactor Fan Filter
17WP3351614 Whirlpool Screw
18W11032731 Whirlpool Compactor OFF Switch
19WP9871099 Whirlpool Air Freshener Cover
20WP4151750 Whirlpool Charcoal Air Filter
254151897 Whirlpool Compactor Clip
