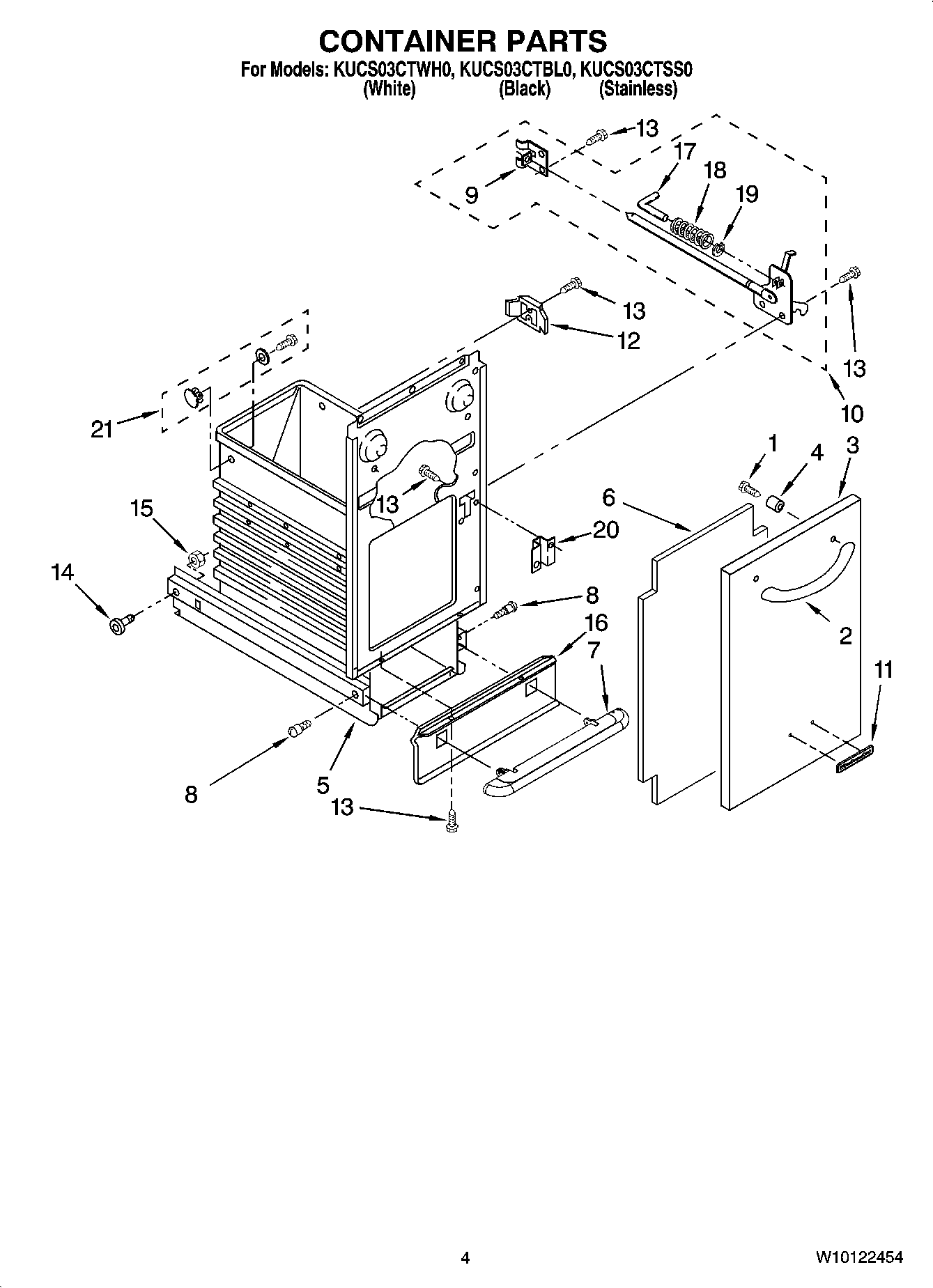

KUCS03CTBL0 04 – CONTAINER PARTS

Products

Position	Product
1	Screw
2	9872206B Whirlpool Compactor Handle
2	9872206W Whirlpool Handle Assembly
2	WP9872206S Whirlpool Handle
3	9872241W Whirlpool Control Panel
3	Panel, Container (Stainless)
3	Panel, Container (Black)
4	WP9871563 Whirlpool Compactor Spacer
5	WPW10451276 Whirlpool Compactor Container
6	Insulation, Panel
7	9871989W Whirlpool Compactor Foot Pedal Assembly
7	W11636605 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	W10021850 Whirlpool Dishwasher Nameplate
11	W10021860 Whirlpool Dishwasher Nameplate
11	W10021870 Whirlpool Nameplate
12	9871125 Whirlpool Compactor Actuator
13	WP489478 Whirlpool Refrigerator Screw
14	WP9871602 Whirlpool Compactor Bearing
15	WP776356 Whirlpool Compactor Nut
16	WP777328 Whirlpool Compactor Guard
16	W10917704 Whirlpool Compactor Guard
17	Pin
18	775736 Whirlpool Compactor Spring
19	Ring, “E“
20	775665 Whirlpool Compactor Plate Latch
21	RETAINER, BAG
