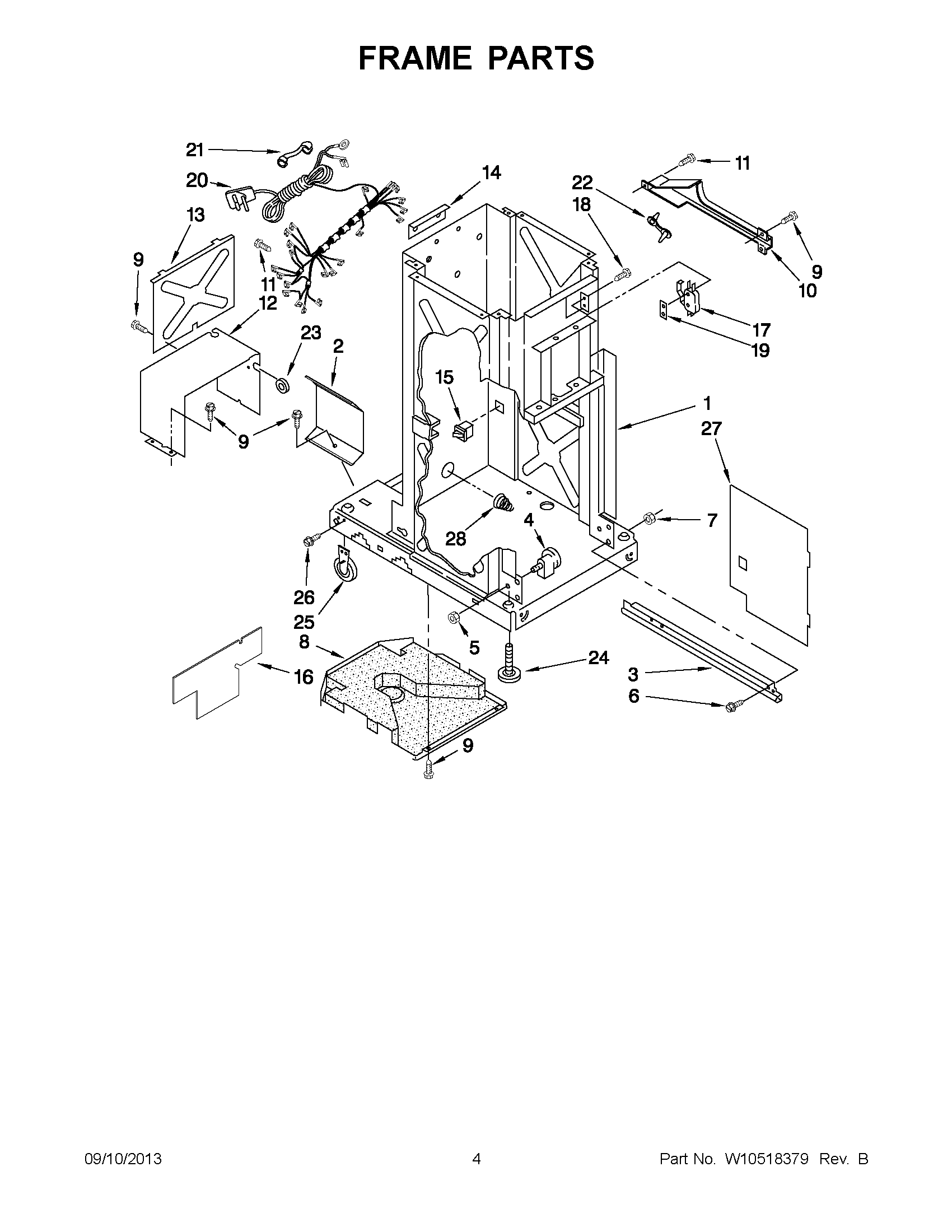

KUCS03CTBL2 03 – FRAME PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
29870867 Whirlpool Shield
3SLIDE
3WP9870975 Whirlpool Compactor Slide
4882688 Whirlpool Compactor Bearing
5WP776356 Whirlpool Compactor Nut
6WP486754 Whirlpool Compactor Screw
7NUT
8WP780437 Whirlpool Compactor Bottom Pan
9WP489478 Whirlpool Refrigerator Screw
104149659 Whirlpool Shield Assembly
11WPW10139210 Whirlpool Screw
12780434 Whirlpool Motor Cover
13Plate, Motor Cover
14Angle, Top Bracket
15WP4387911 Whirlpool Refrigerator Switch
16W11688705 Whirlpool Insulation
17WP777811 Whirlpool Compactor Directional Switch
18777849 Whirlpool Compactor Screw
19Plate, Nut
20W10279446 Whirlpool Wire Harness
21Bushing, Cord
22Clamp, Wire
23Grommet, Motor Cover
24WPW10001130 Whirlpool Leveling Leg
25W11023674 Whirlpool Compactor Leveling Wheel
26WP3351614 Whirlpool Screw
27WP9870444 Whirlpool Compactor Inner Panel
28WP777180 Whirlpool Compactor Spring
