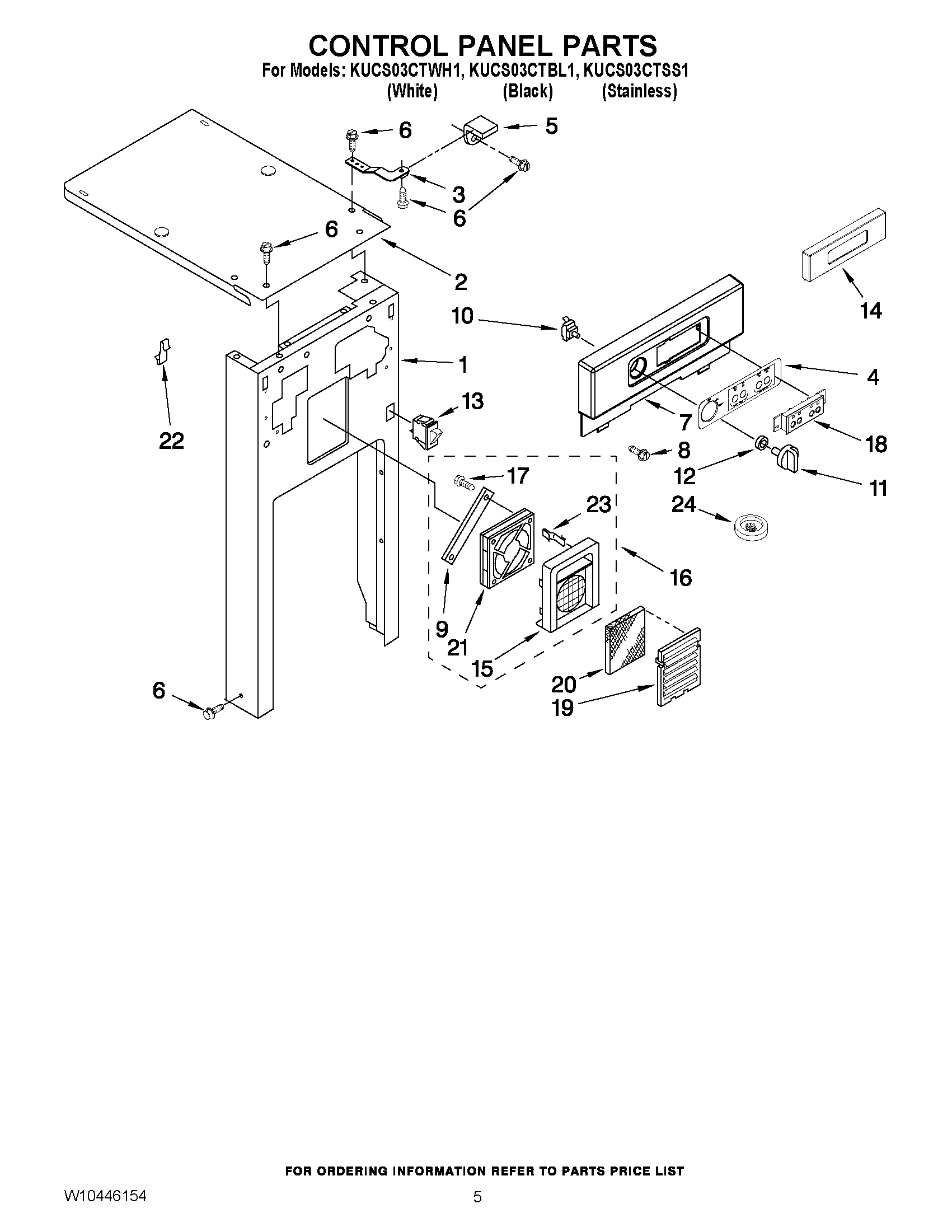

KUCS03CTSS1 05 – CONTROL PANEL PARTS

Products

Position	Product
1	9871073 Whirlpool Compactor Panel
1	Panel, Front Frame (Black)
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	9872325S Whirlpool Compactor Insert
4	9872325B Whirlpool Compactor Insert
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489478 Whirlpool Refrigerator Screw
7	9872144W Whirlpool Compactor Escutcheon
7	9872144B Whirlpool Compactor Escutcheon
8	Screw
9	4152703 Whirlpool Fan Strap
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	WP9871800 Whirlpool Compactor Switch Knob
11	WP9871799 Whirlpool Compactor Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	9871829 Whirlpool Trash Compactor Door Switch
14	9872162S Whirlpool Compactor Cover
15	9871893 Whirlpool Compactor Fan Filter
17	WP3351614 Whirlpool Screw
18	9872148 Whirlpool Compactor Off Switch
19	Cover, Air Freshener (White)
19	WP9871099 Whirlpool Air Freshener Cover
20	WP4151750 Whirlpool Charcoal Air Filter
23	4151897 Whirlpool Compactor Clip
24	W10540355 Whirlpool Deodorant
