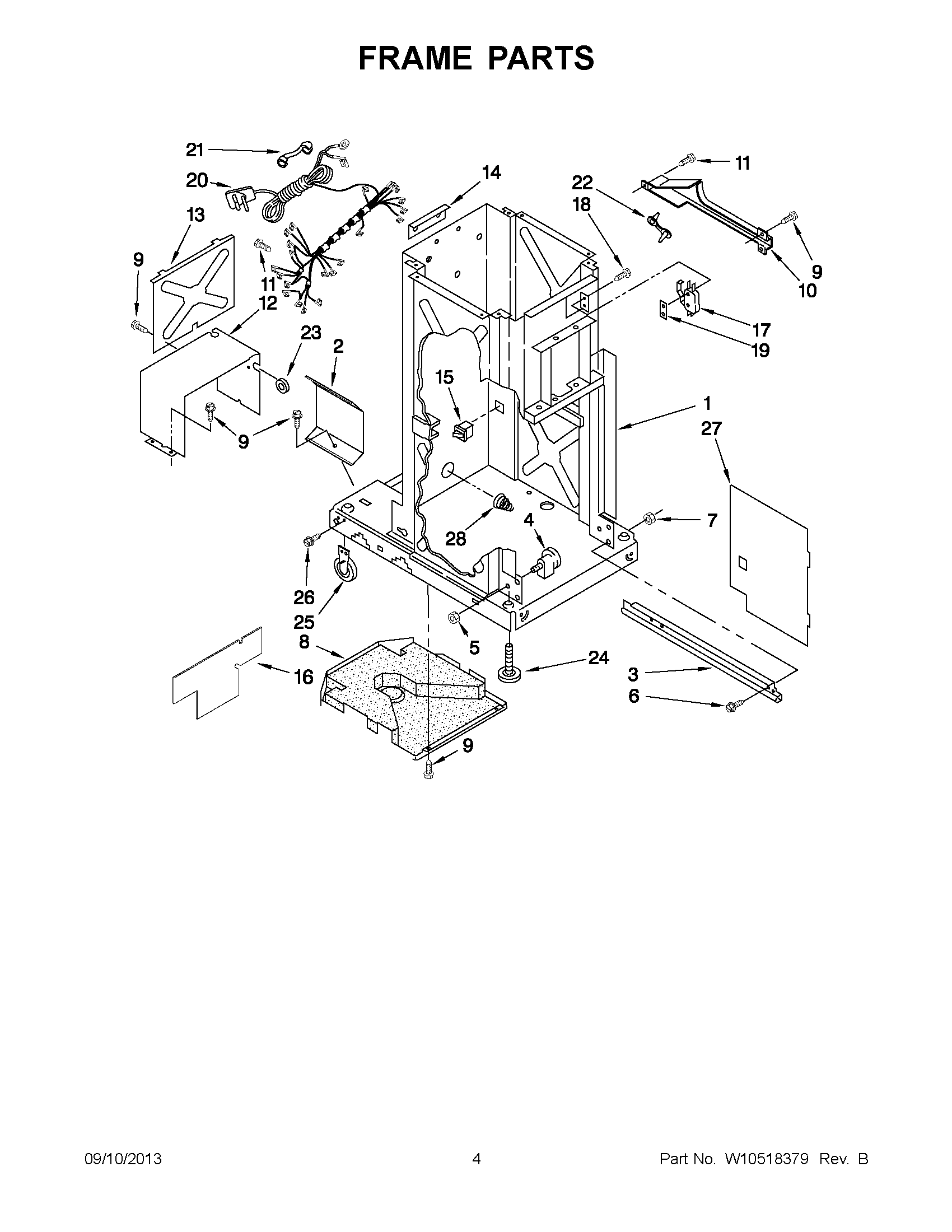

KUCS03CTWH2 03 – FRAME PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	9870867 Whirlpool Shield
3	SLIDE
3	WP9870975 Whirlpool Compactor Slide
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	NUT
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489478 Whirlpool Refrigerator Screw
10	4149659 Whirlpool Shield Assembly
11	WPW10139210 Whirlpool Screw
12	780434 Whirlpool Motor Cover
13	Plate, Motor Cover
14	Angle, Top Bracket
15	WP4387911 Whirlpool Refrigerator Switch
16	W11688705 Whirlpool Insulation
17	WP777811 Whirlpool Compactor Directional Switch
18	777849 Whirlpool Compactor Screw
19	Plate, Nut
20	W10279446 Whirlpool Wire Harness
21	Bushing, Cord
22	Clamp, Wire
23	Grommet, Motor Cover
24	WPW10001130 Whirlpool Leveling Leg
25	W11023674 Whirlpool Compactor Leveling Wheel
26	WP3351614 Whirlpool Screw
27	WP9870444 Whirlpool Compactor Inner Panel
28	WP777180 Whirlpool Compactor Spring
