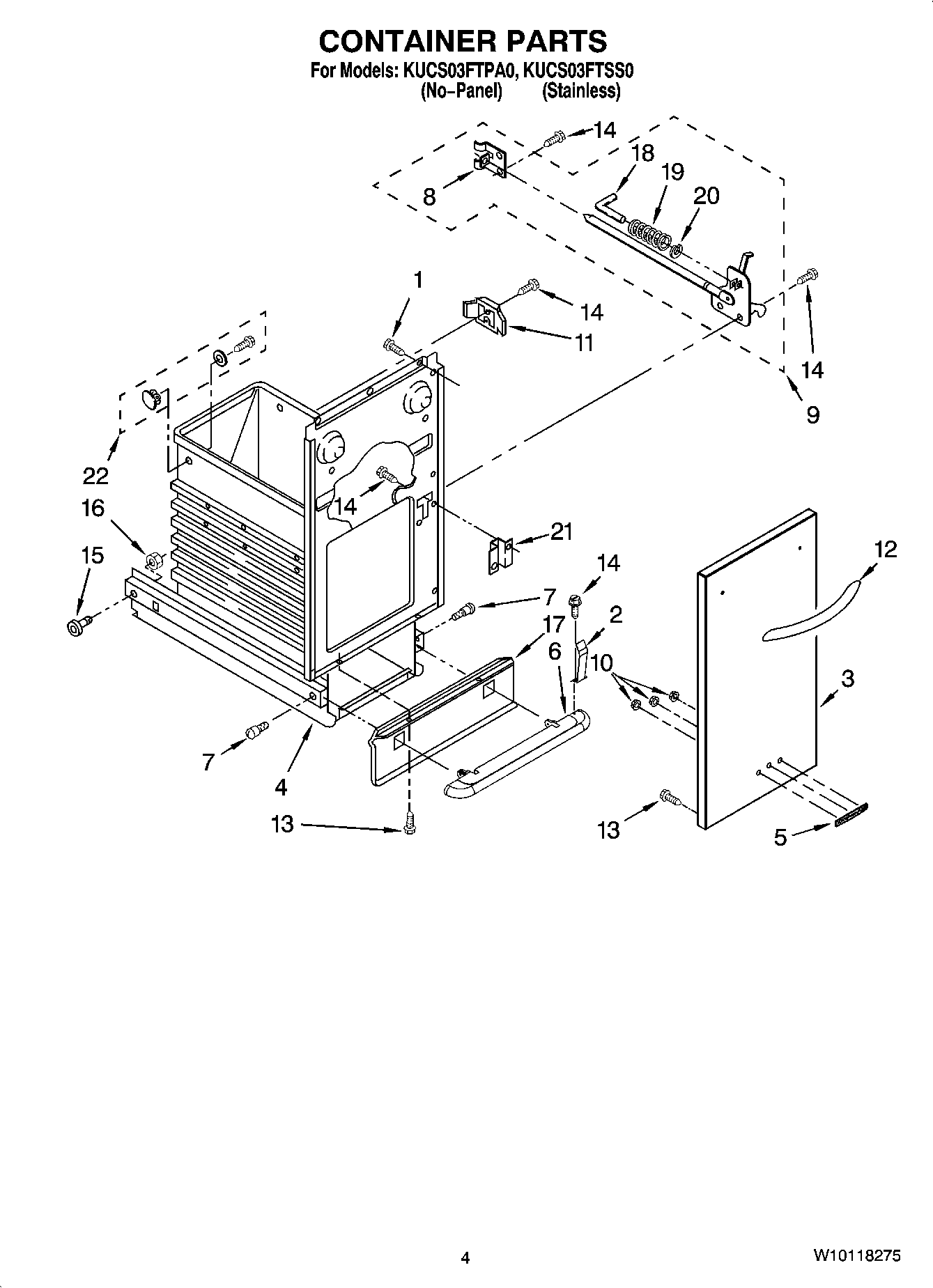

KUCS03FTPA0 04 – CONTAINER PARTS

KUCS03FTPA0 04 – CONTAINER PARTS

Written by

in

KUCS03FTPA0 04 – CONTAINER PARTS

Products

PositionProduct
1WPW10139210 Whirlpool Screw
2W10342596 Whirlpool Trash Compactor Actuator And Off Switch Kit
3W10714558 Whirlpool Compactor Panel
4WPW10451276 Whirlpool Compactor Container
5W10021850 Whirlpool Dishwasher Nameplate
6W11636605 Whirlpool Compactor Foot Pedal
7WP780263 Whirlpool Compactor Screw
8WP776395 Whirlpool Compactor Guide
9675379 Whirlpool Compactor Drawer Latch
10WP2004333 Whirlpool Refrigerator Nut
119871125 Whirlpool Compactor Actuator
12WP9872206S Whirlpool Handle
13WP3196175 Whirlpool Screw
14WP489478 Whirlpool Refrigerator Screw
15WP9871602 Whirlpool Compactor Bearing
16WP776356 Whirlpool Compactor Nut
17WP777328 Whirlpool Compactor Guard
18Pin
19775736 Whirlpool Compactor Spring
20Ring, “E“
21775665 Whirlpool Compactor Plate Latch
22RETAINER, BAG
