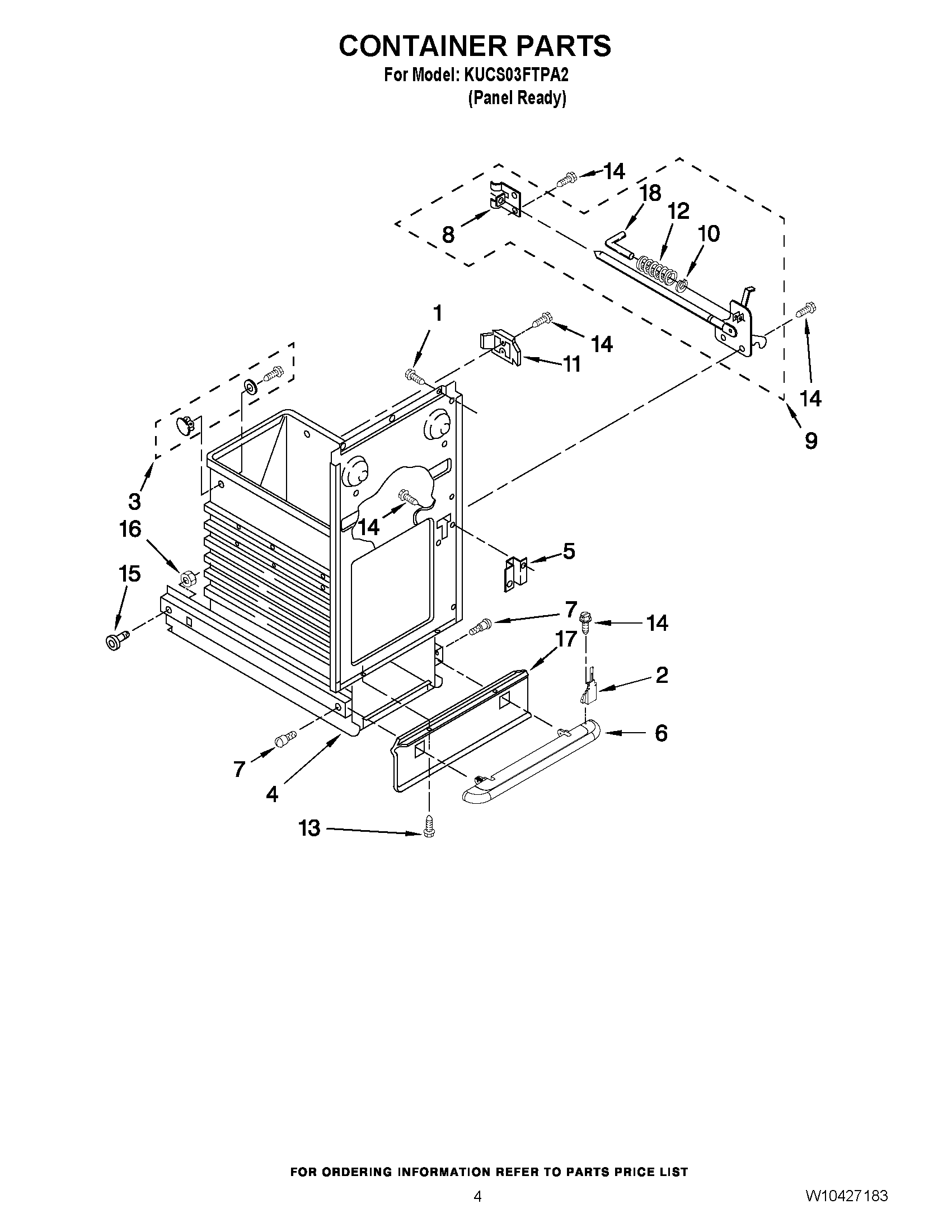

KUCS03FTPA2 04 – CONTAINER PARTS

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	WPW10451270 Whirlpool Compactor Actuator
3	RETAINER, BAG
4	WPW10451276 Whirlpool Compactor Container
5	775665 Whirlpool Compactor Plate Latch
6	W11636605 Whirlpool Compactor Foot Pedal
7	WP780263 Whirlpool Compactor Screw
8	WP776395 Whirlpool Compactor Guide
9	675379 Whirlpool Compactor Drawer Latch
10	Ring, “E“
11	9871125 Whirlpool Compactor Actuator
12	775736 Whirlpool Compactor Spring
13	WP3196175 Whirlpool Screw
14	WP489478 Whirlpool Refrigerator Screw
15	WP9871602 Whirlpool Compactor Bearing
16	WP776356 Whirlpool Compactor Nut
17	WP777328 Whirlpool Compactor Guard
18	Pin
