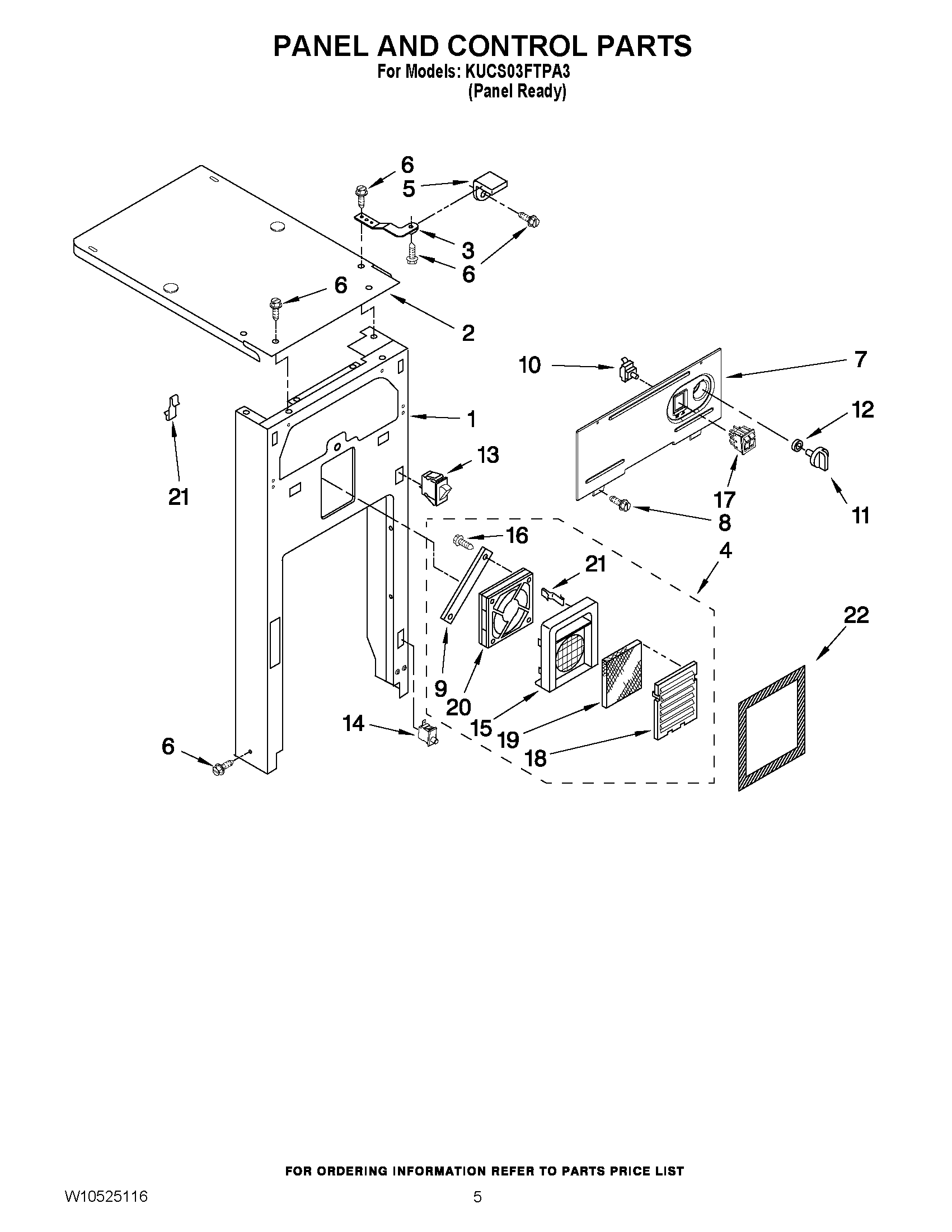

KUCS03FTPA3 05 – PANEL AND CONTROL PARTS

Products

Position	Product
1	W10242567 Whirlpool Compactor Panel
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489478 Whirlpool Refrigerator Screw
7	W11447162 Whirlpool Compactor Escutcheon
8	Screw
9	4152703 Whirlpool Fan Strap
10	WP9871971 Whirlpool Compactor Off Switch
11	WP9871920 Whirlpool Compactor Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	9871829 Whirlpool Trash Compactor Door Switch
14	WPW10242556 Whirlpool Compactor Off Switch
15	9871893 Whirlpool Compactor Fan Filter
16	WP3351614 Whirlpool Screw
17	W11032731 Whirlpool Compactor OFF Switch
18	WP9871099 Whirlpool Air Freshener Cover
19	WP4151750 Whirlpool Charcoal Air Filter
21	4151897 Whirlpool Compactor Clip
22	W10540355 Whirlpool Deodorant
