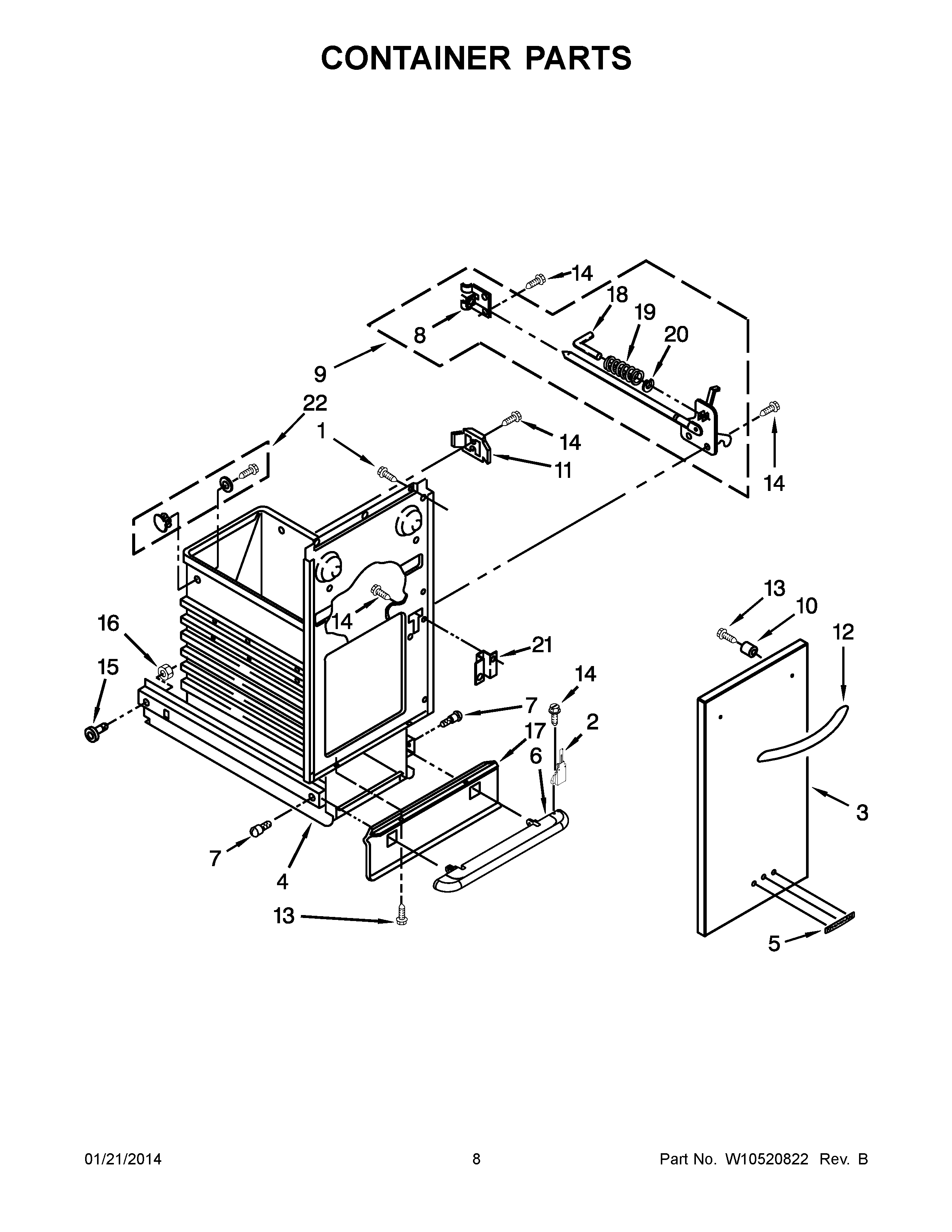

KUCS03FTSS3 05 – CONTAINER PARTS

KUCS03FTSS3 05 – CONTAINER PARTS

Written by

in

KUCS03FTSS3 05 – CONTAINER PARTS

Products

PositionProduct
1WPW10139210 Whirlpool Screw
2WPW10451270 Whirlpool Compactor Actuator
2W10451280 Whirlpool Compactor Actuator
3W10714559 Whirlpool Compactor Panel
3PANEL, CONTAINER FRONT (BLACK)
3W10714558 Whirlpool Compactor Panel
4WPW10451276 Whirlpool Compactor Container
5WPW10243393 Whirlpool Dishwasher Nameplate
5WPW10243392 Whirlpool Dishwasher Nameplate
5WPW10243391 Whirlpool Refrigerator Nameplate
69871989W Whirlpool Compactor Foot Pedal Assembly
6W11636605 Whirlpool Compactor Foot Pedal
7WP780263 Whirlpool Compactor Screw
8WP776395 Whirlpool Compactor Guide
9675379 Whirlpool Compactor Drawer Latch
10WP9871563 Whirlpool Compactor Spacer
119871125 Whirlpool Compactor Actuator
129872206W Whirlpool Handle Assembly
12WP9872206S Whirlpool Handle
129872206B Whirlpool Compactor Handle
13W10582604 Whirlpool Compactor Screw
14WP489478 Whirlpool Refrigerator Screw
15WP9871602 Whirlpool Compactor Bearing
16WP776356 Whirlpool Compactor Nut
17W11696574 Whirlpool Trash Compactor Guard
17W10917704 Whirlpool Compactor Guard
18Pin
19775736 Whirlpool Compactor Spring
20Ring, “E“
21775665 Whirlpool Compactor Plate Latch
22RETAINER, BAG
