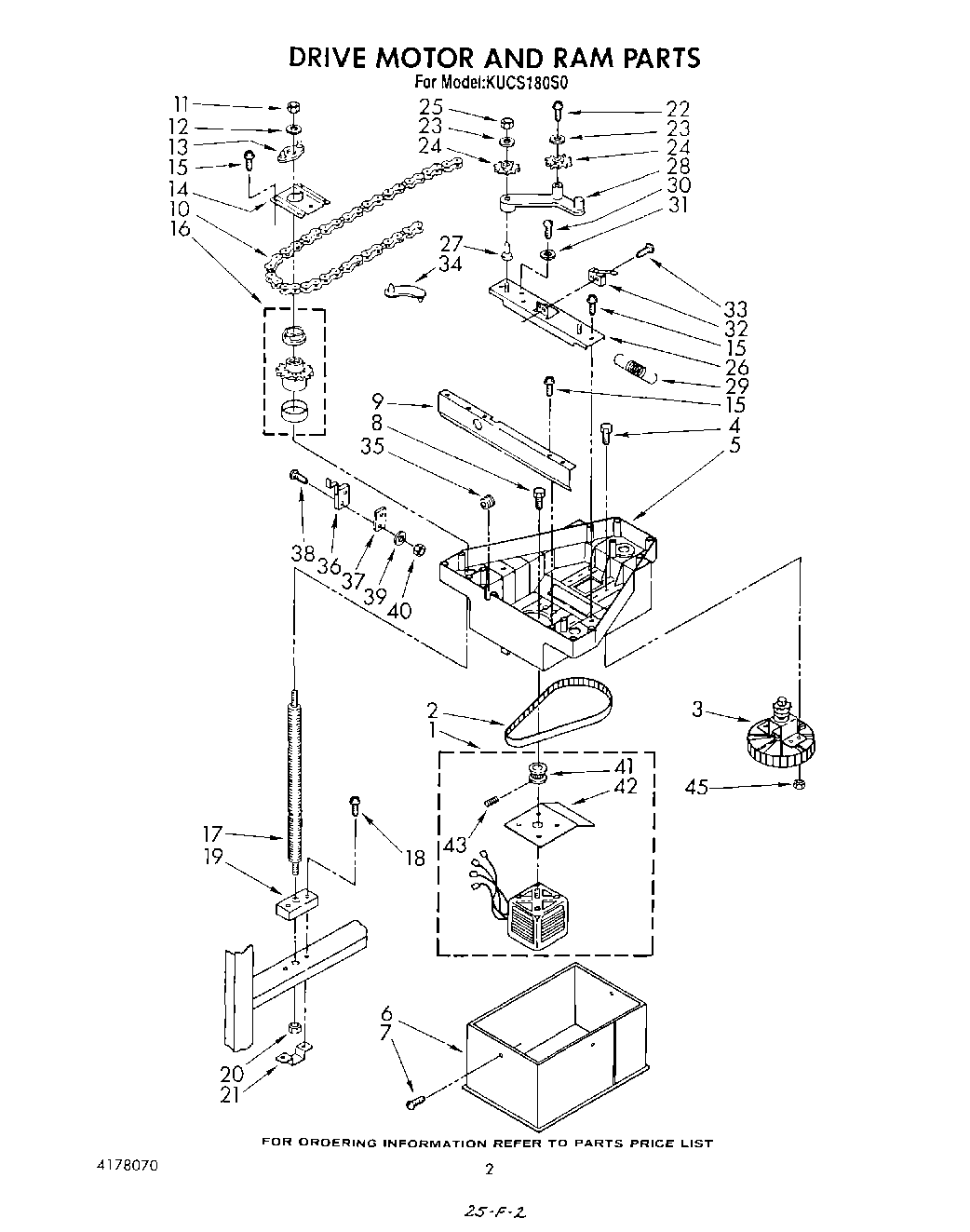

KUCS180S0 02 – DRIVE MOTOR AND RAM , LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Built-In Application)
	Diagram, Wiring
	Instructions, Installation (Front Panel)
	List, Repair Parts
1	Motor, Drive
2	Belt, Drive
3	Sprocket, Driven
4	Screw, 1/4 20 x 2“ (4)
5	Ram, Top
6	Ram, Bottom
7	Screw, 10-24 x 3/8
8	Screw, 1/4 20 x 2“ (4)
9	Brace, Top
10	Chain, Drive
11	Nut, 5/16-18 (3)
12	WP3388703 Whirlpool Washer
13	Stop, Ram Upper
14	Plate, Powerscrew Cover (Right Side)
14	Plate, Powerscrew Cover (Left Side)
14	Plate, Powerscrew Cover (Rear)
15	Screw, 10-24 x 1/2
16	Sprocket, Powerscrew (3)
17	Powerscrew (3)
18	Screw, 1/4-20 x 7/16
19	Stop, Ram Lower (3)
20	Nut (3)
21	Retainer, Nut (3)
22	Screw
23	W11089212 Whirlpool Washer
24	Sprocket, Idler (4)
25	WP776338 Whirlpool Compactor Nut
26	Plate, Idler
27	Bushing (2)
28	Arm, Idler (Right Side)
28	Arm, Idler (Left Side)
29	Spring, Chain Tension
30	Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Switch, Directional
33	Screw 6-32 X 7/8
34	Retainer, Wire
35	Grommet, Wiring
36	Switch, Limit
37	Baffle
38	Screw, 4-40 x 5/8
39	Washer, Lock
40	Nut, 6-32 (4)
41	Gear, Drive
42	Deflector, Debris
43	Pin, Gear
45	Nut, 1/4-20 (4)
