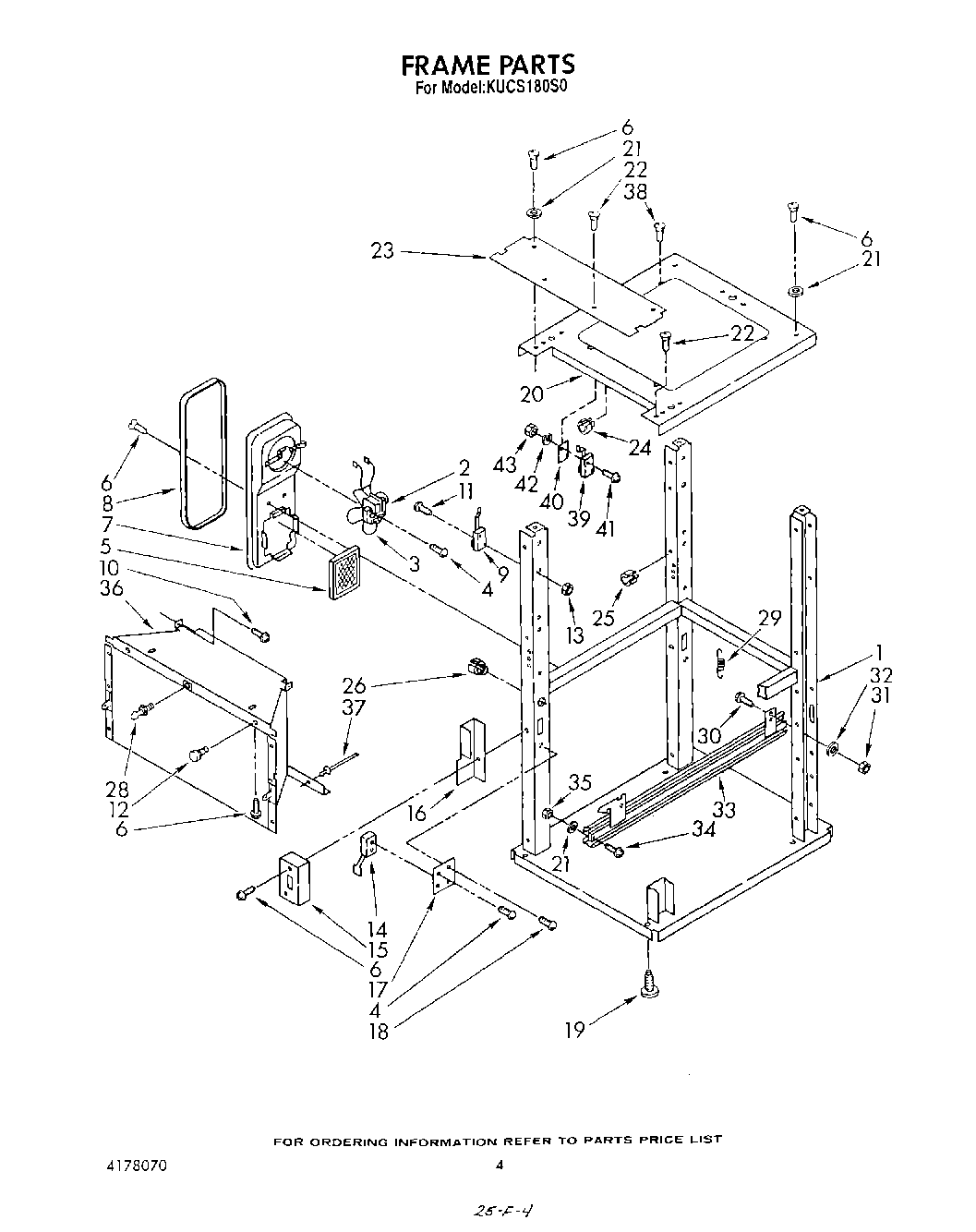

| 1 | Frame (Not a Serviceable Part) |
| 2 | Motor, Fan |
| 3 | Blade, Fan |
| 4 | Screw 6-32 X 7/8 |
| 5 | Filter, Air |
| 6 | Screw |
| 7 | Housing, Filter |
| 8 | Gasket, Housing |
| 9 | Switch, Ram Stop |
| 10 | Screw, 10-24 x 1/2 |
| 11 | Screw, 6-32 x 1`` (2) |
| 12 | Bumper, Door (2) |
| 13 | Nut, 6-32 (4) |
| 14 | Switch, Drawer |
| 15 | Block |
| 16 | Barrier |
| 17 | Bracket |
| 18 | WP3390631 Whirlpool Screw |
| 19 | Foot, leveling (4) |
| 20 | Plate, Frame Cover |
| 21 | Lock Washer No.10 Ext. Shake- proof |
| 22 | Screw, 6 x 3/8 (2) |
| 23 | Plate, Top Front |
| 24 | Bushing |
| 25 | Strain Releif |
| 26 | WPL 4159031 |
| 28 | 4162660 Whirlpool Compactor Door Strike |
| 29 | Spring, Track (4) |
| 30 | Screw, 1/4-20 x 3/8 (4) |
| 31 | Nut, 1/4-20 (4) |
| 32 | Washer (4) |
| 33 | 4162448 Whirlpool Compactor Slide Kit |
| 34 | Screw, 10-32 x 3/8 (2) |
| 35 | WP776338 Whirlpool Compactor Nut |
| 36 | Bin, Litter |
| 37 | Rivet |
| 38 | Screw, No. 6 x 3/8 |
| 39 | Switch, Limit |
| 40 | Baffle |
| 41 | Screw, 4-40 x 5/8 |
| 42 | Washer, Lock |
| 43 | Nut |
