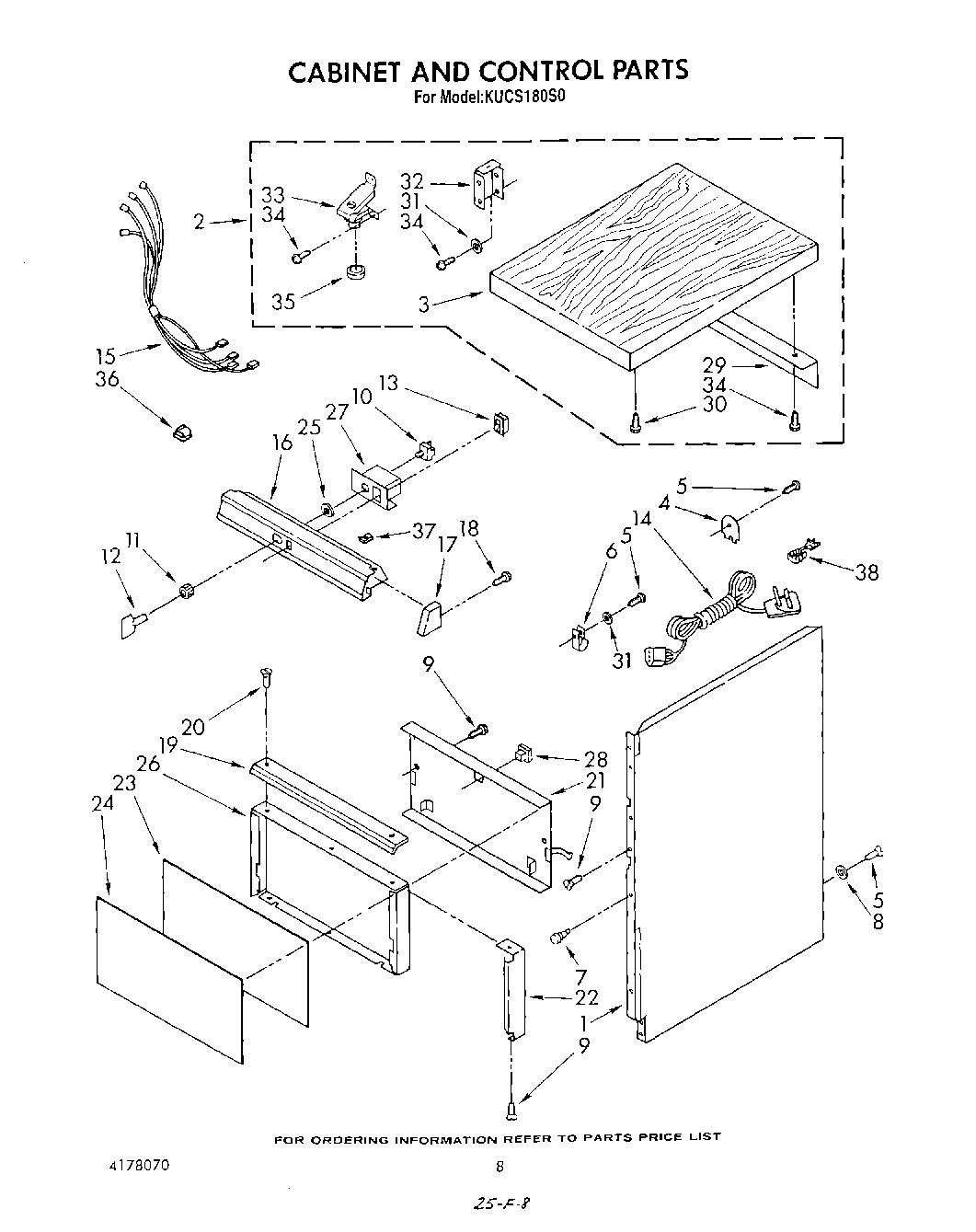

KUCS180S0 05 – CABINET AND CONTROL

Products

Position	Product
1	Panel, Cabinet (Left Side)
1	Panel, Cabinet (Right Side)
1	Panel, Cabinet (Back)
2	Freestanding, Conversion Kit
3	Top, Wood
4	Plate,
6	Clamp, Wire
7	Bumper, Door (2)
9	WP4159387 Whirlpool Compactor Screw
10	Switch, Rotary
11	Nut, Switch
12	WP241877 Whirlpool Screw
13	Switch, Rocker
14	Cord, Power
15	Harness, Wiring (Motor Drive To Directional Switch)
15	Harness, Wiring (Interlock To Bypass)
15	Harness, Wiring (Power Distribution)
15	Harness, Wiring (Rocker Switch To Fan Motor)
15	Harness, Wiring (Ram Switch To Key)
15	Harness, Wiring (Main Harness)
16	Escutcheon, Control
17	End Cap (Right Side)
17	End Cap (Left Side)
18	Screw, 4 x 1/4 (4)
19	Handle, Container
20	Screw, (2)
21	Panel, Litter Bin Rear
22	Trim, Litter Bin (Right Side)
22	Trim, Litter Bin (Left Side)
22	Trim, Front (Bottom)
23	Filler, Bin Panel
24	Insert, Door (Almond & White)
24	Insert, Door (Harvest Wheat & Onyx Black)
25	Washer
26	Top, Bin
27	Barrier, Switch
28	4162660 Whirlpool Compactor Door Strike
29	Bracket, Wood top
30	681615 Whirlpool Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Block, Leveling Leg (Right Side)
32	Block, Leveling Leg (Left Side)
33	Bracket, Foot (4)
34	Screw
35	Clip, Foot (4)
36	Clip, C
37	WPL 4162903
38	WPL 4159026
